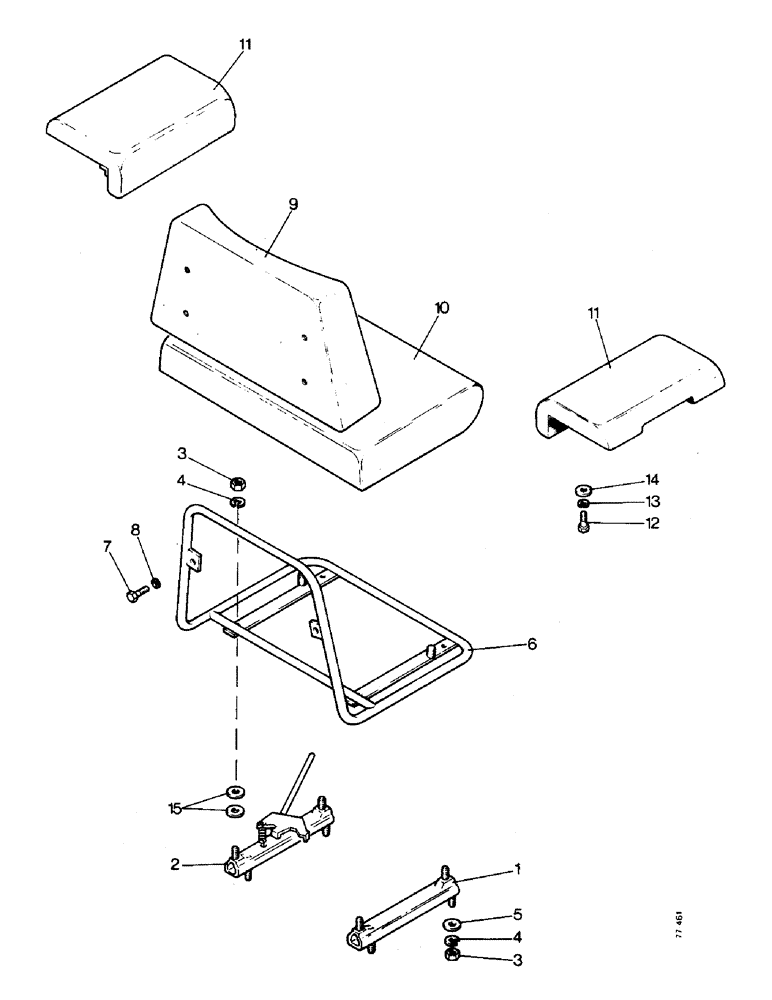

Запчасти Case 850 (G09-1) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D40238

SLIDE

- seat

1шт.

2

D40237

SLIDE

AND LATCH - seat

1шт.

3

25-115

NUT,5/16"-24, G5

8шт.

4

92-5

LOCK WASHER,5/16"

8шт.

5

195-21

WASHER,5/16"

12шт.

6

D36279

SEAT

FRAME - seat

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D44169

CUSHION

- seat, back

1шт.

10

D35226

SEAT

CUSHION - seat

1шт.

11

D36317

CUSHION

- arm and hip

2шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

195-18

WASHER,1/4"

- 1/4 in

4шт.

ref

Part No.

English

1шт.

D15265

SET OF 2 BELTS

KIT - seat belt

1шт.

D44411

SEAT

BELT - seat

1шт.

D50522

HOOK

- belt, seat

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Seat belt Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

195-21

WASHER,5/16"

Seat belt 5/16"

2шт.

92-5

LOCK WASHER,5/16"

seat belt 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

Seat belt 5/16"-18, G5

2шт.
