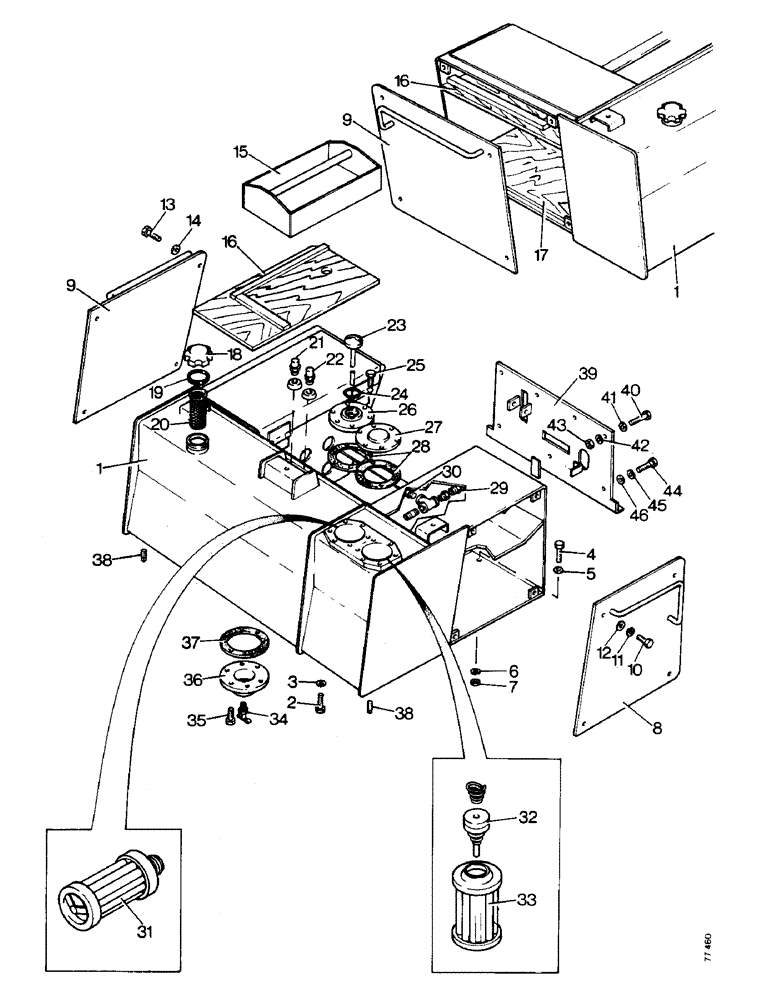

Запчасти Case 850 (G08-1) - SEAT AND TANK (05) - UPPERSTRUCTURE CHASSIS

1

E81223

SEAT AND TANK - crawler

1шт.

2

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

6шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

4

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

6шт.

5

195-41

WASHER,5/8"

6шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

25-1010

NUT,5/8"-11, G5

6шт.

8

D39636

PLATE

PANEL - side right hand, used without cab but with 3 spool valve

1шт.

D52037

PANEL - side right hand, used without cab but with 4 spool valve

1шт.

E89223

PANEL, SIDE

PANEL - side right hand, used for Loader with cab

1шт.

E89290

PANEL

- side right hand, used for Dozer with cab

1шт.

9

E89227

PANEL - side left hand, used without cab

1шт.

E81657

PANEL - side left hand, used for Loader with cab

1шт.

E81672

PANEL - side left hand, used for Dozer with cab

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

195-33

WASHER,1/2"

- 1/2 in

4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

195-33

WASHER,1/2"

- 1/2 in

4шт.

15

D50765

TOOL

TRAY - tool

1шт.

16

E89089

SPARE PART

BOARD - tray support

1шт.

17

E88754

BOARD - battery

1шт.

18

D31747

COVER

CAP - fuel tank

1шт.

19

D34975

GASKET

- fuel cap

1шт.

20

D36346

STRAINER ELEMENT

STRAINER - fuel

1шт.

21

D33027

BREATHER

VALVE - air inlet, fuel tank

1шт.

22

D33028

VALVE

- relief, fuel tank

1шт.

23

D39640

DIPSTICK

- hydraulic, oil

1шт.

24

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

'O'RING - dipstick

1шт.

25

D50550

BOLT

- special, self locking

12шт.

26

E89091

COVER - hydraulic tank

1шт.

27

E89090

COVER - hydraulic tank

1шт.

28

E89092

GASKET

- cover

2шт.

29

R15536

VALVE

- relief, hydraulic tank

1шт.

30

R15538

VALVE

- air inlet, hydraulic tank

1шт.

31

D33557

FILTER, ELEMENT

FILTER - hydraulic tank, suction line

1шт.

32

L51620

VALVE

- pressure relief

1шт.

33

D35995

STRAINER ELEMENT

FILTER - hydraulic tank, return line

1шт.

34

217-81

VALVE

DRAIN COCK - fuel tank

1шт.

35

D50550

BOLT

- special, self locking

6шт.

36

D34979

COVER

- fuel tank

1шт.

37

D50547

GASKET,1.52mm Thk

- cover

1шт.

38

221-15

PLUG,Sq Hd, 3/4"-14

- 3/4 NPT

2шт.

39

D52290

PLATE - heel

1шт.

40

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

41

195-33

WASHER,1/2"

- 1/2 in

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

25-108

NUT,1/2"-13, G5

- 1/2 UNC

2шт.

44

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

45

92-8

LOCK WASHER,1/2"

2шт.

46

25-108

NUT,1/2"-13, G5

- 1/2 UNC

2шт.

ref

Part No.

English

1шт.

321-2981

DECAL

PLATE - serial number, not shown

1шт.

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

- drive, serial number plate

2шт.
