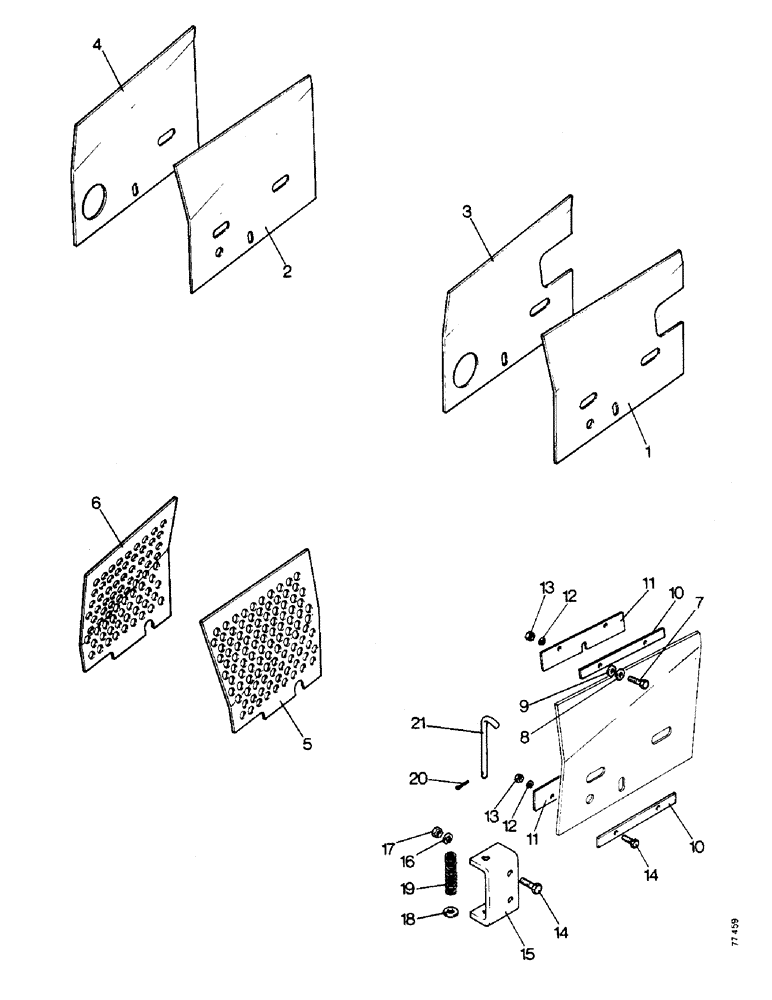

Запчасти Case 850 (G07-1) - SIDE SHIELDS AND BRUSH GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

E81075

PANEL, SIDE

SHIELD - engine side, right hand, Dozer

1шт.

E81442

+ SHIELD - engine side, right hand, Dozer for France only

1шт.

2

E81077

PANEL

SHEILD - engine side, right hand, Loader and Drawbar

1шт.

E81440

+ SHIELD - engine side, right hand, Loader for France only

1шт.

3

E81076

PANEL, SIDE

SHIELD - engine side, left hand, Dozer

1шт.

E81441

+ SHIELD - engine side, left hand, Dozer for France only

1шт.

4

E81078

SHIELD

- engine side, left hand, Loader and Drawbar

1шт.

E81439

+ SHIELD - engine side, left hand, Loader for France only

1шт.

5

D41342

GUARD

- brush, engine right hand

1шт.

6

D41341

GUARD

- brush, engine left hand

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

8

195-25

WASHER,3/8"

- 3/8 in

8шт.

9

D44499

SHIM

1шт.

10

D41343

BUSHING

SPACER - retainer

8шт.

11

D41344

RETAINER

- shield or guard

8шт.

12

92-6

LOCK WASHER,3/8"

16шт.

13

25-106

NUT,3/8"-16, G5

- 3/8 UNC

16шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

15

D41345

BRACKET

- latch mounting

4шт.

16

92-6

LOCK WASHER,3/8"

8шт.

17

25-106

NUT,3/8"-16, G5

- 3/8 UNC

8шт.

18

195-33

WASHER,1/2"

- 1/2 in

4шт.

19

A31171

SPRING

- latch

4шт.

20

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

4шт.

21

D41346

LATCH

- shield or guard

4шт.
