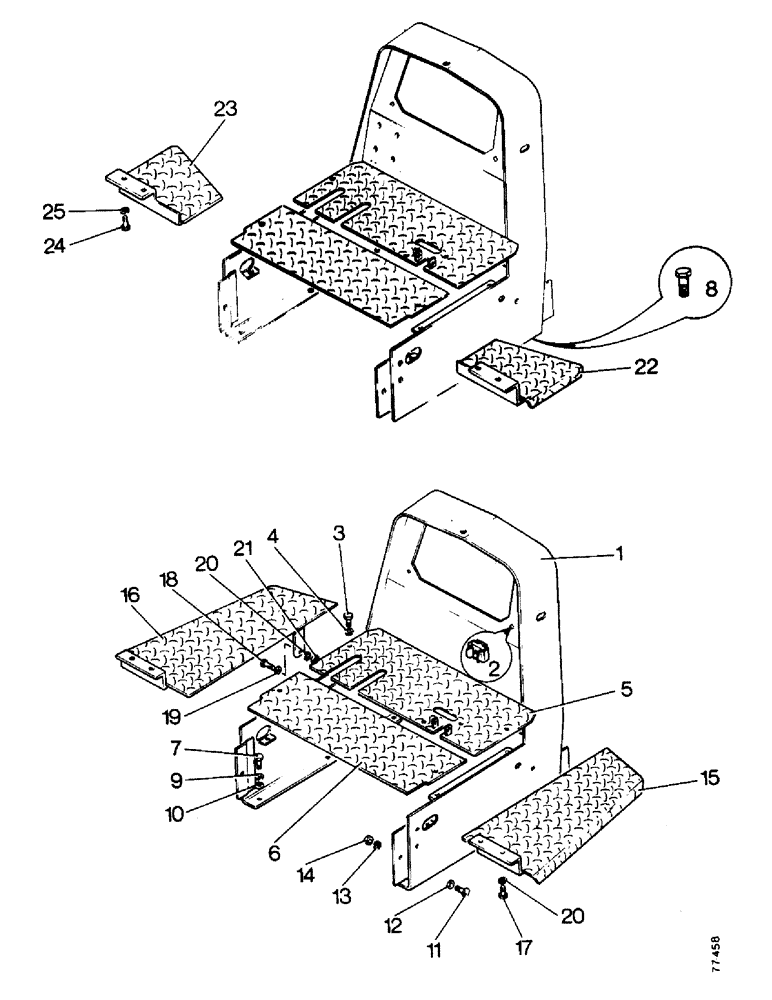

Запчасти Case 850 (G06-1) - COWL, FLOOR PLATES AND STEP PLATES (05) - UPPERSTRUCTURE CHASSIS

1

D47745

COWL

1шт.

2

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

4шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

R24018

FLOOR PLATE - front

1шт.

E81404

+ FLOOR PLATE - front, for France only

1шт.

6

D39879

FLOOR PLATE - rear

1шт.

E89629

+ FLOOR PLATE - rear, for France only

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cowl mounting centre and rear holes Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 UNC x 1.3/4 in, cowl mounting front holes

2шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

195-33

WASHER,1/2"

- 1/2 in

6шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

195-33

WASHER,1/2"

- 1/2 in

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- 1/2 UNC

2шт.

15

D39618

PLATE - step, right hand Dozer and Drawbar

1шт.

16

D39617

X

PLATE - step, left hand Dozer and Drawbar

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 UNC x 1.3/4 in

2шт.

19

195-33

WASHER,1/2"

- 1/2 in

2шт.

20

92-8

LOCK WASHER,1/2"

6шт.

21

25-108

NUT,1/2"-13, G5

- 1/2 UNC

2шт.

22

D41263

PLATE - step, right hand Loader

1шт.

23

D41264

PLATE - step, left hand Loader

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.
