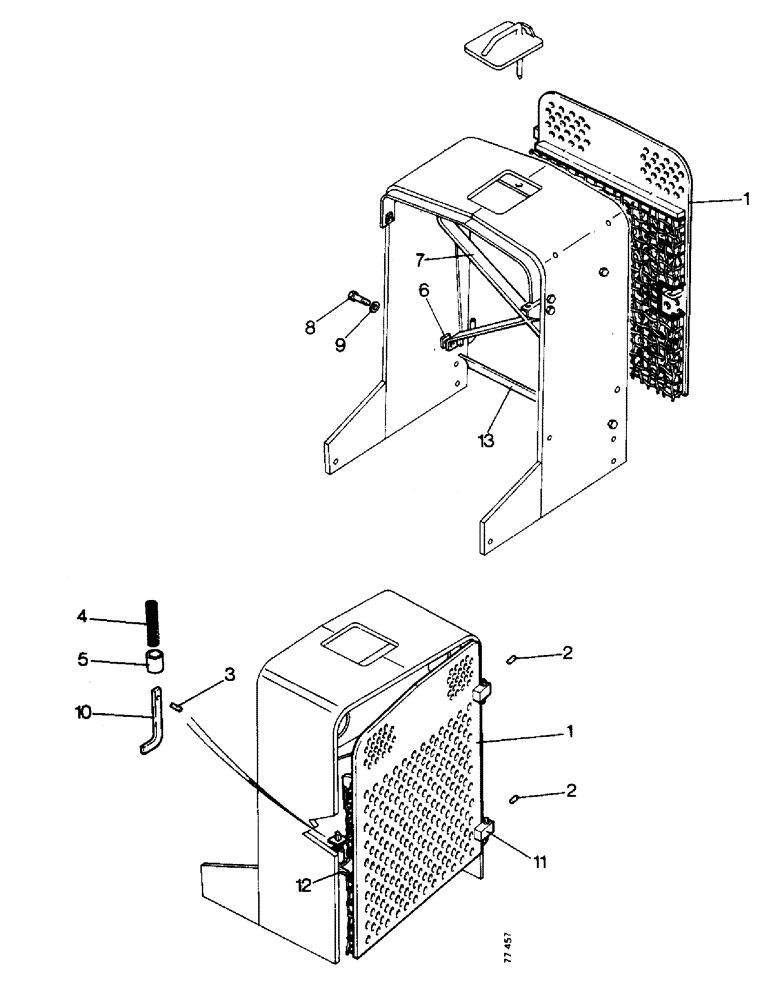

Запчасти Case 850 (G05-1) - HEAVY DUTY GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D48217

GRILLE - heavy duty

1шт.

2

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

3

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

4

D47957

SPRING - latch

1шт.

5

B18314

SPACER - spring, latch 1" Pipe x 1 1/2"

1шт.

6

D47958

SPACER - cross brace

1шт.

7

D41112

BRACE

- cross

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 UNC x 1.3/4 in

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

D47962

BAR - grille lock

1шт.

11

D47959

HANGER - grille

2шт.

12

D47961

BRACKET - grille latch

1шт.

13

D48218

BRACE - grille backup

1шт.
