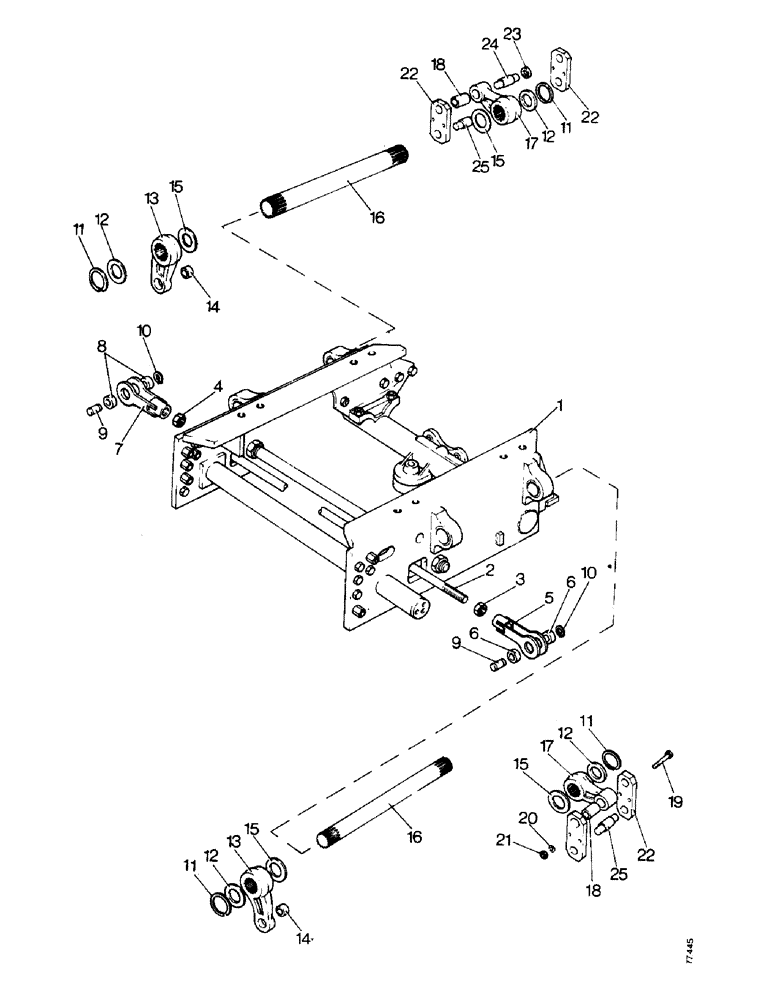

Запчасти Case 850 (G03-1) - TORSION BAR AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D39983

MAIN FRAME ASSEMBLY - crawler, see Figure G02-1

1шт.

2

D43397

ROD

- equaliser

1шт.

3

25-1120

NUT,1 1/4"-12, G5

- 1.1/4 UNF, right hand thread

1шт.

4

129-332

SPECIAL NUT,1 1/4"-12, G5, LH

1шт.

5

D42949

YOKE

- equaliser, right hand

1шт.

6

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- yoke

2шт.

7

D42948

YOKE

- equaliser, left hand

1шт.

8

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- yoke

2шт.

9

D42944

PIN

- yoke

2шт.

10

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

11

R18674

RING

- lever retaining

4шт.

12

74298

WASHER

SHIM - equaliser lever, 7/64 in

1шт.

13

D34029

LEVER

- equaliser, rear

2шт.

14

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- lever

1шт.

15

R18559

SHIM,.062" Thk

Equalizer .062" Thk

1шт.

16

D42883

BAR

- torsion

2шт.

17

D39628

LEVER

- equaliser, front

2шт.

18

D39629

BUSHING

- lever

1шт.

19

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- 3/8 UNC

4шт.

22

D39633

LINK

- equaliser lever to track frame

4шт.

23

CASD39632

WASHER

SPACER - link and front equaliser lever

4шт.

24

D39631

PIN

- front equaliser lever

1шт.

25

D35848

PIN

- link to track frame

2шт.
