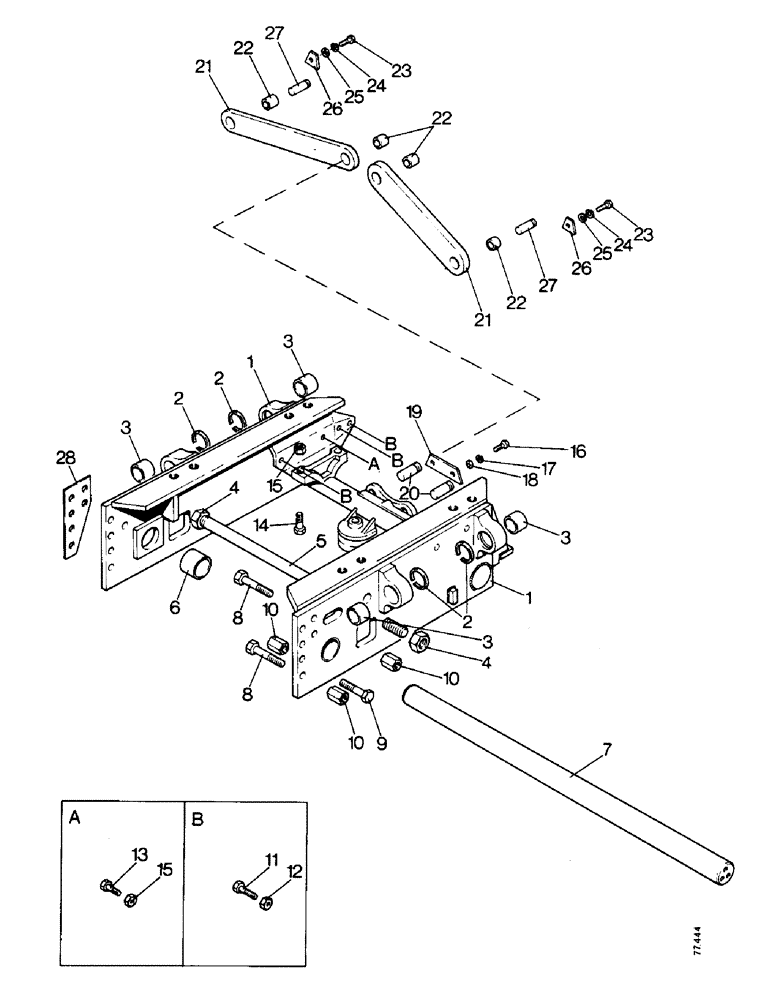

Запчасти Case 850 (G02-1) - MAIN FRAME AND GUIDE LEVERS (05) - UPPERSTRUCTURE CHASSIS

1

D39983

MAIN FRAME ASSEMBLY - crawler

1шт.

2

R20786

RING

- snap

4шт.

3

70091

BUSHING

- frame

4шт.

4

25-1124

NUT,1 1/2"-12, G5

- 1.1/2 UNF

4шт.

5

R21857

ROD

- compression

1шт.

6

D32333

BUSHING

- main frame, side plate

2шт.

7

D39994

SHAFT

- pivot

1шт.

8

D52026

BOLT

- special, body fit

4шт.

9

13-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- 1 UNC x 1.1/4 in

8шт.

10

131-659

NUT,1"-8, GB

NUT - lock, 1 UNC

12шт.

11

D30593

BOLT

- 7/8 UNC x 2 in, body fit

6шт.

12

230-41114

LOCK NUT,7/8"-9, GA

NUT - lock, 7/8 UNC

6шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

14

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

15

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4 UNC

6шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

195-33

WASHER,1/2"

- 1/2 in

2шт.

19

D39926

PLATE

- pin retaining

1шт.

20

D42090

PIN

- guide lever

2шт.

21

R19203

ARM

LEVER - guide

2шт.

22

D36473

BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L

- lever

4шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

195-33

WASHER,1/2"

- 1/2 in

2шт.

26

D30391

PLATE

- pin retaining

2шт.

27

D42090

PIN

- guide lever

2шт.

28

D44179

SHIM,.0598" Thk

(16 gauge) .0598" Thk

1шт.

D44180

SHIM,.0299" Thk

(22 gauge) .0299" Thk

1шт.
