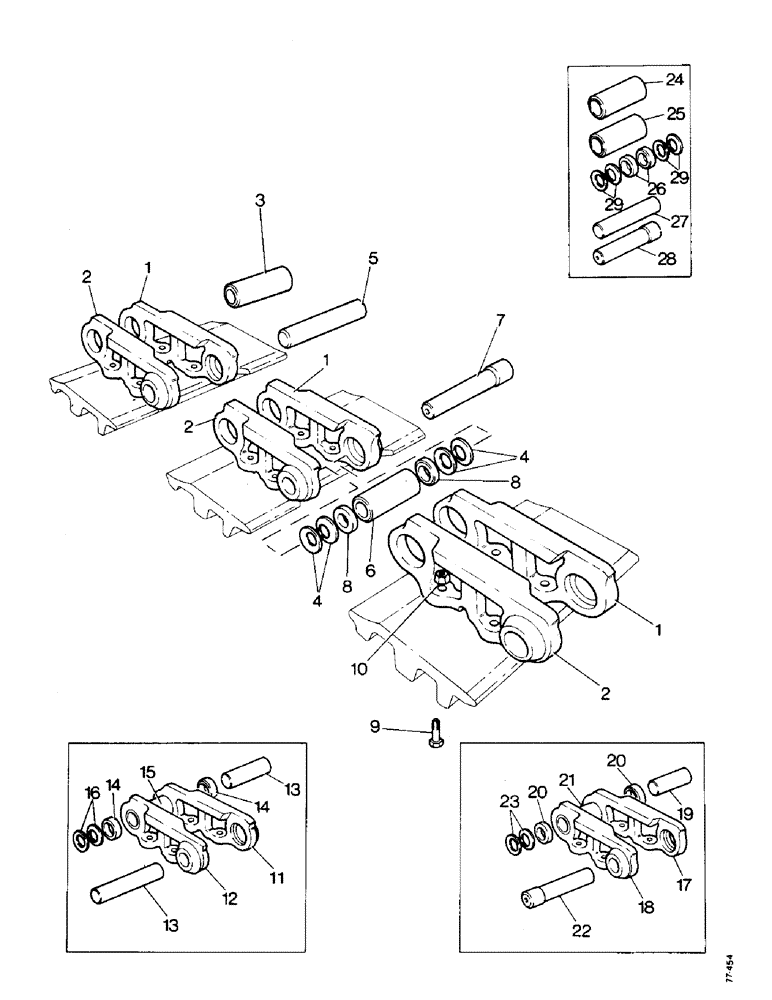

Запчасти Case 850 (F09-1) - TRACK CHAIN - 6 ROLLER (04) - UNDERCARRIAGE

D49003

CHAIN (AG)

CHAIN ASSEMBLY - 39 unit, sealed track

2шт.

1

D31710

LINK

- track, right hand, order D45348 kit

39шт.

2

D31709

LINK

- track, left hand, order D45348 kit

39шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long

38шт.

4

D45076

BELLEVILLE SPRING

SEAL - washer

156шт.

5

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

38шт.

D32164

PIN

- track, 0.003 in oversize

38шт.

6

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

7

D36511

PIN

- track, master

1шт.

8

D45272

BUSHING

- spacer

2шт.

9

E88219

BOLT

- special

312шт.

10

R17415

LOCK NUT

- lock, special

312шт.

ref

Part No.

English

1шт.

D45348

KIT

- track chain unit, sealed track

76шт.

11

D31710

LINK

- track, right hand, chain unit kit

1шт.

12

D31709

LINK

- track, left hand, chain unit kit

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

14

D45272

BUSHING

- spacer, track chain unit kit

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

16

D45076

BELLEVILLE SPRING

SEAL - washer, track chain unit kit

8шт.

ref

Part No.

English

1шт.

D45350

LINK

KIT - master chain unit, sealed track

4шт.

17

D31710

LINK

- track, right hand, master chain unit kit

1шт.

18

D31709

LINK

- track, left hand, master chain unit kit

1шт.

19

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

20

D45272

BUSHING

- spacer, master chain unit kit

2шт.

21

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

22

D36511

PIN

- track, master, chain unit kit

1шт.

23

D45076

BELLEVILLE SPRING

SEAL - washer, master chain unit kit

8шт.

ref

Part No.

English

1шт.

D45349

KIT

- pin and bushing, sealed track

1шт.

24

R45075

BUSHING - track, long, pin kit

76шт.

25

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

26

D45272

BUSHING

- spacer, pin kit

8шт.

27

D32164

PIN

- track, 0.003 in oversize, bushing kit

76шт.

28

D43541

PIN

- track, master 0.003 in oversize, bushing kit

4шт.

29

D45076

BELLEVILLE SPRING

SEAL - washer, pin & bushing kit

320шт.
