Артикул
Название
Примечание
Количество

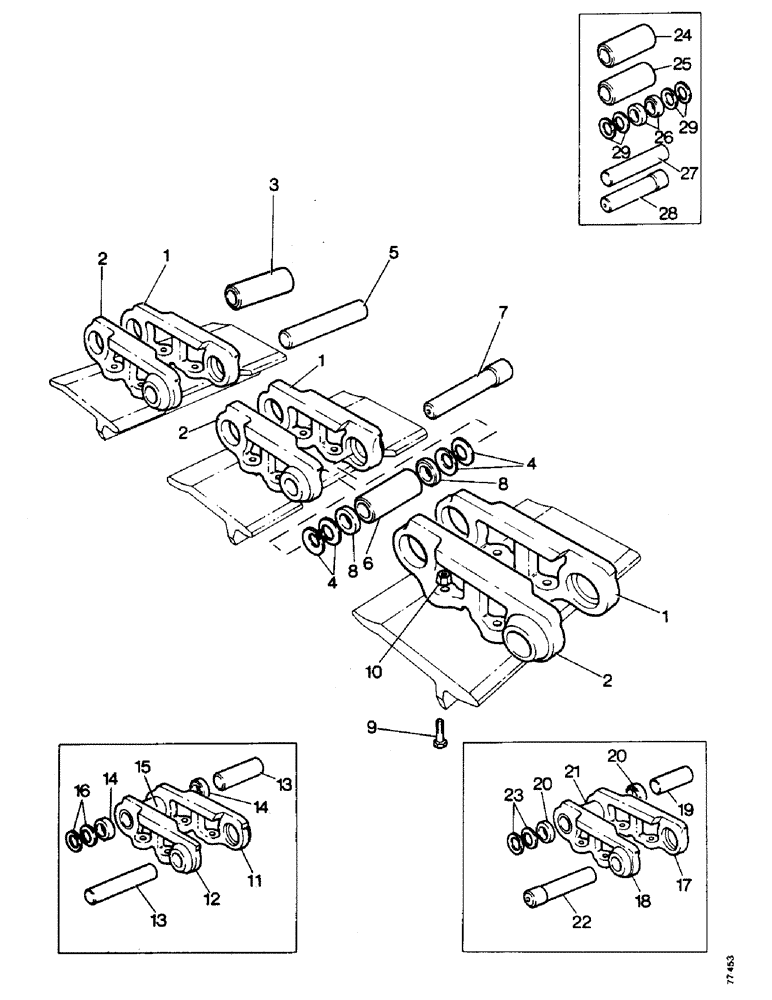

D49002
CHAIN (AG)
CHAIN ASSEMBLY - 36 unit, sealed track
2шт.
1
D31710
LINK
- track, right hand, order D45348 kit
36шт.
2
D31709
LINK
- track, left hand, order D45348 kit
36шт.
3
D45075
SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L
- track, long
35шт.
4
D45076
BELLEVILLE SPRING
SEAL - washer
144шт.
5
R14893
PIN,34.9mm OD x 176.22mm L
- track, standard
35шт.
D32164
PIN
- track, 0.003 in oversize
35шт.
6
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short
1шт.
7
D36511
PIN
- track, master
1шт.
8
D45272
BUSHING
- spacer
2шт.
9
E88219
BOLT
- special
288шт.
10
R17415
LOCK NUT
- lock, special
288шт.
ref
Part No.
English
1шт.
D45348
KIT
- track chain unit, sealed track
68шт.
11
D31710
LINK
- track, right hand, chain unit kit
1шт.
12
D31709
LINK
- track, left hand, chain unit kit
1шт.
13
R14893
PIN,34.9mm OD x 176.22mm L
- track, standard, chain unit kit
2шт.
14
D45272
BUSHING
- spacer, track chain unit kit
2шт.
15
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short. track chain unit kit
1шт.
16
D45076
BELLEVILLE SPRING
SEAL - washer, track chain unit kit
8шт.
ref
Part No.
English
1шт.
D45350
LINK
KIT - master chain unit, sealed track
4шт.
17
D31710
LINK
- track, right hand, master chain unit kit
1шт.
18
D31709
LINK
- track, left hand, master chain unit kit
1шт.
19
R14893
PIN,34.9mm OD x 176.22mm L
- track, standard, master chain unit kit
1шт.
20
D45272
BUSHING
- spacer, master chain unit kit
2шт.
21
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short, chain unit kit
1шт.
22
D36511
PIN
- track, master, chain unit kit
1шт.
23
D45076
BELLEVILLE SPRING
SEAL - washer, master chain unit kit
8шт.
ref
Part No.
English
1шт.
D45349
KIT
- pin and bushing, sealed track
1шт.
24
R45075
BUSHING - track, long, pin kit
76шт.
25
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short, pin kit
4шт.
26
D45272
BUSHING
- spacer, pin kit
8шт.
27
D32164
PIN
- track, 0.003 in oversize, bushing kit
76шт.
28
D43541
PIN
- track, master 0.003 in oversize, bushing kit
4шт.
29
D45076
BELLEVILLE SPRING
SEAL - washer, pin & bushing kit
320шт.
Выбрано товаров: 37
