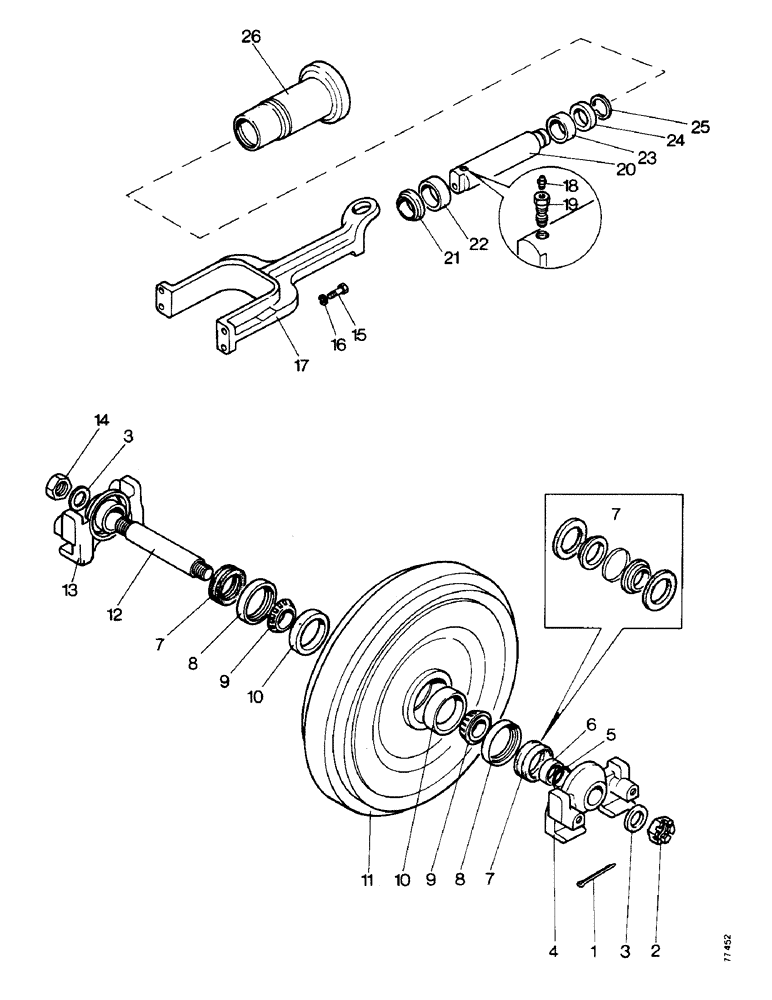

Запчасти Case 850 (F07-1) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

D48682

FRONT IDLER

IDLER WHEEL AND BRACKET - left hand

1шт.

D48683

FRONT IDLER

IDLER WHEEL AND BRACKET - right hand

1шт.

1

132-156

PIN

- split

1шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1.1/2 in UNF slotted

1шт.

3

D36065

WASHER

- special

2шт.

4

D48680

BRACKET

- idler wheel, left hand

1шт.

5

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

'O'RING

2шт.

6

D48681

SPACER

- idler

2шт.

7

D35267

SEAL

- face

2шт.

D36826

SEAL KIT

KIT - repair

1шт.

8

D36069

RING

- seal retainer

2шт.

9

40413

BEARING, CONE,2" ID x 1.2188" OD

BEARING - cone

2шт.

10

A27732

BEARING CUP

BEARING - cup

2шт.

11

E81398

WHEEL - idler

1шт.

12

D36068

SHAFT

- idler

1шт.

13

D48679

BRACKET

- idler wheel, right hand

1шт.

14

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- lock, 1.1/2 UNF

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.

17

D36360

YOKE

- front idler wheel, 6 roller track

2шт.

D36359

YOKE

- front idler wheel, 5 roller track

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 NPT

2шт.

19

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

D39930

ADJUSTER

TRACK ADJUSTER - hydraulic

2шт.

20

D36361

PISTON

- track adjuster

1шт.

21

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

SEAL - wiper

1шт.

22

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- rider

1шт.

23

D30368

BEARING

- backup

1шт.

24

D36971

RING

PACKING - 'U' cup

1шт.

25

D23191

SNAP RING,#200, Ext

Ring, Snap, , rear #200, Ext

1шт.

26

NLS

NO LONGER SERVICED

TUBE - track adjuster

1шт.
