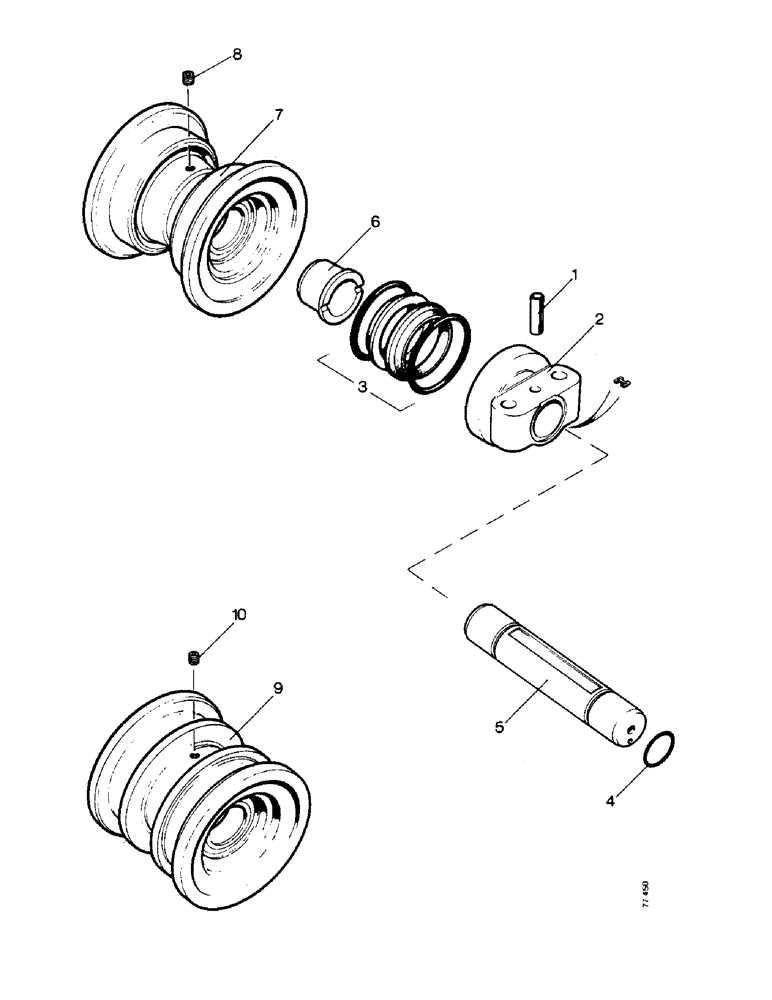

Запчасти Case 850 (F05-1) - TRACK ROLLERS - SINGLE FLANGE (04) - UNDERCARRIAGE

R33552

ROLL

ER - track

8-10шт.

1

R33563

ROLL PIN

PIN - cap retaining

2шт.

2

R33560

BUSHING

CAP - end collar

2шт.

3

R33564

SEAL

- face

4шт.

4

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O'RING

2шт.

5

R33561

SHAFT

- roller

1шт.

R33558

ROLLER

HUB ASSEMBLY

1шт.

6

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller

2шт.

7

R33554

HUB - roller

1шт.

8

R33557

PLUG

- roller

1шт.

ref

Part No.

English

1шт.

R33553

ROLLER

- track, double flange

4шт.

1

R33563

ROLL PIN

PIN - cap retaining, track roller double flange

2шт.

2

R33560

BUSHING

CAP - end collar, track roller double flange

2шт.

3

R33564

SEAL

- face, track roller double flange

4шт.

4

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O'RING, track roller double flange

2шт.

5

R33561

SHAFT

- roller, track double flange

1шт.

R33559

ROLLER

HUB ASSEMBLY, track roller double flange

1шт.

6

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller, track double flange

2шт.

9

R33555

HUB - roller, track double flange

1шт.

10

R33557

PLUG

- roller, track double flange

1шт.
