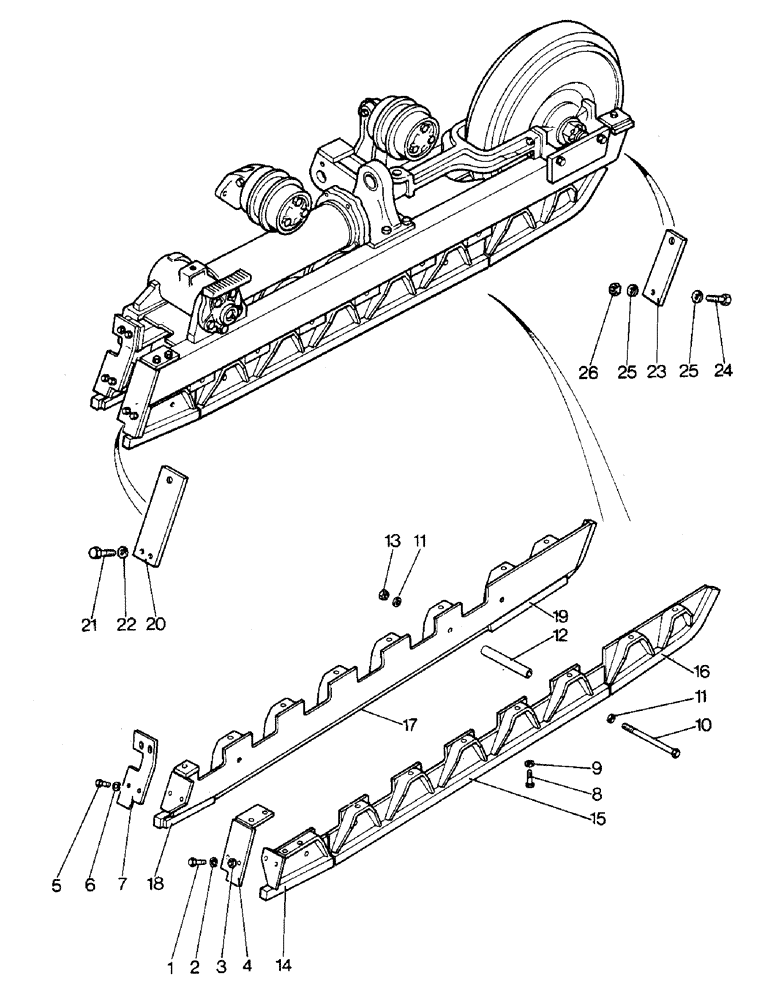

Запчасти Case 850 (F04-1) - TRACK GUIDES - 6 ROLLER (04) - UNDERCARRIAGE

1

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

195-41

WASHER,5/8"

8шт.

4

D40116

GUARD

- rock outer, rear right hand

1шт.

D40115

GUARD ASSY.

GUARD - rock outer, rear left hand

1шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

D41386

GUARD

- rock inner, rear right hand

1шт.

D41385

GUARD ASSY.

GUARD - rock inner, rear left hand

1шт.

8

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

34шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

34шт.

10

15-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- 3/4 UNC x 10 in

6шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

12шт.

12

D35698

SPACER

- track guides

8шт.

13

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4 UNC

8шт.

14

D40105

GUARD

TRACKGUIDE - rear, right hand outer

1шт.

D40109

STRIP

WEAR STRIP - guide

1шт.

D40104

GUARD

TRACKGUIDE - rear, left hand outer

1шт.

D40109

STRIP

WEAR STRIP - guide

1шт.

15

D35728

GUIDE

TRACKGUIDE - centre, right hand outer

1шт.

D35727

NO LONGER SERVICED

TRACKGUIDE - centre, left hand outer

1шт.

16

D35707

GUARD

TRACKGUIDE - front, right hand outer

1шт.

D38440

STRIP

WEAR STRIP - guide

1шт.

D35706

GUARD

TRACKGUIDE - front, left hand outer

1шт.

D38440

STRIP

WEAR STRIP - guide

1шт.

17

D40111

GUARD

TRACKGUIDE - right hand, inner

1шт.

18

D40109

STRIP

WEAR STRIP - guide, rear

1шт.

19

D38440

STRIP

WEAR STRIP - guide, front

1шт.

D40110

GUARD

TRACKGUIDE - left hand, inner

1шт.

D40109

STRIP

WEAR STRIP - guide, front

1шт.

D38440

STRIP

WEAR STRIP - guide, rear

1шт.

ref

Part No.

English

1шт.

20

D49039

HOOK - lift optional

2шт.

21

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Hook-lift optional Hex, 5/8"-11 x 2 1/4", G5

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Hook - lift optional 5/8"

2шт.

23

D49040

HOOK - lift optional

2шт.

24

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Hook-lift optional Hex, 5/8"-11 x 2", G5

2шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Hook - lift optional 5/8"

2шт.

26

25-1010

NUT,5/8"-11, G5

Hook - lift optional 5/8"-11, G5

2шт.
