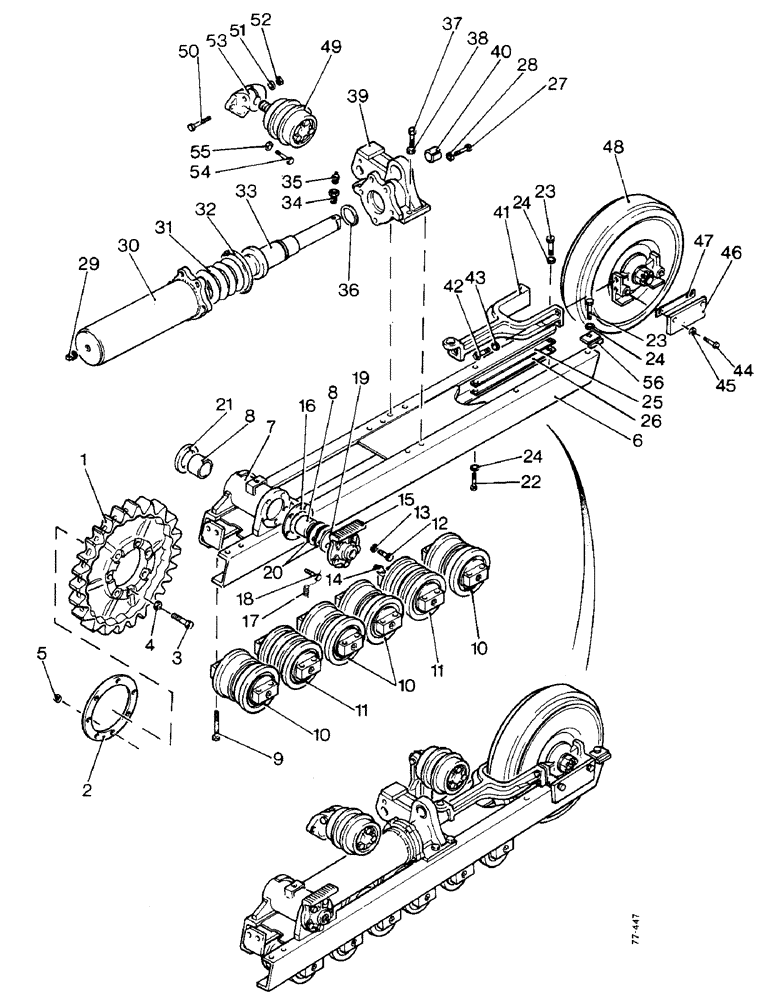

Запчасти Case 850 (F02-1) - TRACK FRAME AND RECOIL SYSTEM - 6 ROLLER (04) - UNDERCARRIAGE

1

D46923

DRIVE SPROCKET

SPROCKET - drive, for service order R34802

2шт.

2

D39530

SHIM,.03125" Thk

Sprocket alignment .03125" Thk

1шт.

3

R27954

BOLT

- 3/4 UNC x 2.3/4

14шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

14шт.

5

280375

NUT,3/4"-10, GC

NUT - 3/4 UNC

14шт.

6

R24113

FRAME

- track right hand, Loader only

1шт.

E88347

FRAME - track right hand, Dozer only

1шт.

R24112

FRAME

- track left hand, Loader only

1шт.

E88346

FRAME - track left hand, Dozer only

1шт.

R5007

BLOCK

KIT - pivot block, right hand frames

1шт.

7

BLOCK ASSEMBLY - pivot, part of R5007

1шт.

8

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - pivot block

2шт.

R5008

BLOCK

KIT - pivot block, left hand frames

1шт.

BLOCK ASSEMBLY - pivot, part of R5008

1шт.

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - pivot block

2шт.

9

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

- 3/4 UNF x 3.1/4 in

48шт.

10

R33552

ROLL

ER - track, single flange see Figure F05-1

8шт.

11

R33553

ROLLER

- track, double flange, see Figure F05-1

4шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

13

92-8

LOCK WASHER,1/2"

10шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 NPT

2шт.

15

D40808

COVER

- pivot shaft, Loader only

2шт.

D44787

PLATE

COVER - pivot shaft, Dozer only

2шт.

16

CASD41288

GASKET

- cover

8шт.

17

R13538

ELECTRICAL WIRE

WIRE - tie

2шт.

18

R13420

BOLT

- special

6шт.

19

D44185

PLATE

- lock, pivot shaft

2шт.

20

R13087

SHIM,.031" Thk

Plate .031" Thk

1шт.

21

D41447

SEAL

- oil, pivot block housing

2шт.

22

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

23

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Loader only Hex, 5/8"-11 x 2 1/4", G5

4шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Dozer only Hex, 5/8"-11 x 2", G5

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

D35290

STRIP

SHIM - wear plate, 0.0149 in

1шт.

26

D35276

PLATE

- wear, front idler wheel

4шт.

27

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

10шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

29

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4 NPT

2шт.

30

D39915

HOUSING

- recoil spring

2шт.

31

D39925

SPRING

- recoil

2шт.

32

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

'O'RING

2шт.

33

D39930

ADJUSTER

TRACK ADJUSTER - hydraulic, see Figure F07-1

2шт.

34

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 NPT

2шт.

36

D36362

RING

- quad

2шт.

37

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

38

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

39

D40984

HOUSING

RECOIL HOUSING - front right hand, Loader only

1шт.

D40982

HOUSING

RECOIL HOUSING - front right hand, Dozer only

1шт.

D40983

HOUSING

RECOIL HOUSING - front left hand, Loader only

1шт.

D40981

HOUSING

RECOIL HOUSING - front left hand, Dozer only

1шт.

40

D35850

BUSHING

- housing

1шт.

41

D36360

YOKE

- front idler wheel

2шт.

42

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

BOLT - 1/2 UNC x 1.1/2 in

8шт.

43

92-8

LOCK WASHER,1/2"

8шт.

44

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

45

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

46

D39929

SHIM

PLATE - guide, front idler gear

4шт.

47

D39928

SHIM,.0478" Thk

Plate .0478" Thk

1шт.

48

D48682

FRONT IDLER

IDLER WHEEL - left hand, see Figure F07-1

1шт.

D48683

FRONT IDLER

IDLER WHEEL - right hand, see Figure F07-1

1шт.

49

D33965

ROLLER - track carrier, see Figure F06-1

4шт.

50

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

51

92-8

LOCK WASHER,1/2"

2шт.

52

25-108

NUT,1/2"-13, G5

- 1/2 UNC

2шт.

53

D45485

BRACKET

- track carrier roller, rear

2шт.

54

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

55

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

56

D44010

FRONT IDLER

STOP - idler, Loader only

4шт.

ref

Part No.

English

1шт.

E88898

RECOIL ASSEMBLY KIT - front right hand, Dozer only

1шт.

E88897

RECOIL ASSEMBLY KIT - front left hand, Dozer only

1шт.

E88642

RECOIL ASSEMBLY KIT - front right hand, Loader only

1шт.

E88643

RECOIL ASSEMBLY KIT - front left hand, Loader only

1шт.

27

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Recoil assembly kit Hex, 5/8"-11 x 2", G5

5шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Recoil assembly kit 5/8"

5шт.

29

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4 NPT, recoil assembly kit

1шт.

30

D39915

HOUSING

- recoil spring, assembly kit

1шт.

31

D39925

SPRING

- recoil assembly kit

1шт.

32

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

'O'RING, recoil assembly kit

1шт.

33

D39930

ADJUSTER

TRACK ADJUSTER - hydraulic, recoil assembly kit

1шт.

34

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster, recoil assembly kit

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 NPT, recoil assembly kit

1шт.

36

D36362

RING

- quad, recoil assembly kit

1шт.

39

D40984

HOUSING

RECOIL HOUSING - front right hand, E88642 only, assembly kit

1шт.

40

D35850

BUSHING

- housing, recoil assembly kit

1шт.

39

D40983

HOUSING

RECOIL HOUSING - front left hand, E88643 only, assembly kit

1шт.

40

D35850

BUSHING

- housing, recoil assembly kit

1шт.
