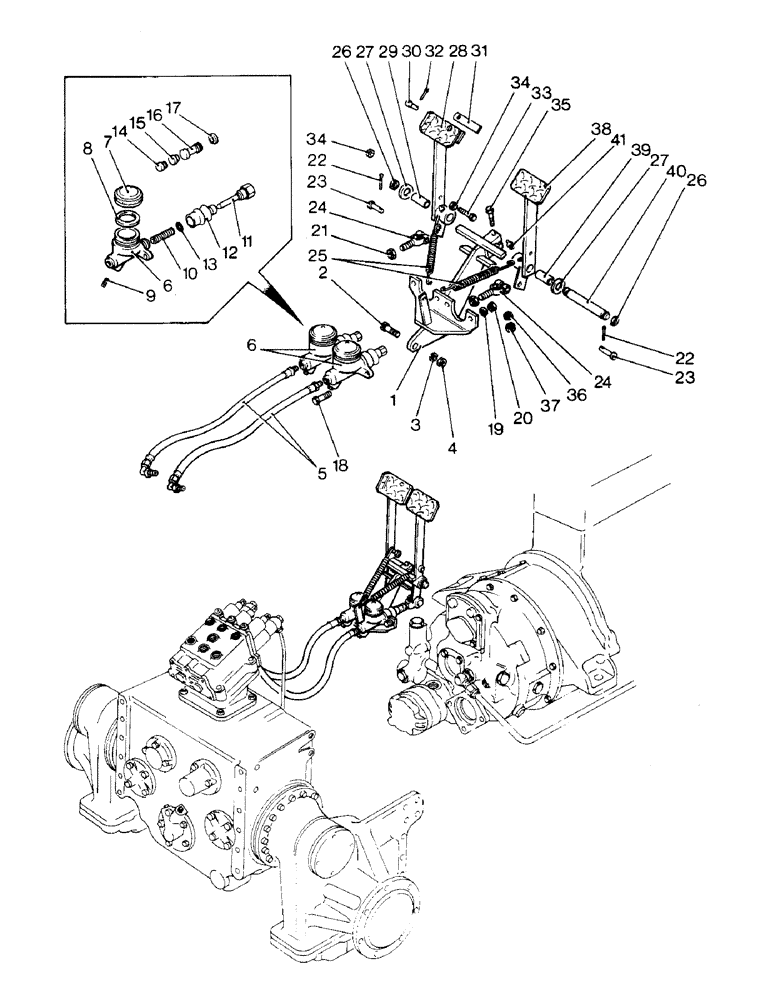

Запчасти Case 850 (E02-1) - BRAKE PEDALS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
D39818
X
SUPPORT - brake mounting
1шт.
2
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
2шт.
4
25-1010
NUT,5/8"-11, G5
2шт.
5
D39836
HOSE,3.17mm ID x 609.6mm L
- master, Serial Range: cylinder-brake
2шт.
6
D39824
CYLINDER
- master, brake
2шт.
7
D42448
CAP
- filler
1шт.
8
D42447
GASKET
- cap
1шт.
9
221-11
PLUG,Sq Hd, 1/8"-27
- 1/8 NPT
1шт.
10
D42444
SPRING
- return
1шт.
11
D42446
ROD
- push
1шт.
D42442
REPAIR KIT
KIT - rebuild, master cylinder
1шт.
12
D42443
BOOT
- master cylinder part of D42442
1шт.
13
D42445
O-RING
'O'RING - piston part of D42442
1шт.
14
VALVE AND SEAT part of D42442
1шт.
15
CUP part of D42442
1шт.
16
PISTON part of D42442
1шт.
17
RING - retaining part of D42442
1шт.
18
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 UNC x 1.1/2 in
4шт.
19
92-6
LOCK WASHER,3/8"
4шт.
20
25-106
NUT,3/8"-16, G5
- 3/8 UNC
4шт.
21
25-157
JAM NUT,Jam, 7/16"-20, G5
- 7/16 UNF
2шт.
22
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
23
141-5
CLEVIS PIN,7/16" x 1.190"
PIN - yoke
2шт.
24
D38620
YOKE
- adjustable
2шт.
25
11469
SPRING
- pedal return
2шт.
26
T25683
SNAP RING,#75, Ext
Ring, Snap, #75, Ext
2шт.
27
195-45
WASHER,3/4"
2шт.
28
D48604
PEDAL ASSY.
PEDAL - brake, left hand
1шт.
29
D48603
BUSHING
- pedal
1шт.
30
141-3
CLEVIS PIN,5/16" x .940"
PIN - lock
1шт.
31
D42840
LOCK
- brake pedal
1шт.
32
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
33
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 UNC x 1.1/2 in
2шт.
34
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8 UNC
4шт.
35
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- 1/2 UNC x 2.1/4 in
1шт.
36
92-8
LOCK WASHER,1/2"
1шт.
37
25-108
NUT,1/2"-13, G5
- 1/2 UNC
1шт.
38
D48605
BRAKE ASSY.
PEDAL - brake, right hand
1шт.
39
D48603
BUSHING
- pedal
1шт.
40
D34915
SHAFT
- pedal
1шт.
41
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease
2шт.
Выбрано товаров: 42
