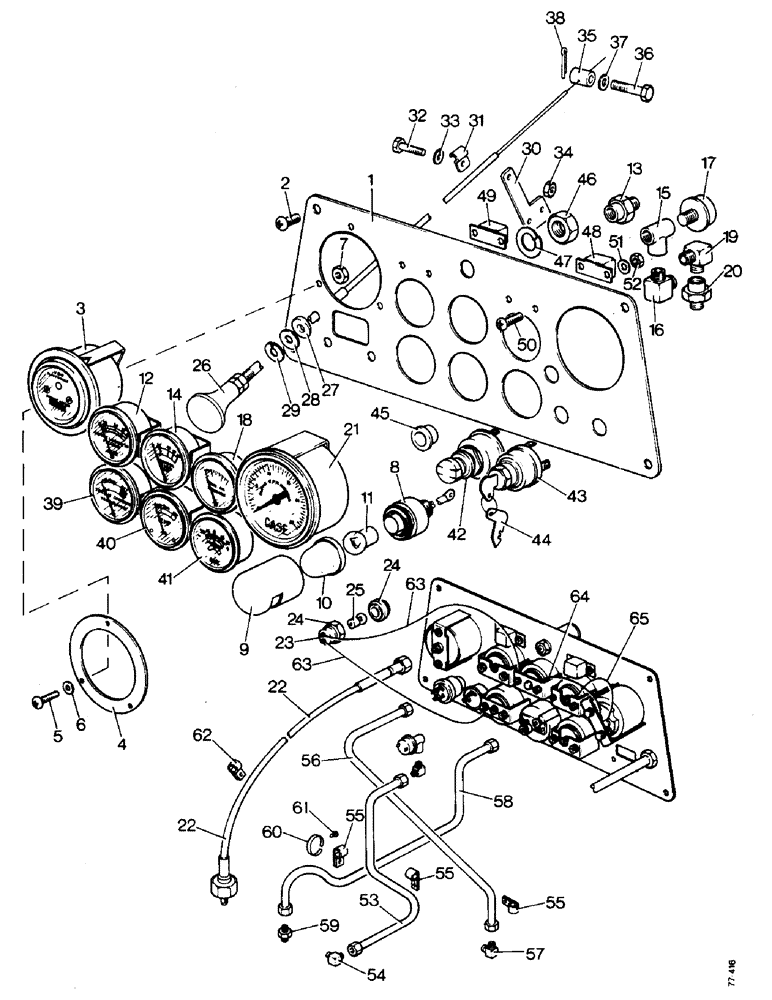

Запчасти Case 850 (D02-1) - INSTRUMENT PANEL (03) - TRANSMISSION

1

R36929

PANEL

- instrument

1шт.

2

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

- 5/16 UNF x 7/8 in

4шт.

3

E89908

HOURMETER

METER - engine hour

1шт.

4

E88181

BEZEL

- hour meter

1шт.

5

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- No. 6-32 UNC x 1/2 in

3шт.

6

195-15

WASHER,#12

- lock, No. 6

3шт.

7

129-15

NUT,#6-32

3шт.

8

D33212

INTERIOR LIGHT

LAMP - dash

1шт.

9

R22237

COVER

1шт.

10

R22232

SIGHTGLASS

LENS

1шт.

11

71421

BULB,R5W, 12V, 5W

1шт.

12

R15953

GAUGE

- torque converter oil pressure

1шт.

13

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

CONNECTOR - straight, male/female

1шт.

14

D22853

GAUGE

- engine oil pressure

1шт.

15

217-10

TEE,1/8" - 27 NPTF Fem

PIECE - female, 1/8 NPT

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90degree male

1шт.

17

D28798

SWITCH

- pressure

1шт.

18

E88978

ELECTRICAL GAUGE

GAUGE - transmission oil pressure

1шт.

19

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90degree male

1шт.

20

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

ADAPTOR - female/female

1шт.

21

D38122

TACHOMETER

- engine rev/min

1шт.

22

E81136

CABLE

- tachometer

1шт.

23

E89206

INDICATOR LIGHT

LAMP - charge warning

1шт.

24

E89209

HOUSING

BODY - with red lens

1шт.

25

E89207

BULB

1шт.

26

R30305

CABLE

CONTROL - engine shut off

1шт.

27

E89361

WEDGE

WASHER - wedge, 7/16 in

2шт.

28

E89362

WASHER

- 7/16 in

2шт.

29

92-7

LOCK WASHER,7/16"

1шт.

30

E81122

BRACKET

- control cable

1шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- 3/8 UNC

1шт.

35

E81248

CLEVIS

PIN

1шт.

36

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- 8-32 UNC x 3/8 in

1шт.

37

195-17

WASHER,1/4"

- 1/4 in

1шт.

38

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

1шт.

39

D44005

ELECTRICAL GAUGE

GAUGE - torque converter temperature

1шт.

40

K921148

ELECTRICAL GAUGE

GAUGE - coolant temperature

1шт.

41

R18748

AMMETER

GAUGE - ammeter

1шт.

42

D35065

SWITCH

- light

1шт.

43

D35092

SWITCH

- ignition

1шт.

44

D36822

KEY

- set of two

1шт.

45

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

46

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8 UNF, special

1шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

48

D37203

BREAKER

CIRCUIT BREAKER

1шт.

49

A22877

BREAKER,40A

CIRCUIT BREAKER

1шт.

50

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- No. 8-32 UNC x 3/8 in

4шт.

51

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

52

129-16

NUT,#8-32

4шт.

53

D95116

HOSE

- engine oil pressure

1шт.

54

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

- 90degree male

1шт.

55

49838

CLAMP

3шт.

56

D95114

HOSE

- transmission oil pressure

1шт.

57

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90degree male

1шт.

58

D95113

HOSE

- converter oil pressure

1шт.

59

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male

1шт.

60

E81138

STRAP

2шт.

61

D41075

STUD

- nylon

2шт.

62

49845

CLAMP

1шт.

63

E88274

ELECTRICAL WIRE

WIRE - charge warning light

2шт.

64

E88248

CABLE

WIRE - hour meter, red

1шт.

65

E88182

CABLE

WIRE - hour meter, black

1шт.
