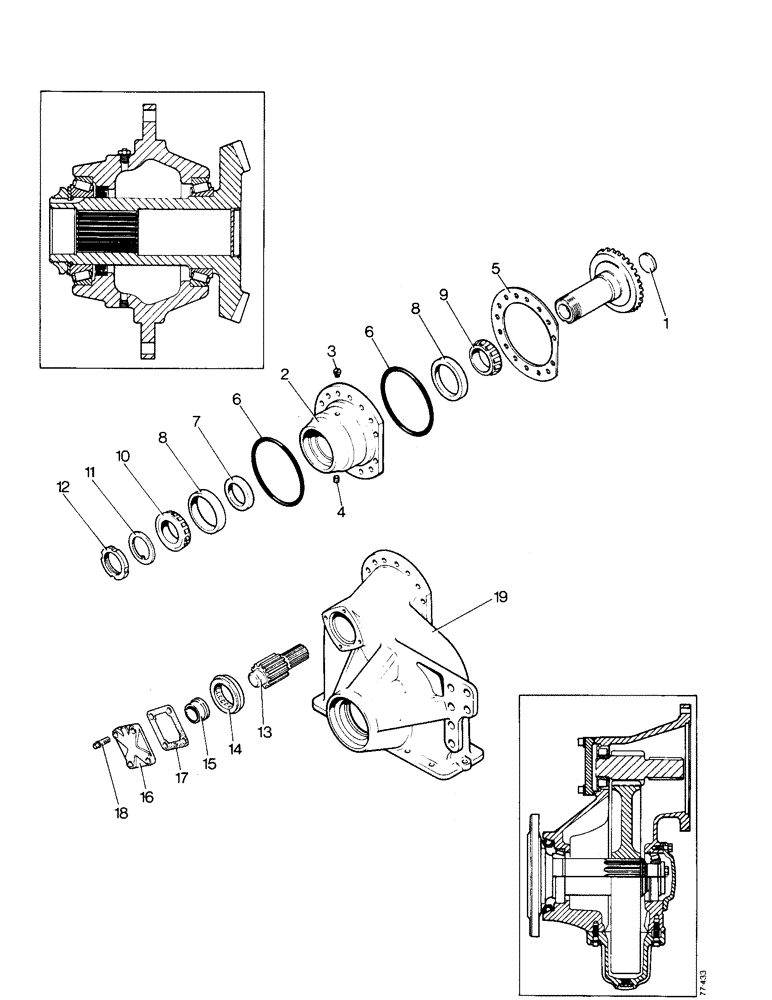

Запчасти Case 850 (C02-1) - PINION AND SHAFT (03) - TRANSMISSION

1

A50099

PLUG

- bevel pinion

2шт.

2

A50095

CARRIER

- bevel gear

2шт.

3

A50096

VALVE

- vacuum pressure relief

2шт.

4

221-1840

PLUG

- 1/8 NPT

2шт.

5

A50107

SHIM,.003" Thk

Bevel gear carrier .003" Thk

1шт.

A50106

SHIM,.005" Thk

Bevel gear carrier .005" Thk

1шт.

6

A50108

SEALING RING

- carrier and housing

4шт.

7

A50419

OIL SEAL

- bevel gear carrier

2шт.

8

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, inner and outer

4шт.

9

A50102

ROLLER BEARING,3" ID x 1"

CONE - bearing, inner

2шт.

10

A50100

ROLLER BEARING,82.55mm ID x 25.4mm W

CONE - bearing, outer

2шт.

11

A50103

WASHER

- keyed thrust, bevel gear

2шт.

12

A50167

NUT

- lock, bevel gear

2шт.

13

A50143

SHAFT

- pinion

2шт.

14

A50145

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25.01mm W

BEARING - pinion shaft, outer race with rollers and retaining ring

2шт.

15

A50144

ROLLER BEARING,44.99mm ID x 25mm W

BEARING - pinion shaft, inner race

2шт.

16

A50147

COVER

- bevel shaft, outer

2шт.

17

A50146

GASKET

- bevel shaft cover

2шт.

18

61-614

HEX SOC SCREW,3/8"-16 x 7/8"

SCREW - 3/8 UNC x 7/8 in

8шт.

19

A50550

HOUSING

- final drive, right hand see Figure C01-1

1шт.

A50551

HOUSING

- final drive, left hand see Figure C01-1

1шт.
