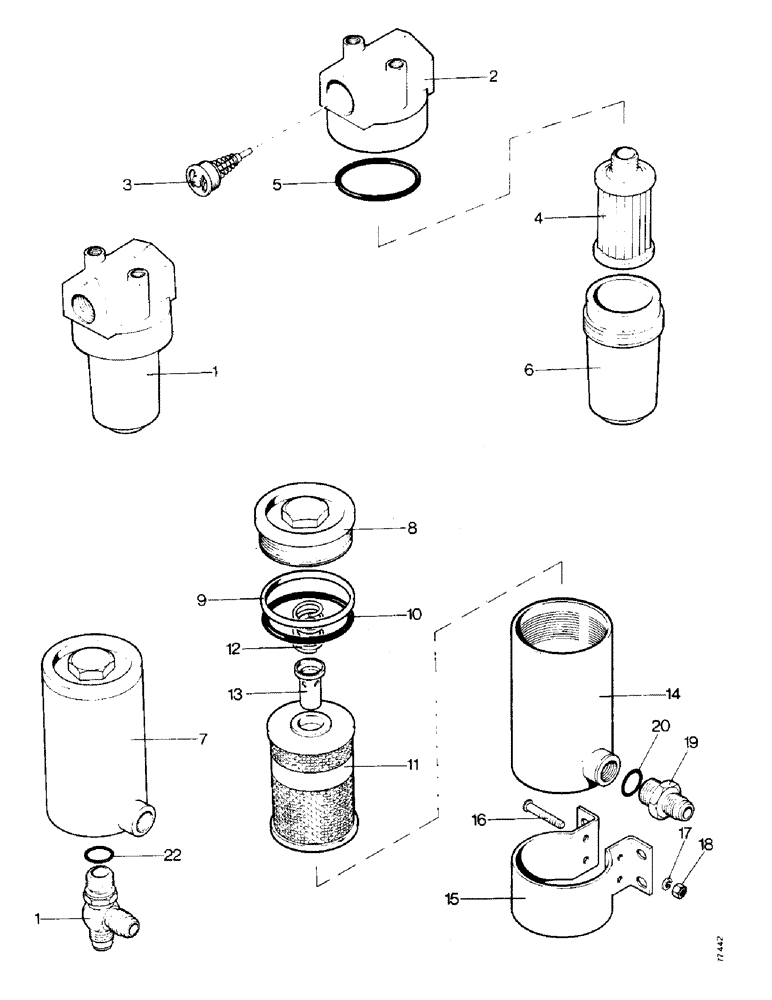

Запчасти Case 850 (B16-1) - TRANSMISSION OIL FILTERS (03) - TRANSMISSION

1

D43639

FILTER, ENGINE OIL

SUCTION LINE FILTER - transmission oil

1шт.

2

D43798

HEAD

ASSEMBLY

1шт.

3

D49376

VALVE

- oil bypass, 3 lb in2

1шт.

D32211

FILTER, ELEMENT

KIT - filter element

1шт.

4

SCREEN - filter part of D32211

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

'O'RING part of D32211

1шт.

6

D43799

HOUSING

- filter

1шт.

7

NLS

NO LONGER SERVICED

PRESSURE LINE FILTER - transmission oil

1шт.

8

D31214

CAP

- filter

1шт.

A62871

ELEMENT

KIT - filter element

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

'O'RING

1шт.

11

ELEMENT - filter, order A62871

1шт.

12

D31212

SPRING

- retaining

1шт.

13

D37207

VALVE

- relief

1шт.

14

D45333

BODY

- filter

1шт.

15

D47871

BRACKET

- filter

1шт.

16

75-544

BOLT - 5/16 UNC x 2.3/4

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O'RING

1шт.

21

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O'RING

1шт.
