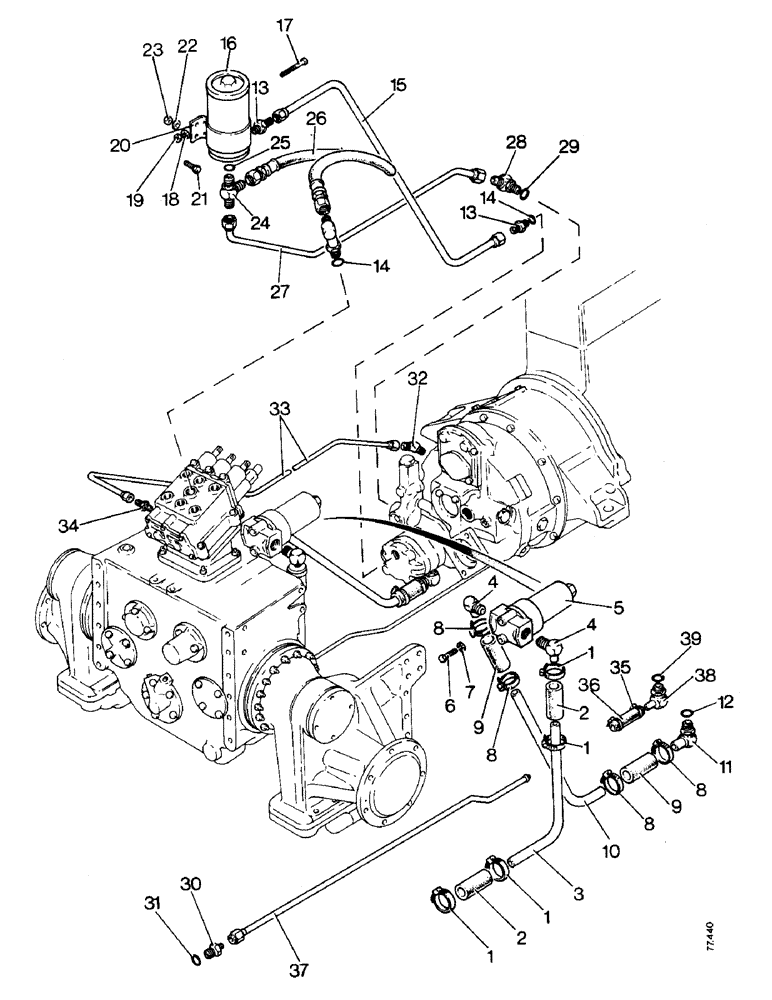

Запчасти Case 850 (B14-1) - BASIC TRACTOR HYDRAULICS, CONVERTER TO TRANSMISSION (03) - TRANSMISSION

1

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

D39846

TUBE

-, Serial Range: transmission-filter

1шт.

4

D38132

STEM

- hose, 90degree

2шт.

5

D43639

FILTER, ENGINE OIL

FILTER - hydraulic oil, see Figure B16-1

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

9

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

10

E88128

TUBE

-, Serial Range: filter-pump

1шт.

11

D36486

FITTING

STEM - hose, 90degree

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O' RING

1шт.

13

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight

2шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O' RING

2шт.

15

36942

HOSE

-, Serial Range: pump-filter

1шт.

16

NLS

NO LONGER SERVICED

FILTER - hydraulic oil, see Figure B16-1

1шт.

17

75-544

SCREW - 5/16 UNC x 2.3/4 in

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

D47871

BRACKET

- filter

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

195-25

WASHER,3/8"

- 3/8 in

4шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC

4шт.

24

D45618

FITTING

TEE - adjustable

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O' RING

1шт.

26

D28117

HOSE

- filter to transmission control valve

1шт.

27

D39856

TUBE

- filter to torque converter

1шт.

28

R19576

FITTING

ELBOW - 90degree, adjustable

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

32

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45degree

1шт.

33

D39850

TUBE

-, Serial Range: converter-transmission

1шт.

34

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTOR - male, straight

1шт.

35

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

36

D35139

HOSE

- low pressure

1шт.

37

D49420

TUBE

- return

1шт.

38

D49424

ELBOW

STEM - hose, 90degree

1шт.

39

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O' RING

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
