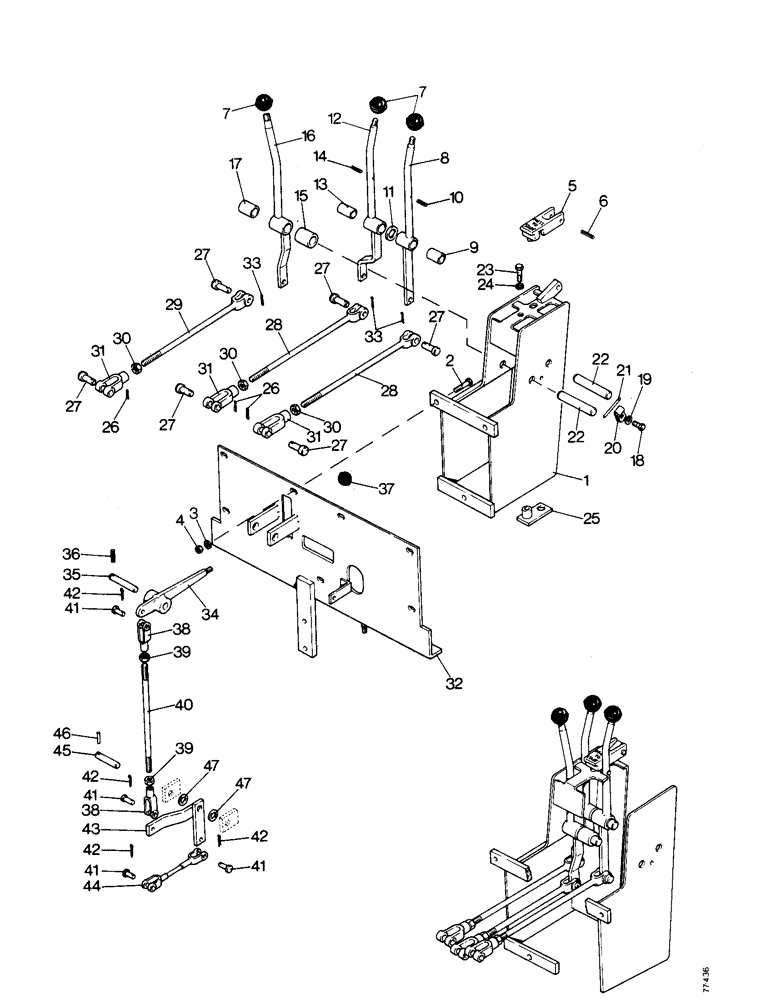

Запчасти Case 850 (B13-1) - TRANSMISSION CONTROL TOWER (03) - TRANSMISSION

1

D35812

TOWER - control

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- 1/2 UNC

3шт.

5

R30091

LOCK

- lever, safety

1шт.

6

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

7

D49996

KNOB

- control lever

3шт.

8

D50244

LEVER

- control, track speed right hand

1шт.

9

D40391

BUSHING

- control lever

1шт.

10

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

11

195-41

WASHER,5/8"

1шт.

12

D50245

LEVER

- control, track speed left hand

1шт.

13

D40391

BUSHING

- control lever

1шт.

14

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

15

D30302

SPACER - lever

1шт.

16

D50248

LEVER

- control, track forward or reverse

1шт.

17

D40391

BUSHING

- control lever

1шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 UNC x 1/2 in

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

49851

SHIELD

- roll pin

1шт.

21

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

22

D35780

SHAFT

- control lever

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 UNC x 1/2 in

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

D34923

BRACKET

- push button starter switch

1шт.

26

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Rod end 5/16" x .940"

6шт.

28

D39833

ROD

- control, track speed

2шт.

29

D39834

ROD

- control, forward or reverse

1шт.

30

25-115

NUT,5/16"-24, G5

3шт.

31

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end

3шт.

32

D52290

PLATE - heel

1шт.

33

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

34

D50205

LEVER

- dual range, Hi-Lo

1шт.

35

D29768

SHAFT

- lever

1шт.

36

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN - roll, 3/16 x 1.7/8 in

1шт.

37

D49996

KNOB

- control lever

1шт.

38

D35773

YOKE

ROD END - adjustable

2шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8 UNF

2шт.

40

D41022

ROD

- dual range

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Rod end 3/8" x 1.060"

4шт.

42

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

43

D30316

LEVER - dual range

1шт.

44

D30319

ROD

- control, dual range

1шт.

45

D30320

SHAFT - dual range lever

1шт.

46

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

47

195-41

WASHER,5/8"

2шт.
