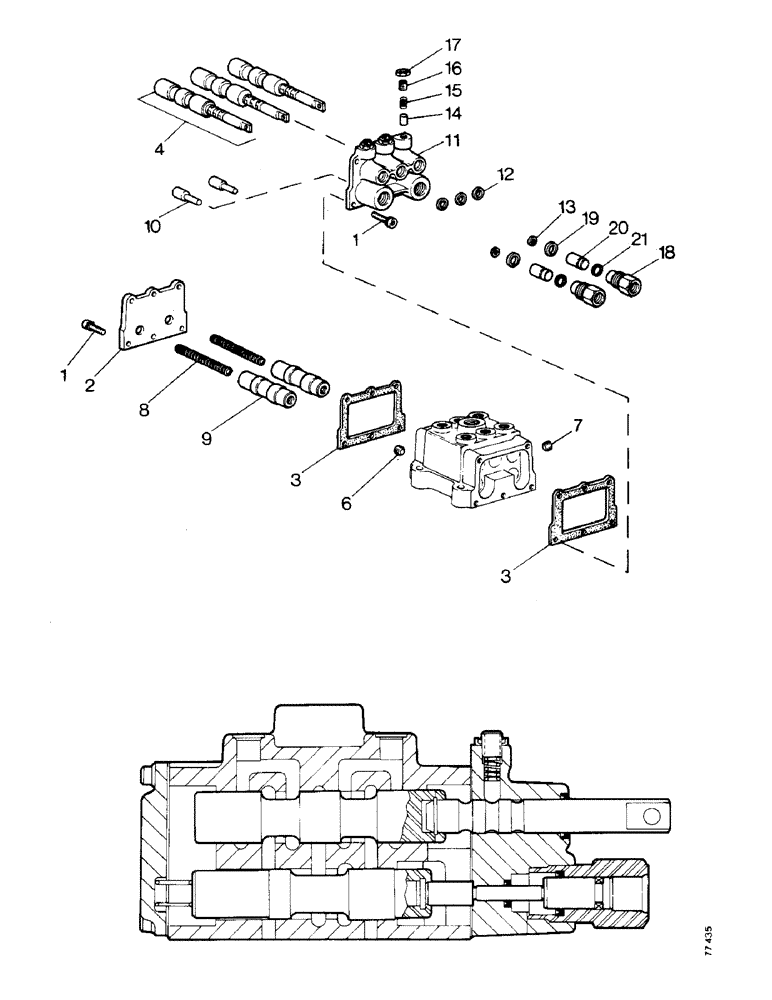

Запчасти Case 850 (B12-1) - CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

ASSEMBLY - transmission control, 3 spool

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - 1/4 UNF x 2.5/8 in

11шт.

2

R21384

COVER

- valve, rear

1шт.

3

35665

GASKET

- cover, front and rear

2шт.

4

G107659

ROD

SPOOL ASSEMBLY - valve shift

3шт.

5

71144

RING

- snap, spool and rod (not shown)

1шт.

6

221-42

X,Sltd, 1/4" NPT

PLUG - 1/4 NPT

1шт.

7

221-1849

PLUG

- 1/8 NPT

2шт.

8

71125

SPRING

- brake valve

2шт.

9

74916

SPOOL

ASSEMBLY - brake valve

2шт.

10

71141

ROD

- push, brake valve

2шт.

11

R13941

COVER ASSY

COVER ASSEMBLY - valve, front

1шт.

12

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft, 5/8 x 13/16 x 3/32 in

3шт.

13

51200266

SEAL

- shaft, 1/4 x 1/2 x 1/8 in

2шт.

14

71120

VALVE

DETENT - valve shift

3шт.

15

71119

SPRING

- detent

3шт.

16

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SETSCREW - 3/8 UNC x 1/2 in

3шт.

17

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

18

A50455

HOUSING

ASSEMBLY - brake valve piston

2шт.

19

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing

1шт.

20

A50457

PISTON

- brake valve, 1.19/32 in

2шт.

21

51200265

RING

- quad, 27/64 x 5/8 x 7/64 in

2шт.
