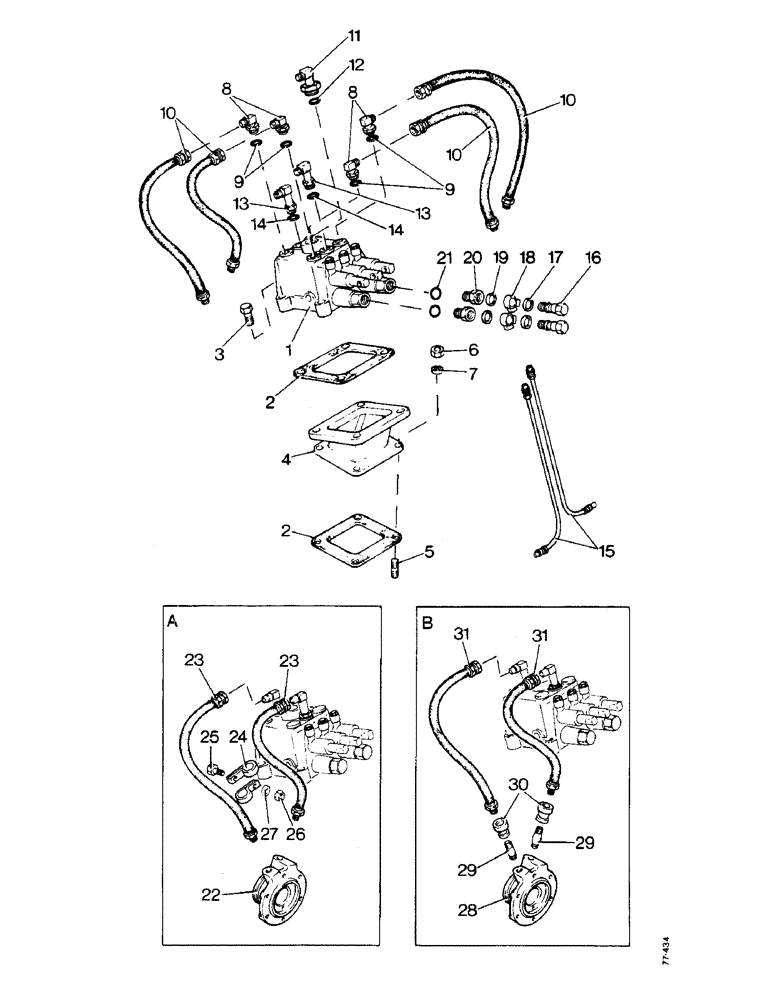

Запчасти Case 850 (B11-1) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION

1

R20724

VALVE

ASSEMBLY - control, see Figure B12-1

1шт.

2

A50113

GASKET

-, Serial Range: valve-base

2шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - 3/8 UNC x 2 in

4шт.

4

A50114

BASE

- valve mounting

1шт.

5

A50019

NO LONGER SERVICED

STUD - 3/8 UNC x 1.1/2 in

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8 UNC

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - front cover hose, 90degree

4шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

A50296

HYDRAULIC HOSE,6.35 mm ID x 495.30 mm, SAE100R1

6.35 mm ID x 495.30 mm, SAE 100R1 - Control valve to front inlet cover

4шт.

11

R20894

FITTING

ELBOW ASSEMBLY - inlet, 90degree

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

R20739

FITTING

ELBOW ASSEMBLY - rear cover hose

2шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

A50126

TUBE

- valve to brake cylinders

2шт.

16

A12864

BOLT

- connection, brake tube

2шт.

17

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake connection bolt, outer

2шт.

18

51200243

FITTING

- brake line hydraulic

2шт.

19

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - brake connection bolt, inner

2шт.

20

72125

ADAPTER

ADAPTOR - brake tube fitting bolt

2шт.

ref

Part No.

English

1шт.

22

A50578

COVER

- forward, reverse and PTO shaft with 1/4 NPT holes, used with A50578 - inset A

1шт.

23

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1 - Valve to rear cover, Used with A50578 - inset A

1шт.

A50579

HOSE

- valve to rear cover, 24 in, used with A50578 - inset A

1шт.

24

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- rear cover hose, used with A50578 cover - inset A

2шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with A50578 cover - inset A Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16 UNC, used with A50578 cover - inset A

1шт.

27

195-21

WASHER,5/16"

Used with A50578 cover - inset A 5/16"

1шт.

ref

Part No.

English

1шт.

28

A54106

X

COVER - forward, reverse and PTO shaft with 1/4 NPT holes, used with A54106 - inset B

1шт.

29

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - reducer to cover, 1/8 NPT x 3/4 in, used with A54106 - inset B

1шт.

30

221-344

LUBE NIPPLE

COUPLING - reducer, 1/4 to 1/8 in, used with A54106 cover - inset B

1шт.

31

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1 - Valve to rear cover, Used with A54106 - inset B

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adaptor sealing

2шт.
