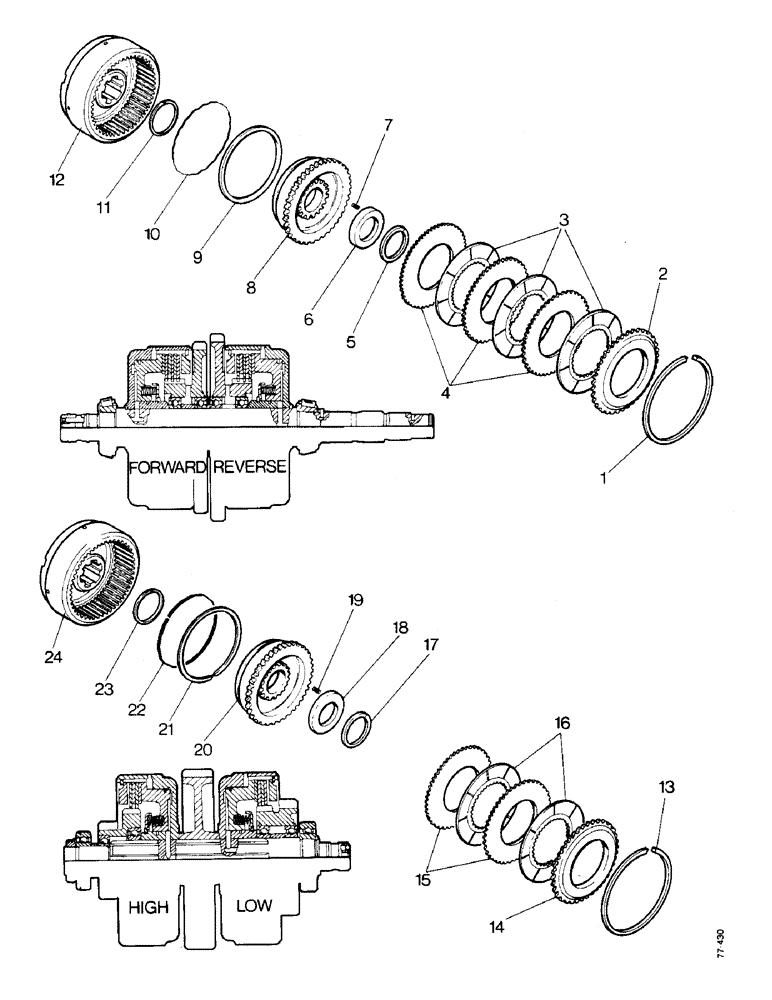

Запчасти Case 850 (B10-1) - CLUTCHES, FORWARD AND REVERSE (03) - TRANSMISSION

A50411

CLUTCH

ASSEMBLY

2шт.

1

30785

RING

- snap, backing plate

1шт.

2

A50030

PLATE

- clutch backing

1шт.

3

A50029

PLATE

DISC - clutch, sintered with internal teeth

3шт.

4

A50028

PLATE

DISC - clutch, steel with external teeth

3шт.

5

A27233

RING

- snap

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

R11015

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch

1шт.

9

A50414

SEALING RING

RING - sealing, piston

1шт.

10

A50416

SPRING

EXPANDER - piston ring

1шт.

11

A50415

SEAL

RING - sealing, drum hub

1шт.

12

A50290

DRUM

- clutch

1шт.

ref

Part No.

English

1шт.

A50412

CLUTCH

ASSEMBLY, high & low speed

4шт.

13

30785

RING

- snap, backing plate, high & low speed

1шт.

14

A50030

PLATE

- clutch backing, high & low speed

1шт.

15

A50029

PLATE

DISC - clutch, sintered with internal teeth, high & low speed

2шт.

16

A50028

PLATE

DISC - clutch, steel with external teeth, high & low speed

2шт.

17

A27233

RING

- snap, high & low speed

1шт.

18

R11016

RETAINER

- clutch spring, high & low speed

1шт.

19

R11015

SPRING

- clutch, high & low speed

18шт.

20

A50571

PISTON

- clutch, high & low speed

1шт.

21

A50414

SEALING RING

RING - sealing, piston, high & low speed

1шт.

22

A50416

SPRING

EXPANDER - piston ring, high & low speed

1шт.

23

A50415

SEAL

RING - sealing, drum hub, high & low speed

1шт.

24

A50288

DRUM

- clutch, high & low speed

1шт.
