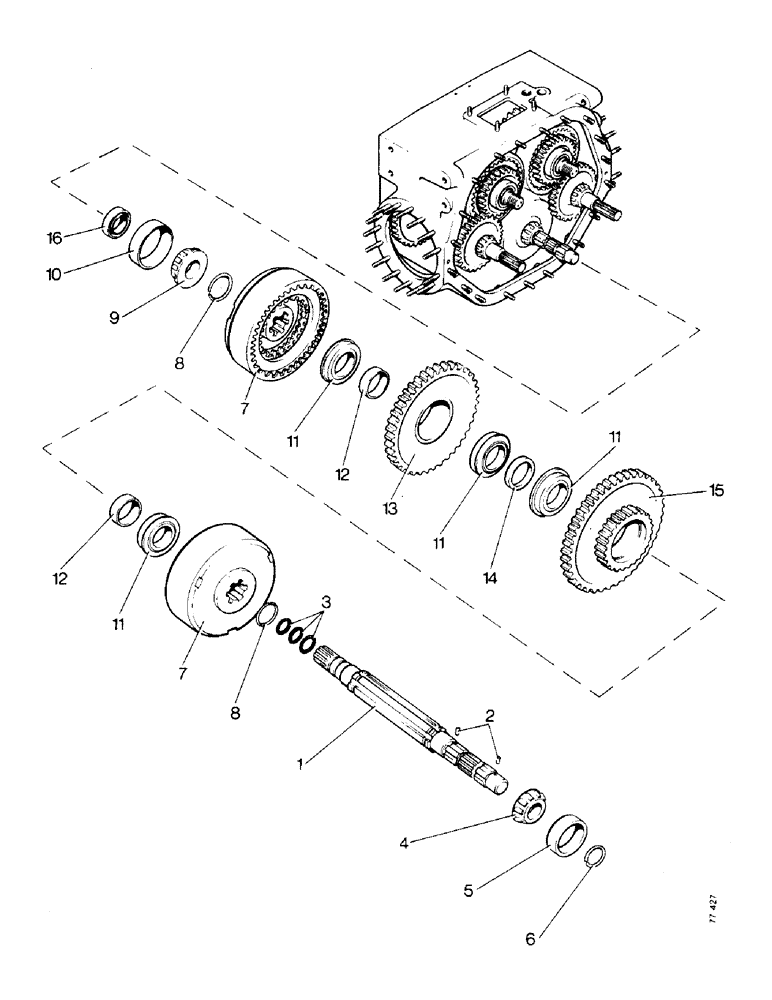

Запчасти Case 850 (B08-1) - FORWARD-REVERSE CLUTCH AND PTO SHAFT (03) - TRANSMISSION

1

A54108

SHAFT

ASSEMBLY - forward and reverse clutch and PTO

1шт.

2

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

3

A51841

RING

- seal, clutch shaft oil collector

3шт.

4

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, clutch shaft front

1шт.

5

G15202

CUP

- bearing, clutch shaft front

1шт.

6

R20786

RING

- snap, front bearing

1шт.

7

A50411

CLUTCH

ASSEMBLY - aluminium, see Figure B10-1

2шт.

8

A50046

RING

- snap

2шт.

9

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, clutch shaft rear

1шт.

10

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, clutch shaft rear

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - clutch

4шт.

12

A50293

SPACER

- clutch bearings

2шт.

13

A50506

GEAR

- driver, forward clutch 29 and 51 teeth

1шт.

14

A50034

SPACER

- drive gears

1шт.

15

A50505

GEAR WHEEL

GEAR - driver, reverse clutch 29 and 56 teeth

1шт.

16

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil

1шт.
