(B06-1) - HIGH-LOW CLUTCH SHAFTS, RIGHT HAND WITH WIDE GEAR

Запчасти Case 850 (B06-1) - HIGH-LOW CLUTCH SHAFTS, RIGHT HAND WITH WIDE GEAR (03) - TRANSMISSION

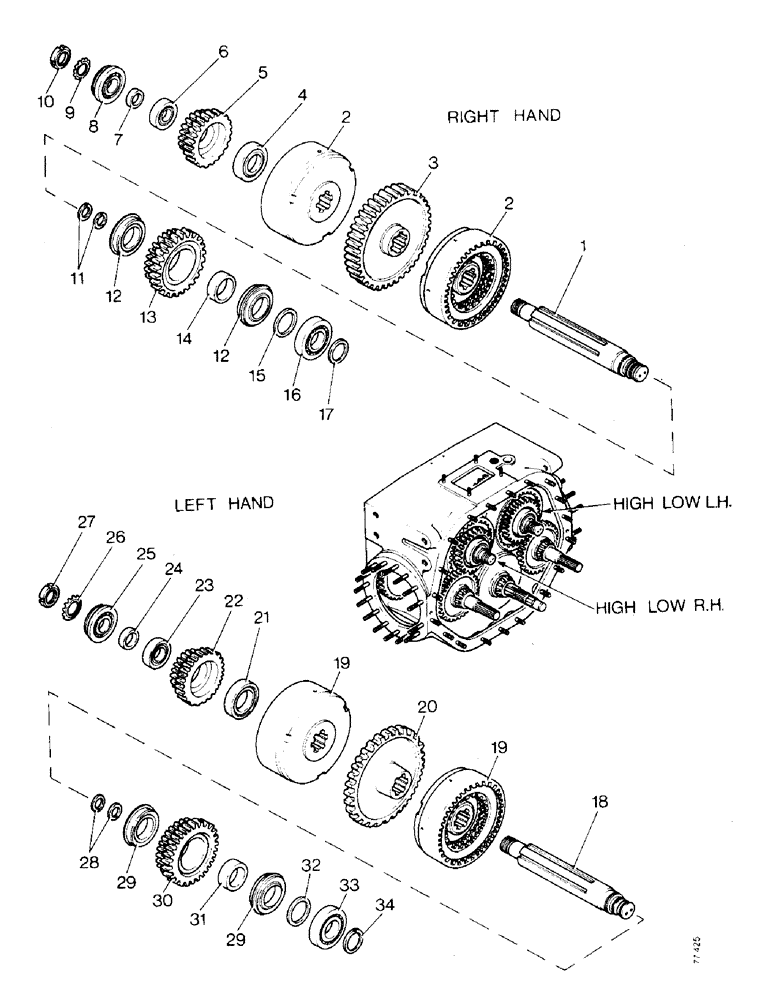

Схема запчастей Case 850 - (B06-1) - HIGH-LOW CLUTCH SHAFTS, RIGHT HAND WITH WIDE GEAR (03) - TRANSMISSION
12
28
22
23
33
24
27
13
20
5
32
2
10
11
19
9
31
7
21
6
14
26
34
16
19
15
30
8
2
29
4
18
12
17
25
3
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A50521

SHAFT

ASSEMBLY

1шт.

2

A50412

CLUTCH

ASSEMBLY - see Figure B10-1

2шт.

3

NLS

NO LONGER SERVICED

- driver, 51 teeth 1.1/2 in tooth width

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear inner

1шт.

5

A50574

SHAFT

GEAR - driver, low clutch 20 and 29 teeth

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear outer

1шт.

7

A50036

RING

SPACER - bearing, low clutch driver gear

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - high-low clutch shaft, rear

1шт.

9

192-307

LOCK WASHER,Type W-07

WASHER - lock, special

1шт.

10

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearing

1шт.

11

A50389

SEAL

RING - seal

2шт.

12

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - high clutch gear

2шт.

13

A50509

GEAR WHEEL

GEAR - high clutch, 29 and 32 teeth

1шт.

14

A50035

BUSHING

SPACER - bearing, high clutch gear

1шт.

15

A50034

SPACER

- bearing, clutch shaft front

1шт.

16

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft front

1шт.

17

A50033

SNAP RING,#177, 1.657", Ext

RING - snap

1шт.

ref

Part No.

English

1шт.

18

A50521

SHAFT

ASSEMBLY, left hand with narrow gear

1шт.

19

A50412

CLUTCH

ASSEMBLY - see Figure B10-1, left hand with narrow gear

2шт.

20

A50511

GEAR

- driver, 51 teeth 11/16 in tooth width, left hand with narrow

1шт.

21

G10418

BEARING, BALL

BEARING - ball, low clutch gear inner, left hand with narrow

1шт.

22

A50574

SHAFT

GEAR - driver, low clutch 20 and 29 teeth, left hand with narrow

1шт.

23

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear outer, left hand with narrow

1шт.

24

A50036

RING

SPACER - bearing, low clutch driver gear, left hand with narrow

1шт.

25

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - high-low clutch shaft, rear, left hand with narrow

1шт.

26

192-307

LOCK WASHER,Type W-07

WASHER - lock, special, left hand with narrow gear

1шт.

27

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearing, left hand with narrow gear'

1шт.

28

A50389

SEAL

RING - seal, left hand with narrow gear

2шт.

29

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - high clutch gear, left hand with narrow

2шт.

30

A50509

GEAR WHEEL

GEAR - high clutch, 29 and 32 teeth, left hand with narrow

1шт.

31

A50035

BUSHING

SPACER - bearing, high clutch gear, left hand with narrow

1шт.

32

A50034

SPACER

- bearing, clutch shaft front, left hand with narrow gear

1шт.

33

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft front, left hand with narrow gear

1шт.

34

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, left hand with narrow gear

1шт.
