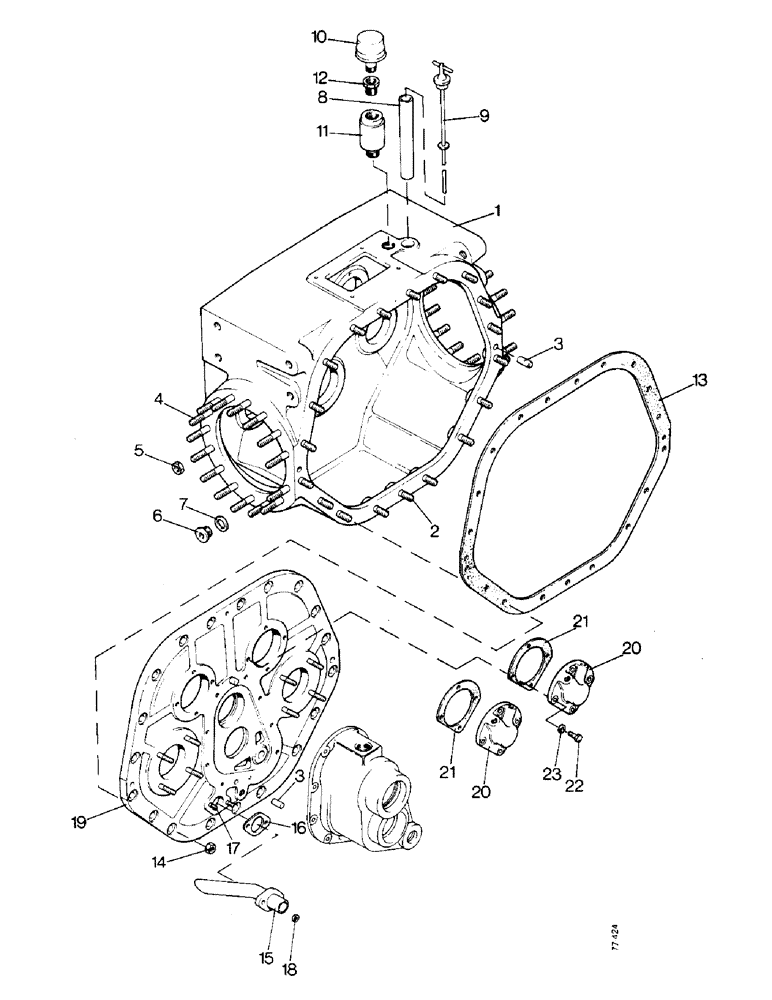

Запчасти Case 850 (B03-1) - TRANSMISSION HOUSING AND FRONT COVERS (03) - TRANSMISSION

A54117

TRANSMISSION ASSEMBLY - Loader models only

1шт.

A51164

NO LONGER SERVICED

TRANSMISSION ASSEMBLY - Dozer models only

1шт.

1

G35213

HOUSING

ASSEMBLY

1шт.

2

A50249

STUD

- 9/16 UNC x 2.3/8 in, front cover

19шт.

3

A50247

DOWEL

PIN - 1/2 x 1.1/4 in, cover locating

4шт.

4

A50021

STUD

- 1/2 UNC x 3 in, left-hand and right-hand final drive

30шт.

5

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

30шт.

6

R14777

PLUG

- drain, transmission

1шт.

7

A58613

SEALING WASHER

WASHER - drain plug, Nylon

1шт.

8

A50018

TUBE

- oil level gauge

1шт.

9

A50225

DIPSTICK

- oil level gauge

1шт.

10

A27173

BREATHER

ASSEMBLY

1шт.

11

A50116

BAFFLE

- breather

1шт.

12

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4 in to 1/4 in

1шт.

13

G35334

GASKET

- front, Serial Range: cover-housing

1шт.

14

232-4119

LOCK NUT,9/16"-12, GC

NUT - lock, 9/16 UNC

19шт.

15

A50110

TUBE

SNORKEL - transmission oil suction

1шт.

16

A50109

GASKET

- snorkel tube

1шт.

17

A50362

STUD

- 3/8 UNC x 1.3/8 in, snorkel mounting

2шт.

18

25-106

NUT,3/8"-16, G5

- 3/8 UNC

2шт.

19

A50241

STUD

- brake plate mounting

8шт.

20

A50057

COVER

- oil inlet front, high-low clutch

2шт.

21

A50056

GASKET

- front inlet cover

2шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

23

A22317

WASHER

- mounting bolt, copper

8шт.
