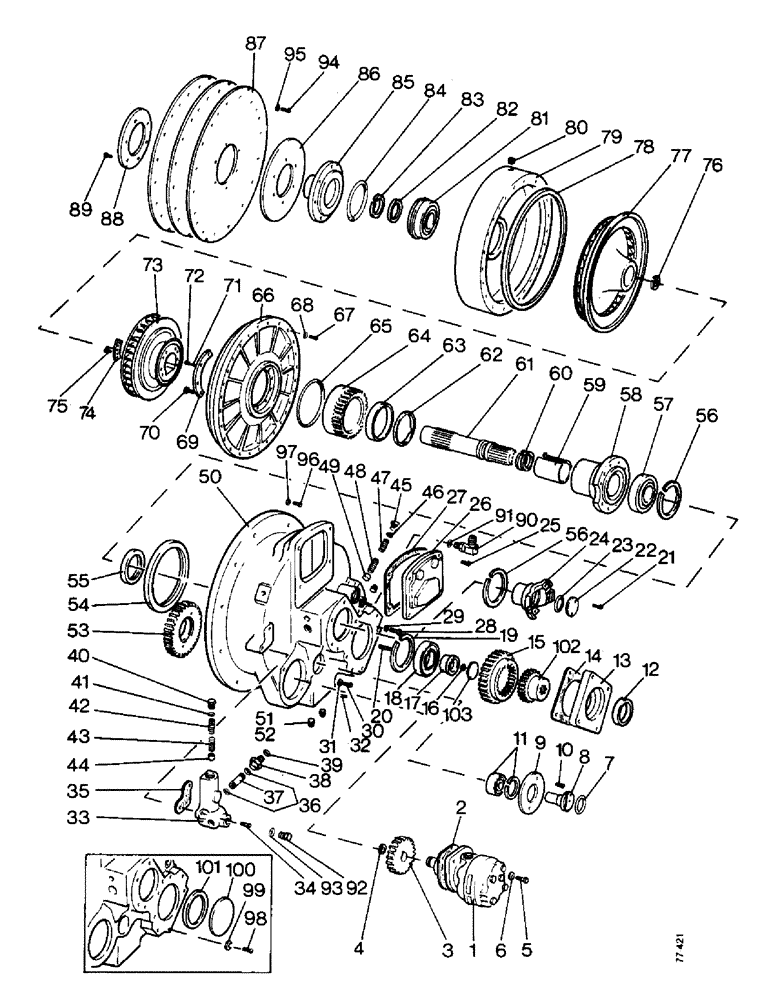

Запчасти Case 850 (B01-1) - TORQUE CONVERTER (03) - TRANSMISSION

E88130

CONVERTER

TORQUE CONVERTER - engine

1шт.

1

E88127

PUMP

- torque converter

1шт.

2

D32000

GASKET

- pump

1шт.

3

D32020

GEAR

- driven

1шт.

4

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

D32117

COPPER WASHER

WASHER, COPPER, Special

2шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

'O'-RING

1шт.

8

D32029

SHAFT

- idler gear

1шт.

9

D32019

PLATE

- retaining

1шт.

10

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

11

D32106

BALL BEARING,0.787" ID x 1.8504" OD x 0.8125"

BEARING - ball

1шт.

12

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

- oil

1шт.

13

D31938

CARRIER

- oil seal

1шт.

14

D32004

GASKET

- carrier

1шт.

15

D32003

GEAR

- driven

1шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8 UNF

1шт.

17

D32032

BEARING,1.3782" OD x 1.03

RETAINER - bearing

1шт.

18

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - ball

1шт.

19

D32069

RING

- snap

1шт.

20

D32067

STUD

- special

1шт.

21

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

22

D32018

PLATE

- yoke retaining

1шт.

23

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

'O'-RING

1шт.

24

D31315

YOKE

- drive shaft

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

D32009

COVER ASSY

PLATE - cover

1шт.

27

D32005

GASKET

- cover

1шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 UNC x 2.1/2 in

6шт.

29

D32117

COPPER WASHER

WASHER, COPPER, Special

6шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

D32118

WASHER

- idler gear shaft

1шт.

32

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

33

D37378

HOUSING

BODY - relief valve

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

D32002

GASKET

- relief valve

1шт.

36

D32114

O-RING,0.75" ID x 0.875" OD

'O'-RING

2шт.

37

D32024

TUBE

- relief valve

1шт.

38

D37379

CONNECTOR, ELEC

CONNECTOR - straight

1шт.

39

D37371

OIL SEAL

'O'-RING

1шт.

40

D32013

PLUG

- relief valve

1шт.

41

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

GASKET - plug

1шт.

42

D32023

SPRING

- outer

1шт.

43

D32022

SPRING

- inner

1шт.

44

D32014

PISTON

- relief valve

1шт.

45

D32013

PLUG

- relief valve

1шт.

46

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

GASKET - plug

1шт.

47

D32031

SPRING

- outer

1шт.

48

D32021

SPRING

- inner

1шт.

49

D32014

PISTON

- relief valve

1шт.

50

D37380

HOUSING

- converter

1шт.

51

273916

PLUG,Hex, 1-5/16" - 12 ORB

Housing Hex Hd, 1 5/16"-12 ORB

3шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'-RING

1шт.

53

D32001

GEAR

- idler

1шт.

54

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

- oil

1шт.

55

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

- oil

1шт.

56

D32070

RING

- snap

2шт.

57

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball

1шт.

58

D31937

CARRIER

- guide

1шт.

59

D32027

SLEEVE

- split

1шт.

60

A20229

RING

- piston

2шт.

61

D32026

SHAFT

- output

1шт.

62

D32034

RING

- piston

1шт.

D38207

GEAR

ASSEMBLY - pump drive

1шт.

63

D32068

BUSHING

- steel backed bronze

1шт.

64

D31999

X

GEAR - pump drive, order D38207 assembly

1шт.

65

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

'O'-RING

1шт.

66

D48856

IMPELLER

- converter

1шт.

67

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

68

A40877

WASHER

- special

24шт.

69

D32016

PLATE

- clamp

2шт.

70

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

8шт.

71

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

72

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

73

D31936

GUIDE

WHEEL - converter

1шт.

74

D32010

PLATE

- clamp

2шт.

75

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - fillister head, 5/16 UNC x 1 in

6шт.

76

A22889

RING

- snap

1шт.

77

D31935

TURBINE

- converter

1шт.

78

D31998

GASKET

- ring

1шт.

79

D32007

HOUSING

- rotating

1шт.

80

221-849

PLUG,Hex Soc, 1/8"-27

- hexagon socket head, 1/8 NPT

2шт.

81

D32105

BEARING

- ball

1шт.

82

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - bearing

1шт.

83

A26946

RING

- snap

1шт.

84

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

'O'-RING

1шт.

85

D32015

WHEEL

PILOT - flywheel

1шт.

86

D32025

SHIM

- flex plate

1шт.

87

D32017

PLATE

FLEX PLATE - converter

3шт.

88

D32028

WASHER

- support

1шт.

89

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

90

D48854

FITTING

- special

1шт.

91

D38602

O-RING,50 mm ID

'O'-RING

1шт.

92

76349

PLUG,9/16" - 18 ORB

Relief valve Hex Hd, 9/16"-18 ORB

1шт.

93

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

94

R14979

SCREW

BOLT - self locking

16шт.

95

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate

16шт.

96

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

10шт.

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 UNC x 1.3/8 in

2шт.

97

92-6

LOCK WASHER,3/8"

12шт.

98

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

99

B15606

WASHER

- special

4шт.

100

D37801

COVER ASSY

COVER - converter, Drawbar models only

1шт.

101

D37799

GASKET

- cover

1шт.

D37030

HUB

- equipment pump drive

1шт.

102

HUB - drive, not supplied separately

1шт.

103

41-24

PLUG

- expansion

1шт.
