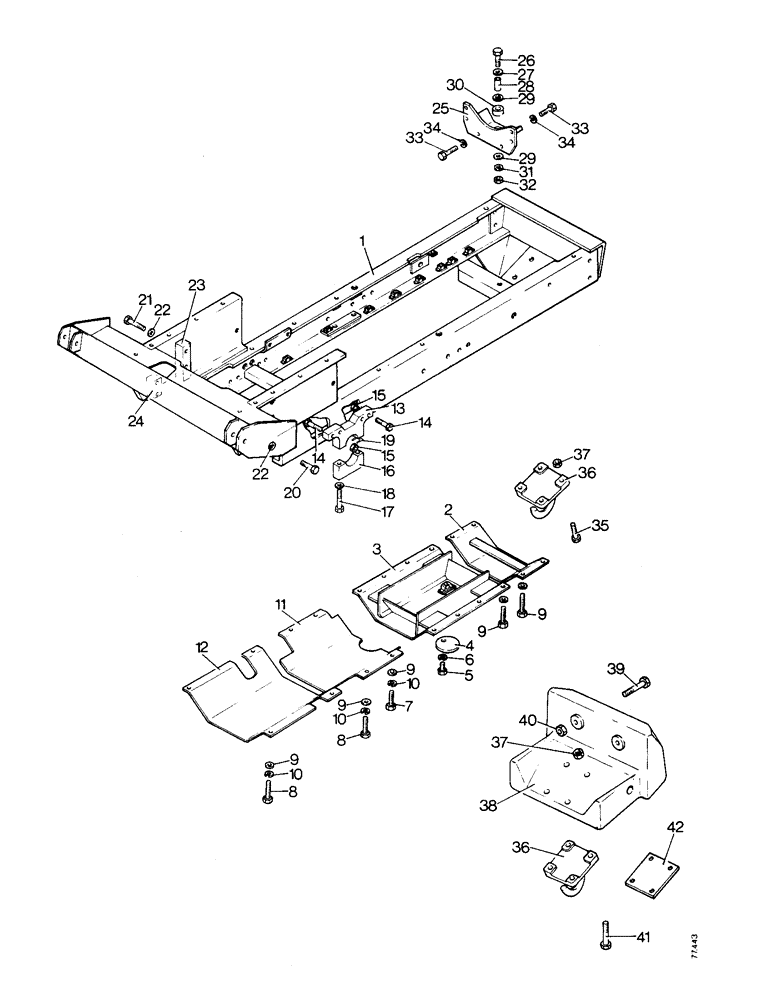

Запчасти Case 850 (G01-1) - ENGINE FRAME AND RELATED PARTS (01) - ENGINE

1

E81043

FRAME - engine

1шт.

2

D40023

TRANSMISSION SLEEVE

- engine, front

1шт.

E89595

+ GUARD - engine, front for France only

1шт.

3

E81070

GUARD - engine, rear

1шт.

E81739

+ GUARD - engine, rear for France only

1шт.

4

E81071

HOSE

COVER - access

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

14шт.

9

195-41

WASHER,5/8"

20шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

20шт.

11

D41371

GUARD

- drive shaft and torque convertor

1шт.

E89590

+ GUARD - drive shaft and torque convertor for France only

1шт.

12

D40017

GUARD

- transmission

1шт.

E89592

+ GUARD - transmission, for France only

1шт.

13

D40008

CLAMP

- pivot shaft

2шт.

14

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 5/8 UNC x 2.1/2 in

8шт.

15

25-1012

NUT,3/4"-10, G5

8шт.

16

D39511

CLAMP

CAP - pivot shaft clamp

2шт.

17

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

- 7/8 UNC x 4 in

4шт.

18

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

19

D33982

BUSHING

SPACER - cap, front cap screws only

2шт.

20

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4 UNC x 3.3/4 in

8шт.

21

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

22

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

10шт.

23

D43889

BLOCK - spacer

2шт.

24

R19226

BLOCK

- spacer

2шт.

25

E81058

SUPPORT

ENGINE MOUNTING BRACKET - front

1шт.

26

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8 UNC x 3.3/4 in

1шт.

27

D35009

WASHER

1шт.

28

E81095

BUSHING

SPACER

1шт.

29

D35011

WASHER

2шт.

30

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

1шт.

31

95-10

WASHER,5/8"

1шт.

32

25-1010

NUT,5/8"-11, G5

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

34

92-8

LOCK WASHER,1/2"

6шт.

35

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

36

71671

PLATE ASSY.

HOOK - pull, front

1шт.

37

25-1012

NUT,3/4"-10, G5

4шт.

38

D40146

COUNTERWEIGHT - front, 1000 lbs

1шт.

39

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

40

25-1016

NUT,1"-8, G5

2шт.

41

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Use with item 36 only Hex, 3/4"-10 x 4 1/2", G5

4шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Use with item 42 only Hex, 3/4"-10 x 4", G5

4шт.

42

74621

WEIGHT

PLATE - counter weight, if used

1шт.
