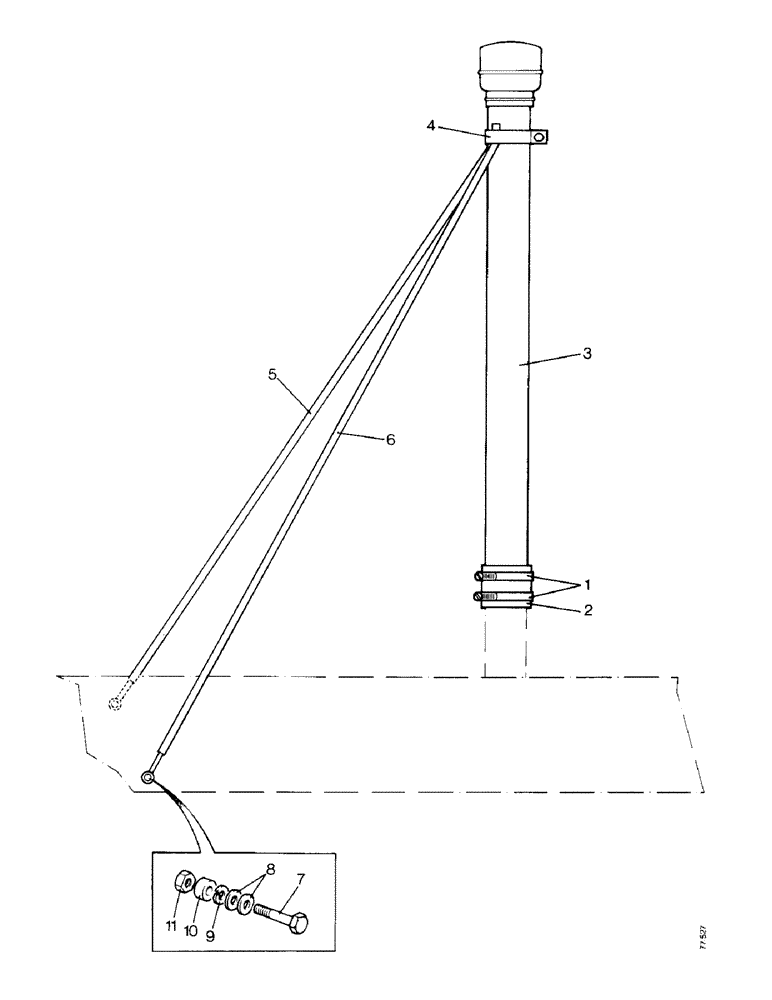

Запчасти Case 850 (A12-1) - AIR INLET EXTENSIONS (01) - ENGINE

1

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

2

R19030

HOSE

- air, Serial Range: cleaner-extension

1шт.

3

R19036

TUBE - extension, 36 in

1шт.

D41369

TUBE - extension, 60 in

1шт.

4

R19604

CLAMP

- brace

1шт.

5

R19594

BRACE

- extension, right hand

1шт.

6

R19593

BRACE - extension, left hand

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 UNC x 1.1/2 in

2шт.

8

195-25

WASHER,3/8"

- 3/8 in

4шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

R14507

SPACER - brace at hood, right hand only

1шт.

11

25-106

NUT,3/8"-16, G5

- 3/8 UNC

2шт.
