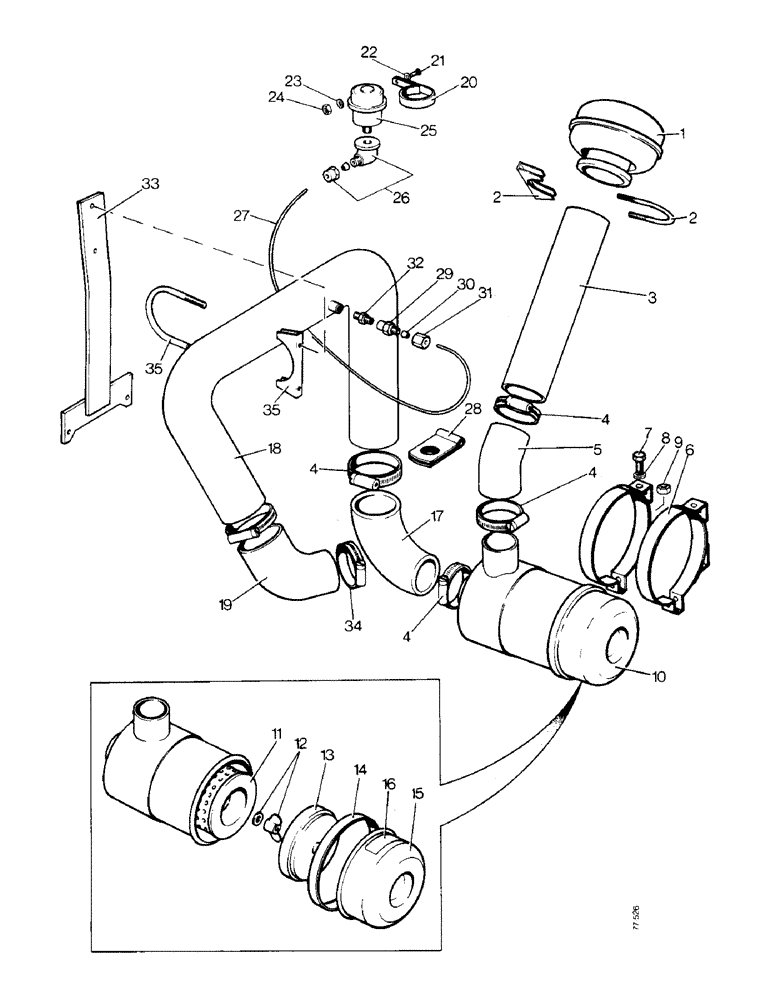

Запчасти Case 850 (A11-1) - AIR CLEANER (01) - ENGINE

1

A10872

CAP

- air cleaner, standard

1шт.

E89483

FILTER, ELEMENT

CAP ASSEMBLY - air cleaner, optional

1шт.

E89486

COVER - air cleaner cap

1шт.

E89487

BOWL - plastic

1шт.

E89488

SLEEVE - air cleaner cap

1шт.

2

A19955

CLAMP

1шт.

3

A39589

MUFFLER

STACK - air cleaner

1шт.

4

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

5шт.

5

D39588

LARGE HOSE

HOSE - stack to air cleaner

1шт.

6

D52449

BRACKET

- mounting

2шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

D36261

CLEANER

AIR CLEANER ASSEMBLY - dry type, standard

1шт.

11

D37975

FILTER

ELEMENT - air cleaner, standard

1шт.

E89118

FILTER, ELEMENT

ELEMENT - air cleaner, special

1шт.

12

F91761

WING NUT

WING NUT AND WASHER

1шт.

13

D37979

BAFFLE

- air cleaner

1шт.

14

R15731

CLAMP

- air cleaner

1шт.

15

D37980

CUP

- air cleaner

1шт.

16

D37974

DECAL

- service instructions

1шт.

17

E81391

HOSE

- elbow

1шт.

18

E81093

TUBE

- air intake

1шт.

19

E81392

HOSE

ELBOW -, Serial Range: tube-manifold

1шт.

20

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- vacuum pressure indicator

1шт.

21

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- 1/4 UNC x 3/4 in

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

195-18

WASHER,1/4"

PLAIN WASHER - 1/4 in

1шт.

24

25-104

NUT,1/4"-20, G5

1шт.

25

D47217

INDICATOR

- vacuum pressure

1шт.

26

D45588

FITTING

ELBOW ASSEMBLY - with sleeve and nut

1шт.

27

D36944

TUBE

- indicator

1шт.

28

D43839

CLAMP

1шт.

29

D35091

PIPE FITTING

CONNECTOR ASSEMBLY - female

1шт.

30

D37176

SLEEVE

- connector

1шт.

31

D37362

TUBE NUT

- connector

1шт.

32

D36264

FITTING

CONNECTOR - special, filtered

1шт.

33

E81233

GUARD

BRACKET - air intake tube support

1шт.

34

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLIP - hose

2шт.

35

A13240

CLAMP,2-5/8" ID

- hose

1шт.
