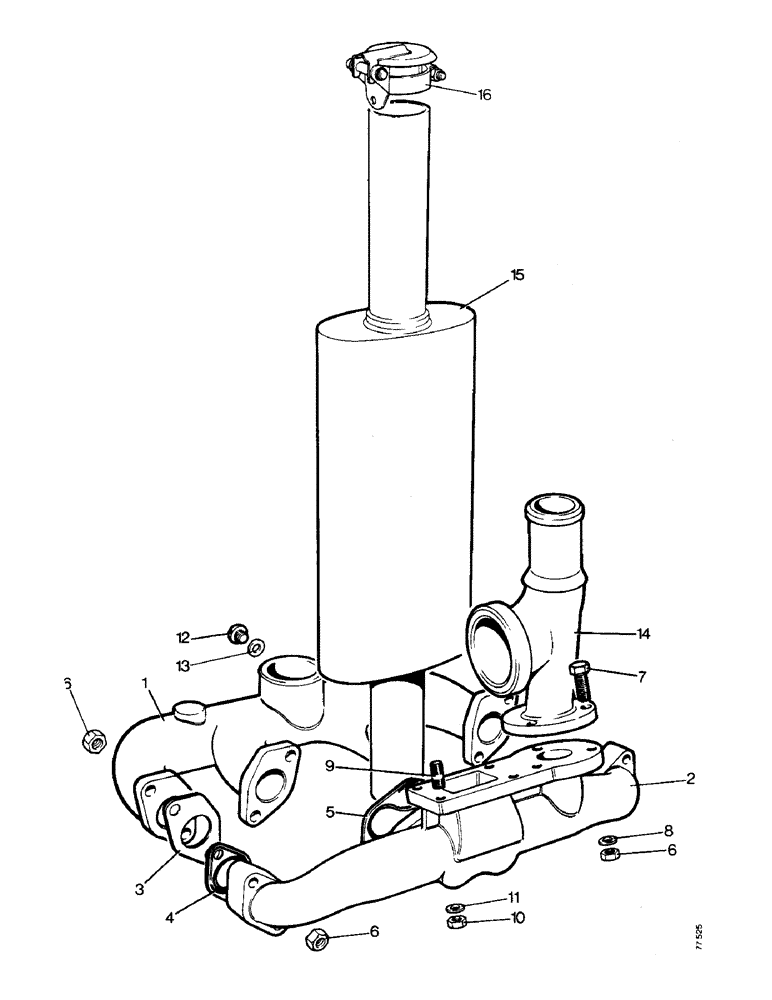

Запчасти Case 850 (A10-1) - MANIFOLDS AND MUFFLER (01) - ENGINE

1

K923244

MANIFOLD

- air inlet

1шт.

2

K929728

MANIFOLD

- exhaust

1шт.

3

K921730

MANIFOLD GASKET

- inlet manifold

4шт.

4

K907344

MANIFOLD GASKET

- exhaust manifold

2шт.

5

K907343

GASKET

- exhaust manifold

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

15шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

SETSCREW - 3/8 UNC x 1.1/4 in

3шт.

8

95-6

WASHER,3/8"

3шт.

9

K608201

STUD

- 3/8 UNC x 1.5/8 in, turbo charger

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

95-6

WASHER,3/8"

4шт.

12

K19591

PLUG

- 1/8 BSP

1шт.

13

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

SEALING WASHER - 3/8 in

1шт.

14

K929730

FLANGE

- exhaust

1шт.

15

K953464

MUFFLER

- exhaust

1шт.

16

K954211

CAP

RAIN CAP

1шт.

E81400

+ STACK - exhaust, for France only

1шт.

A13240

CLAMP,2-5/8" ID

+ CLAMP - muffler, for France only

1шт.
