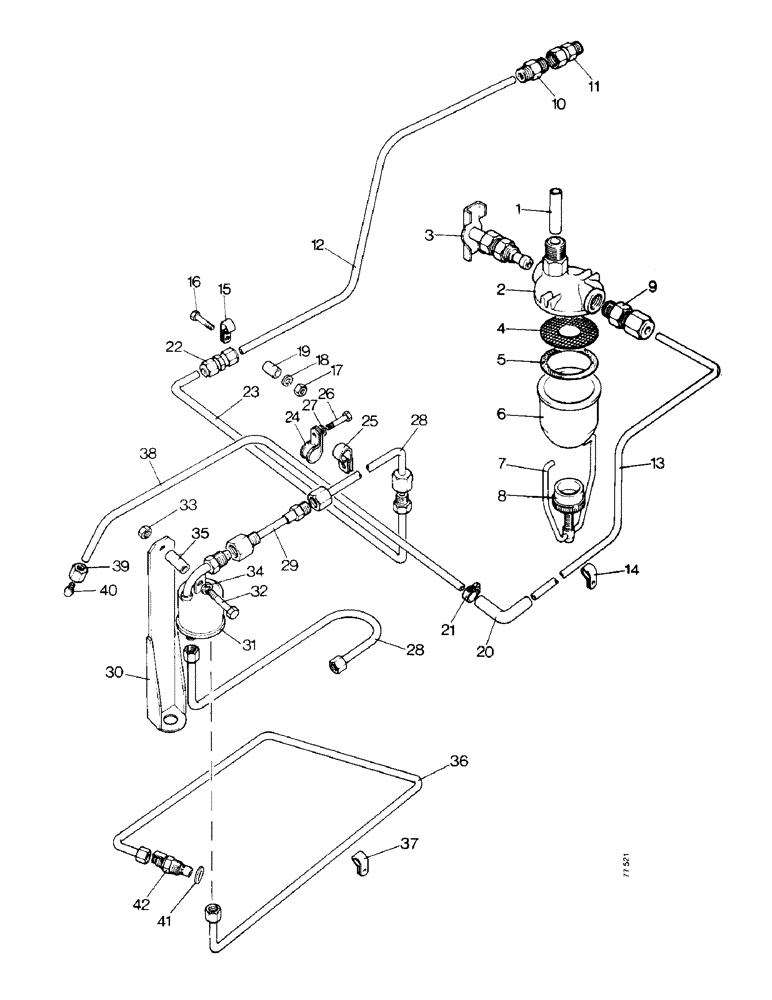

Запчасти Case 850 (A06-1) - FUEL LINES, STRAINER AND THERMOSTART (01) - ENGINE
№
Артикул
Название
Примечание
Количество
33487
STRAINER ELEMENT
STRAINER ASSEMBLY - bowl type
1шт.
1
NLS
NO LONGER SERVICED
TUBE - strainer assembly
1шт.
2
A11214
HEAD
COVER - strainer
1шт.
3
A11200
COCK
VALVE - shut off
1шт.
4
A11211
FILTER SCREEN
SCREEN - strainer
1шт.
5
A11208
GASKET
- bowl
1шт.
6
41933
BOWL
- strainer, metal (if used)
1шт.
A11209
BOWL
- strainer, glass (if used)
1шт.
7
A11212
BAIL
- bowl
1шт.
8
A11210
ADJUSTER
NUT - special, bail
1шт.
9
222-24
FITTING,9/16"-24 x 1/8" NPTF
CONNECTOR - straight
1шт.
10
222-21
FITTING,7/16"-24 x 1/8" NPTF
1шт.
11
E89377
BUSHING
REDUCING BUSH - 1/4 to 1/8 BSP
1шт.
12
E81048
TUBE
- fuel return
1шт.
13
E81049
TUBE
- fuel supply
1шт.
14
49832
CLAMP
2шт.
15
49857
CLAMP
2шт.
16
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
17
25-108
NUT,1/2"-13, G5
- 1/2 UNC
1шт.
18
92-8
LOCK WASHER,1/2"
1шт.
19
D35859
SPACER
2шт.
20
D34989
FUEL HOSE,0.31" ID x 9.00", SAE 30R1
0.31" ID x 9.00", SAE 30R1
1шт.
21
214-300
CLAMP
HOSE CLIP
2шт.
22
222-2
FITTING
FLEXIBLE TUBE UNION - 3/16 in
1шт.
23
E81050
TUBE
ASSEMBLY - fuel return
1шт.
24
515-2348
CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type
2шт.
25
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
2шт.
26
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
27
92-6
LOCK WASHER,3/8"
2шт.
28
K944802
PIPE
ASSEMBLY
2шт.
29
E81091
PIPE
ASSEMBLY
1шт.
30
E89457
BRACKET
- reservoir support
1шт.
31
E89466
RESERVOIR
1шт.
32
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
33
25-104
NUT,1/4"-20, G5
1шт.
34
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
35
D40685
SPACER
- 3/4 in, special
1шт.
36
K944797
PIPE
ASSEMBLY -, Serial Range: reservoir-thermostart
1шт.
37
K621687
CLIP
2шт.
38
E81051
TUBE
- fuel supply
1шт.
39
E89366
NUT
TUBING NUT
1шт.
40
E89367
FERRULE
OLIVE
1шт.
41
K928523
GLOW PLUG
THERMOSTART - CAV No. 1854102
1шт.
42
K19502
WASHER
FIBRE WASHER - 7/8 in
1шт.
Выбрано товаров: 45
