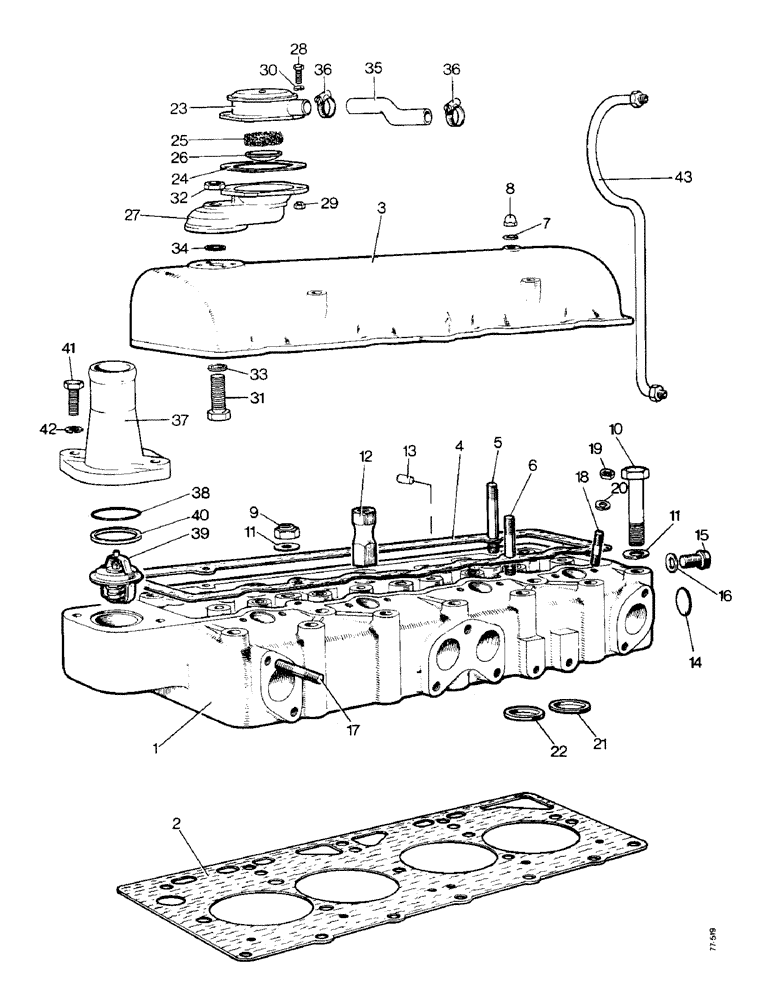

Запчасти Case 850 (A04-1) - CYLINDER HEAD (01) - ENGINE

1

K964533

CYLINDER

HEAD - with valve inserts and plugs

1шт.

2

K953783

CYLINDER HEAD GASKET

GASKET - oil impregnated asbestos, Serial Range: head-block

1шт.

3

K920678

COVER

- cylinder head

1шт.

4

K905229

GASKET,3.97mm Thk

- cylinder head cover

1шт.

5

K608118

STUD

- 5/16 UNC x 3.7/16 in

2шт.

6

K608119

STUD

- 5/16 UNC x 2.13/16 in

2шт.

7

K14988

WASHER

- 5/16 in, copper asbestos

4шт.

8

K607252

NUT

DOMED NUT - 5/16 UNC

4шт.

9

K617594

NUT

- 1/2 UNF, special

5шт.

10

K600870

BOLT

- 1/2 UNC x 4.1/4 in, special

7шт.

11

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- 17/32 in

19шт.

12

K906536

NUT

ELONGATED NUT - 1/2 UNF

7шт.

13

K900431

PLUG

TAPER PLUG

4шт.

14

K623791

PLUG

CORE PLUG - 1.1/4 in

1шт.

15

K19591

PLUG

FLANGED PLUG - 1/8 BSP

1шт.

16

K16732

WASHER

COPPER WASHER - 3/8 in

1шт.

17

K608203

STUD

- 3/8 UNC x 1.7/8 in manifolds

8шт.

K608209

STUD

- 3/8 UNC x 2.1/4 in manifolds

4шт.

K608237

STUD

- 3/8 UNC x 1.3/4 in, conduit to inlet manifold

2шт.

K608216

STUD

- 3/8 UNC x 1.3/8 in, exhaust manifold

1шт.

18

K608107

STUD

- 5/16 UNC x 2.11/16 in, injectors

8шт.

19

9635082

NUT,5/16" - 18, Gr 5

8шт.

20

92-5

LOCK WASHER,5/16"

8шт.

21

K921246

INSERT

- inlet valve seat

4шт.

22

K921247

INSERT

- exhaust valve seat

4шт.

K949214

BREATHER

ASSEMBLY

1шт.

23

K964911

DIAPHRAGM

BODY - with cover and diaphragm

1шт.

24

K947501

GASKET

1шт.

25

K948660

FILTER, ELEMENT

ELEMENT

1шт.

26

K945058

FILTER

1шт.

27

K949205

BASE

1шт.

28

K613986

SCREW

SETSCREW - No. 10 UNF x 5/8 in

4шт.

29

K617080

NUT

- No. 10 UNF

4шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

SETSCREW - 1/2 UNC x 1.1/2 in breather to cylinder head cover

1шт.

32

24-148

LOCKNUT - 1/2 UNC breather to cylinder head cover

1шт.

33

K626443

WASHER

COPPER WASHER - 1/2 in breather to cylinder head cover

1шт.

34

K626901

O-RING,40554" ID x 40575" OD x 0.12"

'O'RING breather to cylinder head cover

1шт.

35

E81229

HOSE

- engine breather to inlet hose

1шт.

36

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

HOSE CLIP

2шт.

37

K915630

OUTLET

PIPE - water outlet

1шт.

38

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

39

K900368

THERMOSTAT

1шт.

40

K910411

GASKET

1шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW - 5/16 UNC x 1 in

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

K902765

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.
