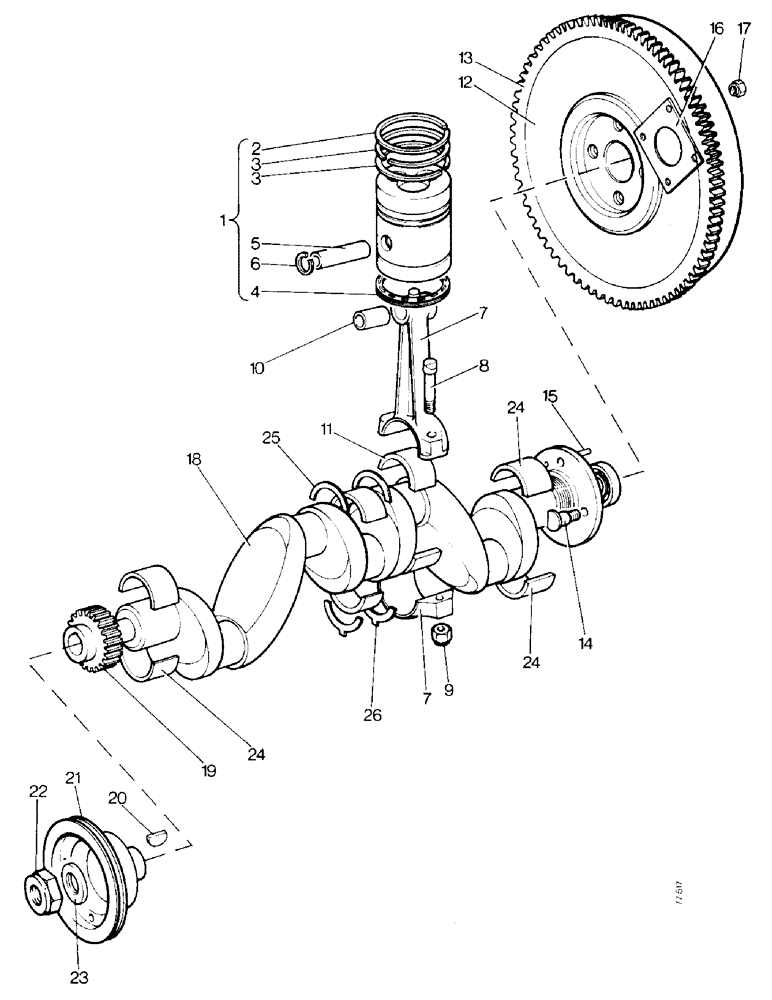

Запчасти Case 850 (A02-1) - PISTONS, CRANKSHAFT AND FLYWHEEL (01) - ENGINE

1

K944573

PISTON & RINGS KIT

PISTON ASSEMBLY - standard

4шт.

2

K943881

RING, PISTON

PISTON RING - No. 1 compression

1шт.

3

K943882

RING, PISTON

PISTON RING - No. 2 and 3 compression

2шт.

4

K917409

SCRAPER

PISTON RING - scraper

1шт.

5

K928547

PISTON PIN

GUDGEON PIN

1шт.

6

K34501

RING, SNAP

CIRCLIP - 1.1/4 in internal

2шт.

7

K923027

PITMAN ASSY.

CONNECTING ROD AND CAP ASSEMBLY

4шт.

8

K928445

SHIM

BOLT - 7/16 BSF, connecting rod

2шт.

9

K623151

LOCK NUT

PHILIDAS NUT - 7/16 BSF

2шт.

10

K31669

BEARING

BUSH - small end

1шт.

11

K929148

BEARING SET

BEARING - big end halves, standard

8шт.

12

K950926

FLYWHEEL

AND STARTER RING ASSEMBLY

1шт.

13

K946819

GEAR

STARTER RING

1шт.

14

K903431

STEP BOLT

- 7/16 UNF, special

4шт.

15

K10629

PIN

DOWEL - 1/2 x 15/16 in

1шт.

16

K910883

WASHER

TAB WASHER

1шт.

17

K616968

NUT

- 7/16 UNF, special

4шт.

18

K963412

CRANKSHAFT

- with bearings and thrust washers

1шт.

19

K945094

GEAR

- 34 teeth

1шт.

20

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(No. 606) #9, 3/16" x 3/4"

1шт.

21

K954961

PULLEY

1шт.

22

K623300

NUT

- 1 in, special

1шт.

23

K626403

WASHER

- 1 in, special

1шт.

24

K928997

BEARING SET

MAIN BEARING - upper and lower, standard

6шт.

25

K928998

WASHER

THRUST WASHER - upper, standard

2шт.

26

K928999

WASHER

THRUST WASHER - lower, standard

2шт.
