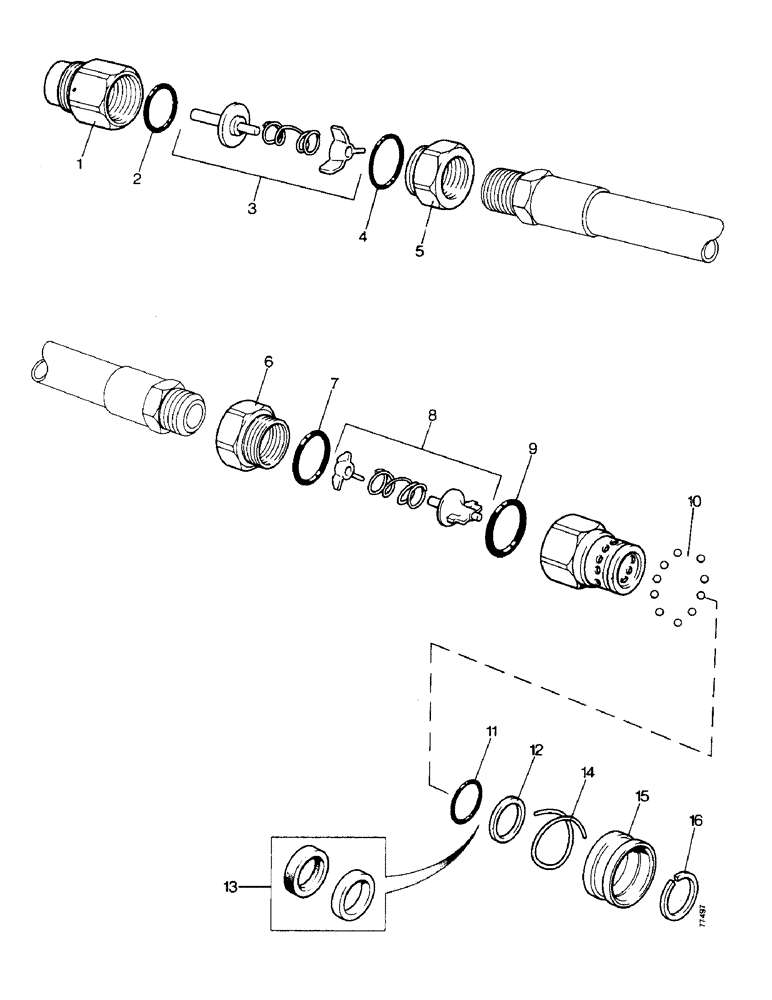

Запчасти Case 850 (L08-1) - HYDRAULIC COUPLINGS (07) - HYDRAULIC SYSTEM

D31617

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male, 'Snap-Tite'

1шт.

1

D31971

BODY

- male coupling

1шт.

2

D31984

SEAL

- valve, part of repair kit D31456

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling, part of repair kit D31456

1шт.

4

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, part of repair kit D31456

1шт.

5

D31975

FITTING

- end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female, 'Snap-Tite'

1шт.

6

D31975

FITTING

- end

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, part of repair kit D31456

1шт.

8

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, part of repair kit D31456

1шт.

9

D31984

SEAL

- valve, part of repair kit D31456

1шт.

10

D31982

KIT

BALL KIT - ten balls

1шт.

11

D31983

O-RING

'O'RING - part of seal kit D42469

1шт.

12

D31978

RING

- 'O'ring back up, part of seal kit D42469

1шт.

13

D42469

SEAL

KIT - seal, part of repair kit D31456

1шт.

14

D31979

VALVE SPRING

SPRING - sleeve, part of repair kit D31456

1шт.

15

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

16

D31981

RING

- retaining

1шт.

D31456

KIT

- hydraulic coupling repair

1шт.
