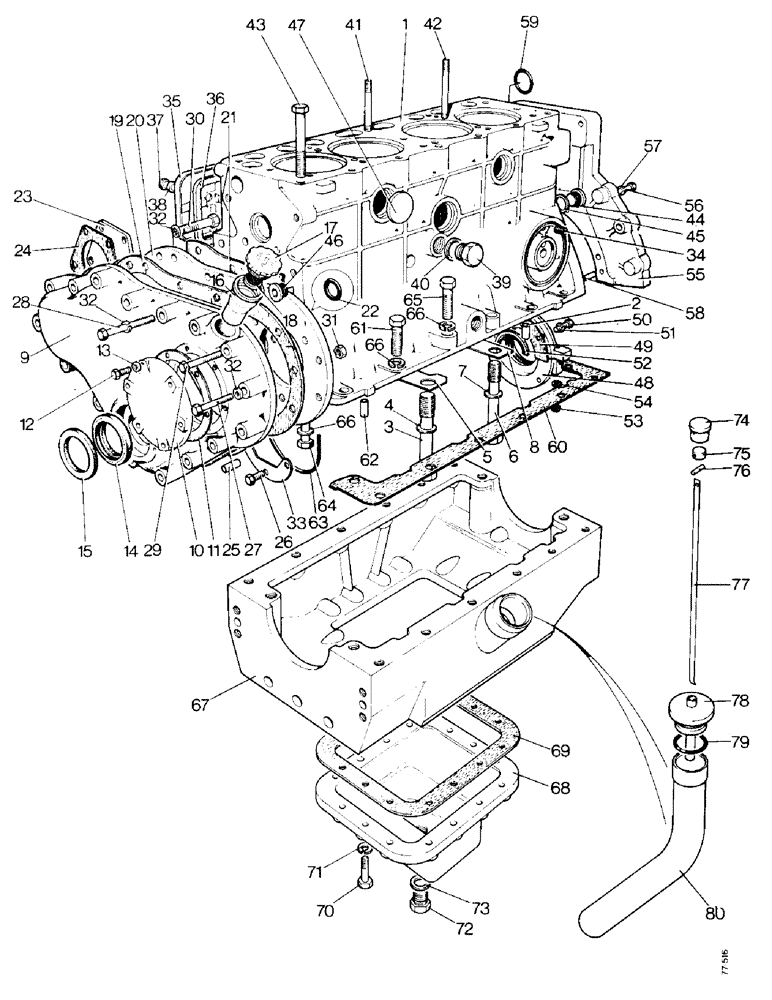

Запчасти Case 850 (A01-1) - CYLINDER BLOCK ASSEMBLY (01) - ENGINE

1

K963410

BLOCK

CYLINDER BLOCK ASSEMBLY - with bearing caps

1шт.

2

K12258

PIN

DOWEL - 5/16 x 3/4 in main bearing caps to cylinder block

6шт.

3

K940395

BOLT

- 3/4 UNC x 4.1/4 in, centre cap main bearing caps to cylinder block

2шт.

4

K940397

SHEET

WASHER - 3/4 in main bearing caps to cylinder block

2шт.

5

K940396

WASHER

TABWASHER - centre cap main bearing caps to cylinder block

1шт.

6

K928965

BOLT

- 5/8 UNC x 4.1/8 in, front and rear caps main bearing caps to cylinder block

4шт.

7

K929557

WASHER

WASHER - 5/8 in main bearing caps to cylinder block

4шт.

8

K928996

WASHER

TABWASHER - front and rear caps main bearing caps to cylinder block

2шт.

K80062

COVER

TIMING COVER ASSEMBLY

1шт.

9

K944347

COVER

- timing gear

1шт.

10

K924397

COVER

PLATE - inspection

1шт.

11

K924398

FLEXIBLE JOINT

GASKET

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SETSCREW - 5/16 UNC x 7/8 in

6шт.

13

92-5

LOCK WASHER,5/16"

6шт.

14

K623448

SEAL

OIL SEAL

1шт.

15

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

FELT SEAL

1шт.

K964748

TUBE

FILLER TUBE AND CAP ASSEMBLY

1шт.

16

K950287

NECK FILLER

TUBE - oil filler

1шт.

17

K948427

CAP

FILLER CAP

1шт.

18

K921678

FILTER

SCREEN

1шт.

19

K920794

GASKET

-, Serial Range: cover-plate

1шт.

20

K940802

CARRIER

PLATE

1шт.

21

K902031

GASKET

-, Serial Range: plate-block

1шт.

22

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O'RING

1шт.

23

K915158

PLATE

BLANKING PLATE

1шт.

24

K915157

GASKET

- blanking plate to carrier plate

1шт.

25

K621807

PIN

DOWEL - 5/16 x 1/2 in

2шт.

26

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SETSCREW - 5/16 UNC x 3/4 in

4шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

9шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

30

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

3шт.

32

92-5

LOCK WASHER,5/16"

21шт.

33

K902036

GASKET

BAFFLE PLATE

1шт.

34

K905217

PLUG

TAPER PLUG - oil cleaner mounting boss

1шт.

35

K10029

COVER

- tappets

2шт.

36

K10030

GASKET

- tappet cover

2шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

38

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 1/2 in

2шт.

39

K19581

PLUG

DRAIN PLUG - 1/4 BSP

1шт.

40

K19501

WASHER

WASHER - fibre, 3/8 in

1шт.

41

K906538

STUD

- 1/2 UNC/UNF x 4.7/8 in cylinder head

10шт.

42

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5.5/16 in cylinder head

2шт.

43

K600870

BOLT

- 1/2 UNC x 4.1/4 in, special cylinder head

7шт.

44

K609440

PLUG

- 5/8 UNC, oil gallery, rear

1шт.

45

K15512

WASHER

- copper, 5/8 in

1шт.

46

K609449

PLUG

- 5/8 UNC, oil gallery, front

1шт.

47

K623797

PLUG

CORE PLUG - 1.3/4 in

5шт.

48

K964843

RETAINER

- oil

1шт.

49

K950938

GASKET,0.18mm Thk

- retainer to cylinder block

1шт.

50

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SETSCREW - 5/16 UNC x 1.1/2 in

5шт.

51

92-5

LOCK WASHER,5/16"

5шт.

52

K940135

OIL SEAL

PACKING - oil retainer, halves

2шт.

53

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

CAP SCREW - 5/16 UNC x 1.1/2 in

2шт.

54

92-5

LOCK WASHER,5/16"

2шт.

55

K947028

SUPPORT

PLATE - starter

1шт.

56

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

57

92-6

LOCK WASHER,3/8"

6шт.

58

K12258

PIN

DOWEL

2шт.

59

K623523

O-RING,1.802" OD x 0.143" Width

'O'RING - camshaft rear bearing

1шт.

60

K902044

GASKET

- left hand sump frame to cylinder block

1шт.

K902045

GASKET

- right hand sump frame to cylinder block

1шт.

61

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1.1/8 in sump frame to cylinder block

10шт.

62

K621834

PIN

DOWEL - 7/16 x 1.1/4 in

2шт.

63

K902046

SEAL

2шт.

64

K600467

BOLT

- 3/8 UNC x 8.3/4 in, special

4шт.

65

K600406

BOLT

SETSCREW - 3/8 UNC x 1.3/4 in, special

2шт.

66

92-6

LOCK WASHER,3/8"

16шт.

67

K945957

MOTOR HOUSING

FRAME - sump

1шт.

68

K945958

SUMP

COVER - sump

1шт.

69

K946049

GASKET

- sump cover

1шт.

70

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

14шт.

71

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

72

K623825

PLUG

- flanged, 1/2 BSP, sump cover

1шт.

73

K626793

WASHER

- aluminium, sump cover plug

1шт.

K950103

DIPSTICK

ASSEMBLY

1шт.

74

K949715

KNOB

CAP - dipstick

1шт.

75

K949714

BUSHING

BUSH - dipstick

1шт.

76

K623930

SPRING

PIN - roll

1шт.

77

K949716

DIPSTICK

BLADE - dipstick

1шт.

78

K949713

CAP

- filler tube

1шт.

79

K623687

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

'O'RING

1шт.

80

K946836

PIPE

TUBE - oil filler

1шт.
