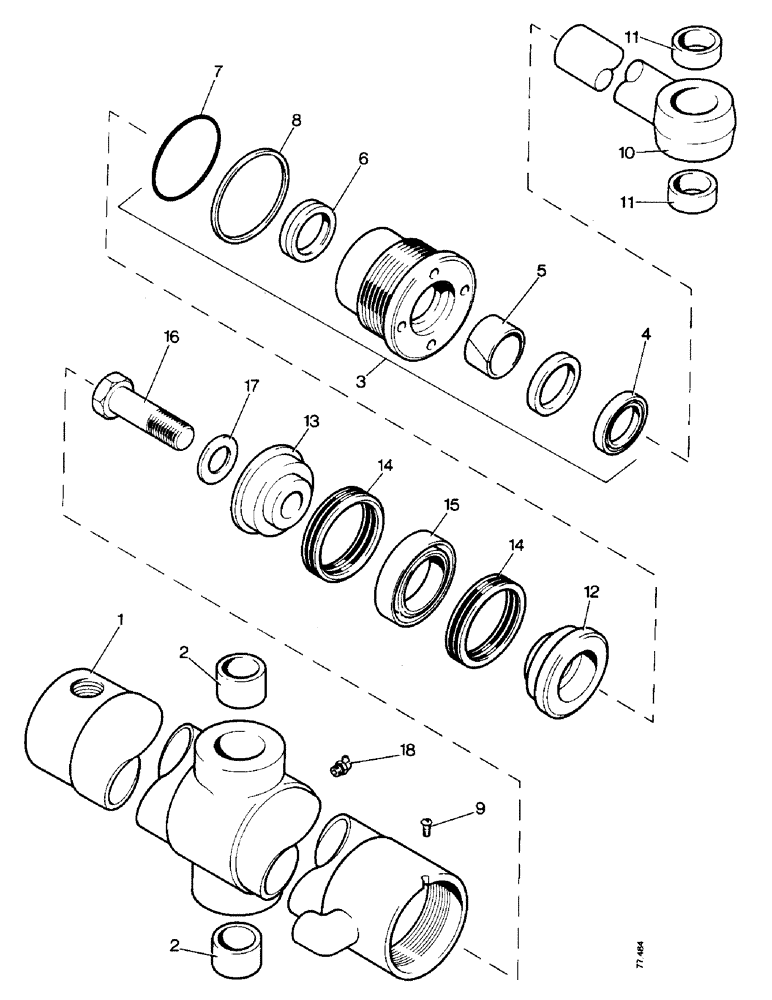

Запчасти Case 850 (L03-1) - RIPPER CYLINDER - 4 IN DIA X 11 IN STROKE (07) - HYDRAULIC SYSTEM

G33511

CYLINDER

ASSEMBLY - stamped G33511 on gland

1шт.

1

D39753

TUBE

ASSEMBLY - cylinder

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

3

G34625

GLAND

ASSEMBLY

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer part of seal kit G34626

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - centre part of seal kit G34626

1шт.

6

D36970

CUP

SEAL - piston rod part of seal kit G34626

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

'O'RING - gland part of seal kit G34626

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring part of seal kit G34626

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - No 8 UNC x 1/4 in, self tapping

1шт.

10

G33512

ROD

ASSEMBLY - piston

1шт.

11

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

12

G33515

PISTON

- rod end, split

1шт.

13

D30744

PISTON

- bolt end, split

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, part of seal kit G34626

2шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - centre bearing

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Special Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34626

SEAL

KIT - cylinder repair

1шт.
