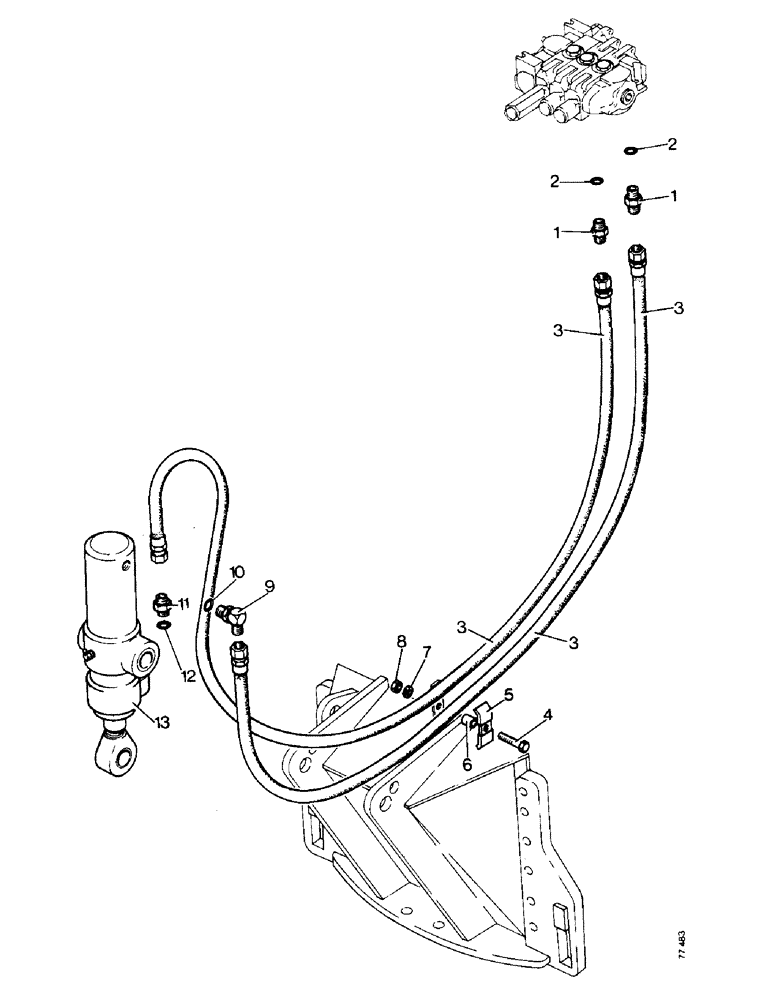

Запчасти Case 850 (L02-1) - RIPPER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight male

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'RING

1шт.

3

D39883

HOSE

- valve to ripper, 53 in

2шт.

4

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

5

D33316

CLAMP

- hose

1шт.

6

D33554

BUSHING

SPACER - clamp

1шт.

7

195-21

WASHER,5/16"

1шт.

8

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 UNC

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj, cylinder closed end 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

D39885

BEARING

CONNECTOR - adjustable restrictor, cylinder rod end

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

G33511

CYLINDER

- ripper, see Figure L03-1

1шт.
