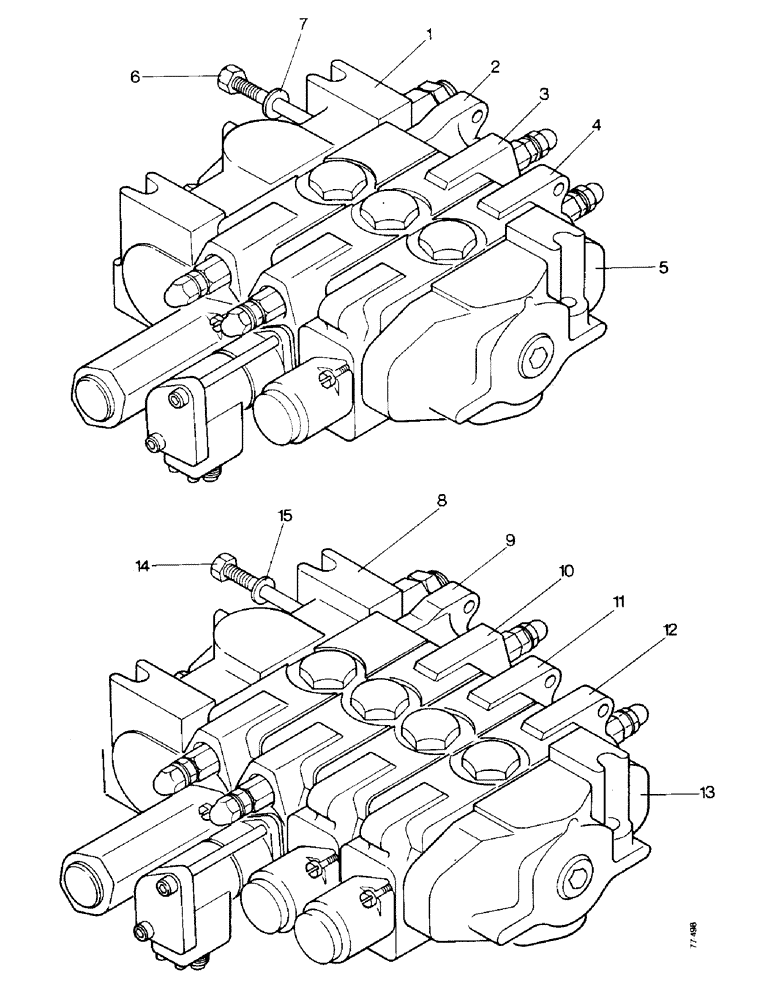

Запчасти Case 850 (J18-1) - LOADER CONTROL VALVES (07) - HYDRAULIC SYSTEM

R33068

VALVE

- Loader control, 3 spool

1шт.

1

D41796

VALVE

INLET SECTION - see Figure J19-1

1шт.

2

D66224

KNIFE SECTION

LIFT SECTION - see Figure J20-1

1шт.

3

D66223

X

DUMP SECTION - with magnetic detent, see Figure J22-1

1шт.

4

D66221

X

RIPPER OR 4-IN-1 BUCKET SECTION - see Figure J23-1

1шт.

5

D38360

VALVE

OUTLET SECTION - see Figure J18-1

1шт.

6

R20429

STUD

ASSEMBLY - valve

4шт.

7

195-33

WASHER,1/2"

- 1/2 in

4шт.

R33069

VALVE - Loader control, 4 spool

1шт.

8

D41796

VALVE

INLET SECTION - see Figure J18-1

1шт.

9

D66224

KNIFE SECTION

LIFT SECTION - see Figure J20-1

1шт.

10

D66223

X

DUMP SECTION - with magnetic detent, see Figure J22-1

1шт.

11

D66212

VALVE

4-IN-1 BUCKET SECTION - see Figure J21-1

1шт.

12

D66221

X

RIPPER SECTION - see Figure J22-1

1шт.

13

D38360

VALVE

OUTLET SECTION - see Figure J18-1

1шт.

14

D36476

STUD

ASSEMBLY - valve

4шт.

15

195-33

WASHER,1/2"

- 1/2 in

4шт.
