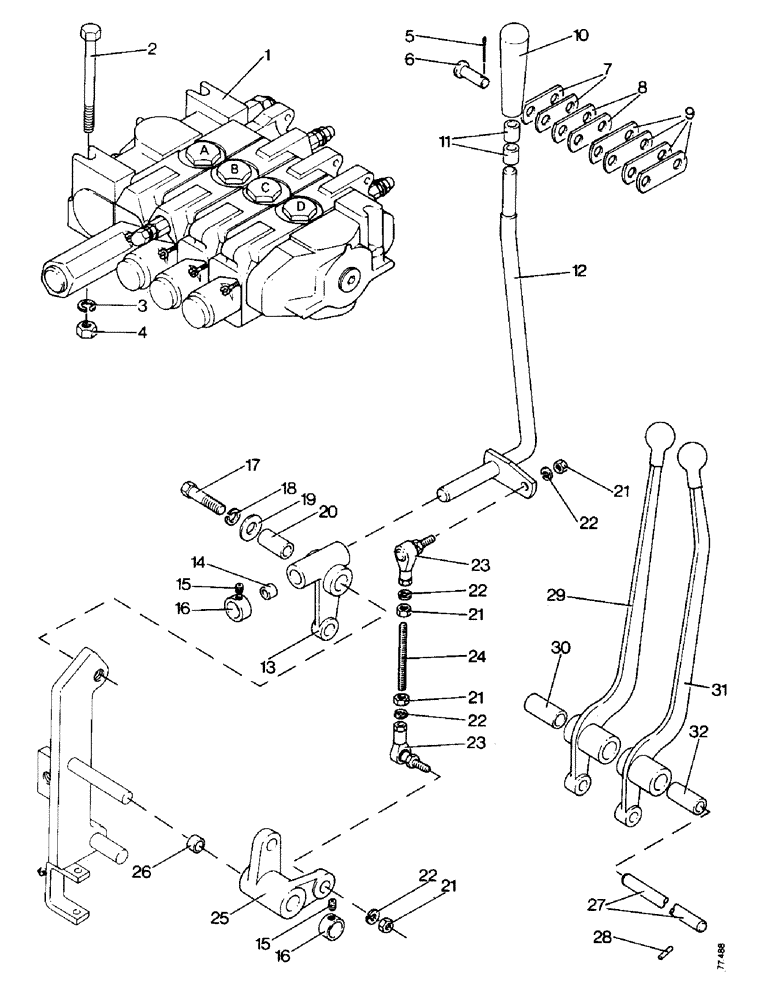

Запчасти Case 850 (J16-1) - 4 SPOOL CONTROL VALVES AND LEVERS (07) - HYDRAULIC SYSTEM

1

R30686

VALVE - Angle Tilt Pitch Dozer, see Figure H13-1

1шт.

R33069

VALVE - Loader, see Figure J18-1

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- 1/2 UNC

3шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

7

R22269

LINK

- spool A, Loader and Dozer

2шт.

8

R22269

LINK

- spool B, Dozer

2шт.

D45513

LINK

- spool B, Loader

2шт.

9

D36230

LEVER

LINK - spools C and D

4шт.

10

D38654

KNOB

- control lever

1шт.

11

D38655

RING

- spacer

2шт.

12

E81468

LEVER

- control, lift and tilt

1шт.

13

R33282

PIVOT

LEVER - pivot

1шт.

14

R30880

BUSHING

BUSH - lever

2шт.

15

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

16

D43620

COLLAR

- levers

2шт.

17

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2 UNF x 2.1/4 in

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

195-33

WASHER,1/2"

- 1/2 in

1шт.

20

R33281

BUSHING

BUSH - lever

1шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- 3/8 UNF

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

D40908

BALL JOINT

2шт.

24

D40917

STUD

1шт.

25

R33283

DIPPER

LEVER - bell crank

1шт.

26

R30880

BUSHING

BUSH - lever

2шт.

27

NLS

NO LONGER SERVICED

PIN - lever mounting

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

29

D40875

LEVER

- angle control

1шт.

30

D40392

BUSHING

BUSH - lever

1шт.

31

D40873

LEVER

- rear equipment control

1шт.

32

D40392

BUSHING

BUSH - lever

1шт.
