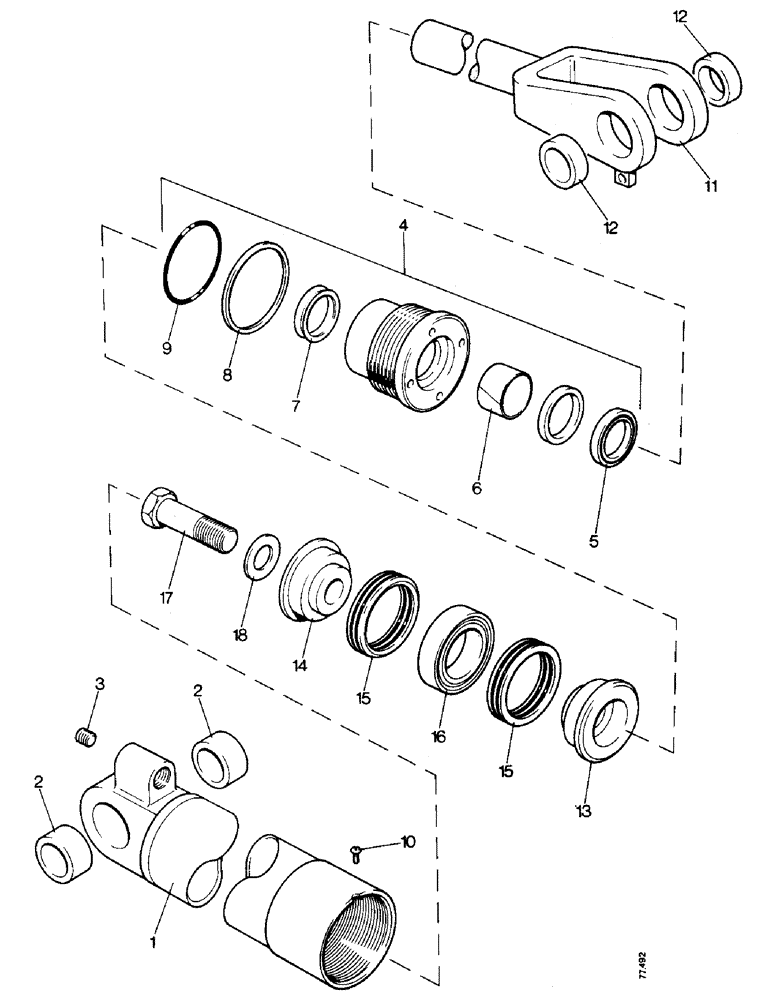

Запчасти Case 850 (J13-1) - LOADER LIFT CYLINDERS - 4.1/2 DIA X 30.1/8 STROKE (07) - HYDRAULIC SYSTEM

G32690

CYLINDER

ASSEMBLY - lift, right hand

1шт.

NLS

NO LONGER SERVICED

CYLINDER ASSEMBLY - lift, left hand

1шт.

1

G32876

TUBE

ASSEMBLY - cylinder, right hand

1шт.

G32875

TUBE

ASSEMBLY - cylinder, left hand

1шт.

2

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 NPT

1шт.

4

G34627

GLAND

ASSEMBLY - with centre bearing

1шт.

G32775

GLAND

ASSEMBLY - no centre bearing

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer, part of seal kits G32285 and G34628

1шт.

6

G34620

BUSHING

BEARING - centre, part of G34627 and seal kit G34628

1шт.

7

G39359

GEAR WHEEL

SEAL - piston rod, part of seal kits G32285 and G34628

1шт.

8

G32284

BACK-UP RING

- 'O' ring back up, part of seal kits G32285 and G34628

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

'O'RING - gland, part of seal kits G32285 and G34628

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No 8-32 UNC x 1/4 in

1шт.

11

G34122

ROD

ASSEMBLY - piston, right hand with lug

1шт.

G34123

ROD

ASSEMBLY - piston, left hand

1шт.

12

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- piston rod

2шт.

13

D46425

PISTON

- split, rod end

1шт.

14

D46931

PISTON

- split, bolt end

1шт.

15

D47205

PACKING

ASSEMBLY - piston, part of seal kits G32285 and G34628

2шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - centre bearing

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt

1шт.

G32285

SEAL

KIT - for use with cylinder with no centre bearing

1шт.

G34628

SEAL

KIT - for use with cylinder with centre bearing

1шт.
