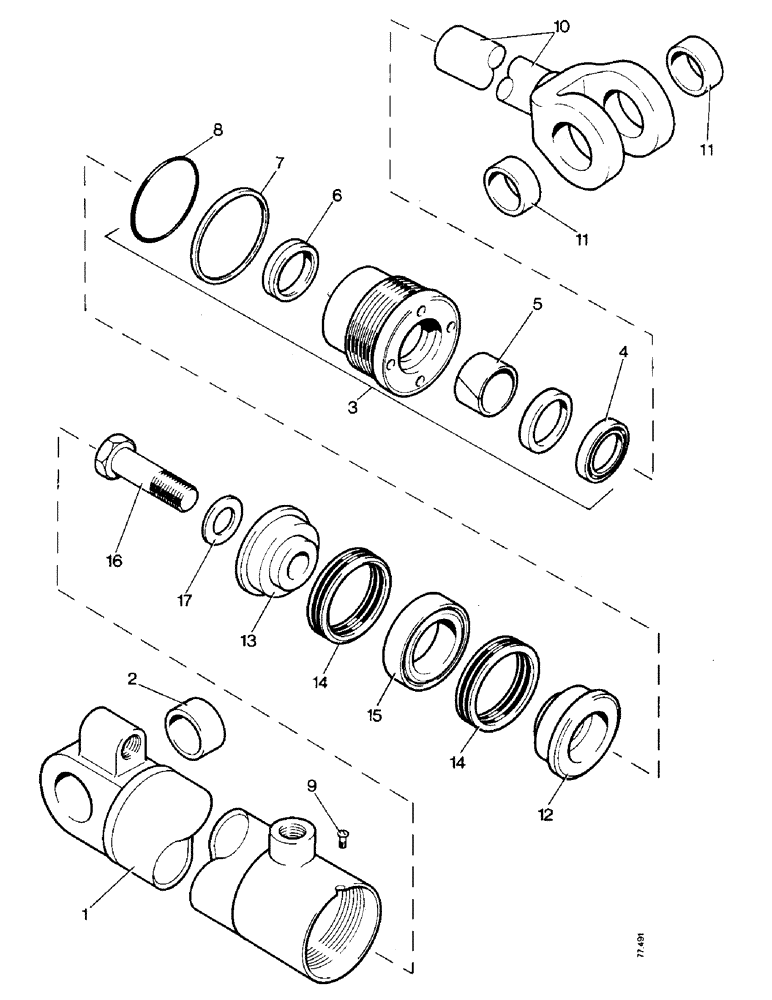

Запчасти Case 850 (J12-1) - HYDRA-LEVELLING CYLINDER - 4 DIA X 7.1/2 STROKE (07) - HYDRAULIC SYSTEM

G33635

CYLINDER

ASSEMBLY

2шт.

1

G32629

TUBE

ASSEMBLY - cylinder

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

1шт.

3

G34331

GLAND

ASSEMBLY - with centre bearing

1шт.

G33190

GLAND

ASSEMBLY - no centre bearing

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer, part of seal kits G32615 and G34594

1шт.

5

G34322

BEARING

- centre, part of G34331 and seal kit G34594

1шт.

6

D36971

RING

SEAL - piston rod, part of seal kits G32615 and G34594

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Part of seal kits G32615 and G34594

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

'O'RING - gland, part of seal kits G32615 and G34594

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No 8-32 UNC x 1/4 in

1шт.

10

G33636

ROD

ASSEMBLY - piston

1шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

12

G33159

PISTON

- split, rod end

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, part of seal kits G32615 and G34594

2шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - centre bearing

1шт.

16

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Piston Hex, 1 1/4"-12 x 2 1/2", G8

1шт.

17

G32351

WASHER

- piston bolt

1шт.

G32615

KIT

SEAL KIT - for use with cylinder with no centre bearing

1шт.

G34594

SEAL

KIT - for use with cylinder with centre bearing

1шт.
