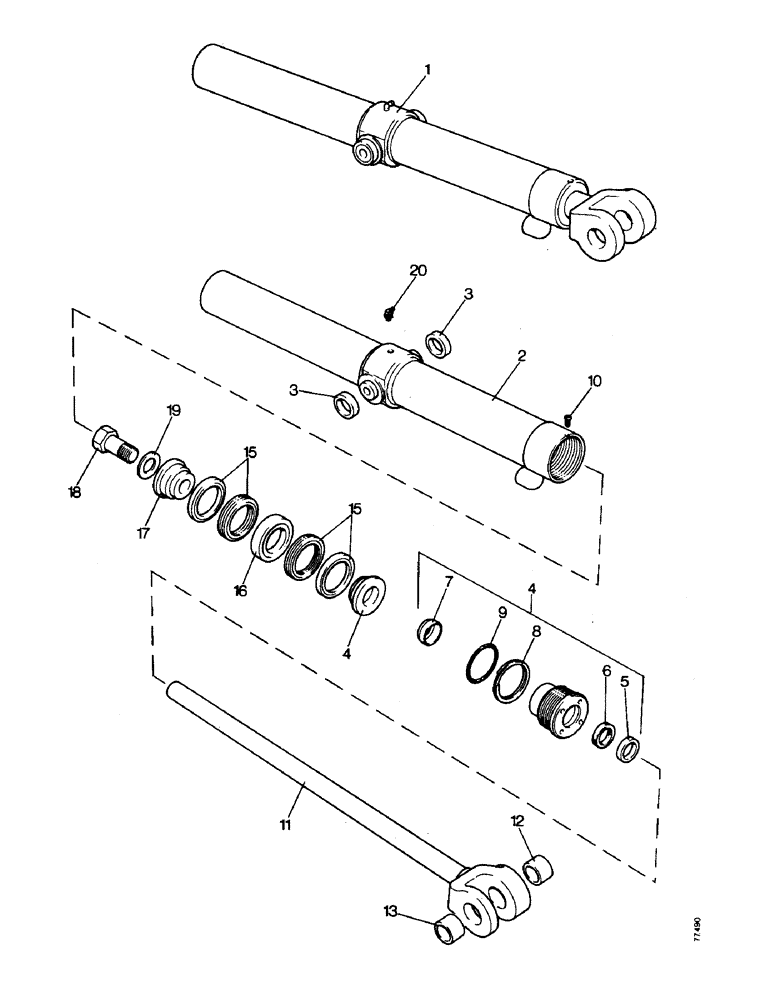

Запчасти Case 850 (J11-1) - LOADER DUMP CYLINDER - 3.1/2 DIA X 28.3/4 STROKE (07) - HYDRAULIC SYSTEM

1

G32577

CYLINDER

ASSEMBLY - dump, right hand

1шт.

G32578

CYLINDER

ASSEMBLY - dump, left hand

1шт.

2

D39692

TUBE

ASSEMBLY - right hand

1шт.

D39693

TUBE

ASSEMBLY - left hand

1шт.

3

D31511

BUSHING

- tube

2шт.

4

G32743

GLAND

ASSEMBLY

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod outer, part of seal kit G32228

1шт.

6

D36970

CUP

SEAL - rod, part of seal kit G32228

1шт.

7

D27432

SHIM

- rod inner, part of seal kit G32228

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- 'O' ring back up, part of seal kit G32228

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

'O'RING - part of seal kit G32228

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - No 8-32 UNC x 1/4 in

1шт.

11

D43387

ROD

ASSEMBLY - piston

1шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- rod, 1.1/4 in

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- rod, 3/4 in

1шт.

14

D28369

PISTON

- split, rod end

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston, part of seal kit G32228

2шт.

16

D47208

RING

- packing, centre bearing

1шт.

17

D28367

PISTON

- split, bolt end

1шт.

18

D32861

BOLT

- piston

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 45degree, 1/8 NPT

1шт.

G32228

KIT

SEAL KIT - cylinder repair

1шт.
