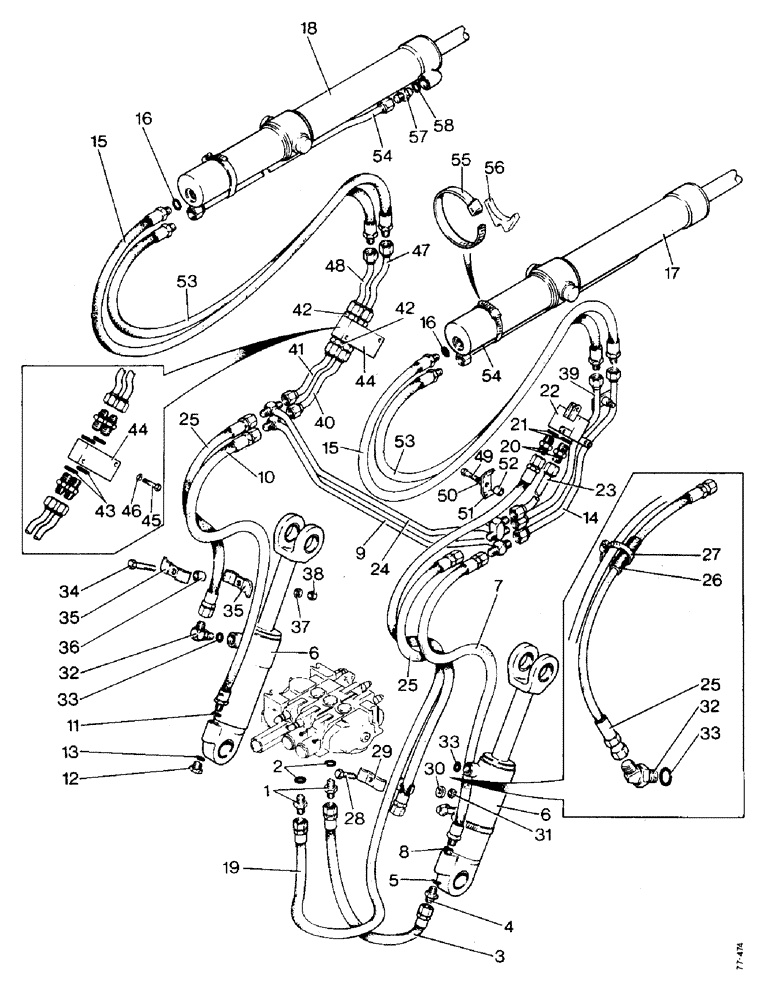

Запчасти Case 850 (J10-1) - LOADER DUMP AND HYDRA-LEVELLING HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - tube, straight
2шт.
2
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
'O'RING
1шт.
3
D43612
HOSE
- right hand levelling cylinder, eye end 31 in
1шт.
4
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR, HYD., , Tube, straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring
1шт.
5
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
6
G33635
CYLINDER
- hydra levelling, see Figure J12-1
2шт.
7
D39806
HOSE
- right hand levelling cylinder, eye end 37.1/2 in
1шт.
8
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
9
D39807
TUBE
- crossover, lower
1шт.
10
D40723
HOSE
- left hand levelling cylinder, eye end 37.1/2 in
1шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
12
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
Hydraulic Hex Hd, 1 1/16"-12 ORB
1шт.
13
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
14
D41347
TUBE
- crossover tube to closed end, right hand dump cylinder
1шт.
15
D39801
HOSE
- dump cylinder, closed end 33.1/2 in
2шт.
16
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
17
G32577
CYLINDER
- dump, right hand, see Figure J10-1
1шт.
18
G32578
CYLINDER
- dump, left hand, see Figure J10-1
1шт.
19
D42709
HOSE
- control valve to hydraulic lock valve, 90 in
1шт.
20
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR, HYD., , Tube, straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring
2шт.
21
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
22
D41050
VALVE
- hydraulic lock, anti rollback, see Figure J08-1
1шт.
23
D42637
TUBE
- valve to upper crossover tube
1шт.
24
D45329
TUBE
- crossover, upper
1шт.
25
D42401
HOSE
- levelling cylinder rod end, 27.1/2 in
2шт.
26
D95251
TUBE
GUARD - hose
1шт.
27
214-261
HOSE CLAMP,#40, 2.06" - 3", Type F Worm
CLAMP - hose
1шт.
28
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
29
R15257
CLAMP
- hose
2шт.
30
195-25
WASHER,3/8"
- 3/8 in
1шт.
31
131-6
LOCK NUT,3/8"-16, GC
NUT - 3/8 UNC
1шт.
32
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
- adjustable, 45degree
2шт.
33
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
34
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
35
D40236
CLAMP
- hose
2шт.
36
D33554
BUSHING
SPACER - clamp
1шт.
37
195-25
WASHER,3/8"
- 3/8 in
1шт.
38
131-6
LOCK NUT,3/8"-16, GC
NUT - 3/8 UNC
1шт.
39
D42693
TUBE
- upper crossover to right hand dump cylinder, rod end
1шт.
40
D46848
TUBE
- lower crossover to relief valve
1шт.
41
D46920
TUBE
- upper crossover to relief valve
1шт.
42
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR, HYD., , Adapter, Straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring
4шт.
43
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
'O'RING
1шт.
44
D46850
VALVE
- relief, see Figure J17-1
1шт.
45
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
46
92-6
LOCK WASHER,3/8"
2шт.
47
D46844
TUBE
- lower, valve to dump cylinder closed end
1шт.
48
D46846
TUBE
- upper, valve to dump cylinder, rod end
1шт.
49
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 UNC x 1.1/2 in
4шт.
50
92-6
LOCK WASHER,3/8"
4шт.
51
D40236
CLAMP
- tube
4шт.
52
D36040
BUSHING
SPACER - clamp
4шт.
53
D39802
TUBE
HOSE - dump cylinder, rod end 32.1/2 in
2шт.
54
D39813
TUBE
- hose to dump cylinder port, rod end
2шт.
55
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP - tube
2шт.
56
D38648
BLOCK
SADDLE -, Serial Range: tube-cylinder
2шт.
57
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
CONNECTOR - tube, straight
2шт.
58
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
Выбрано товаров: 58
