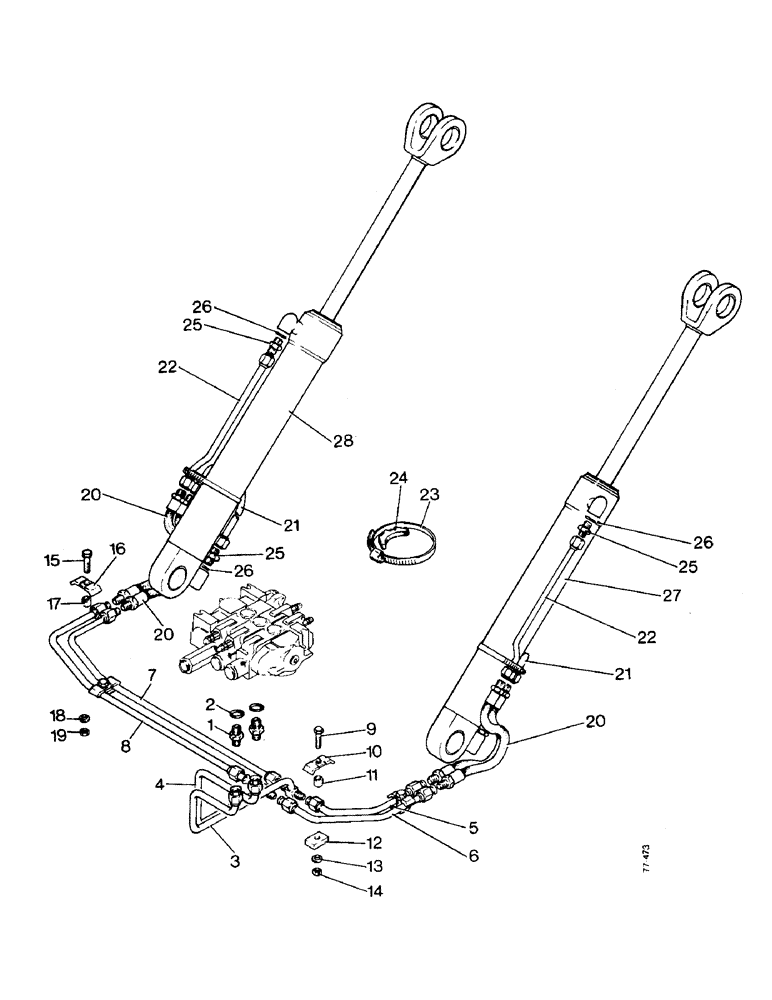

Запчасти Case 850 (J09-1) - LOADER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'RING

1шт.

3

D39796

PIPE

TUBE - valve to lift cylinder, closed end

1шт.

4

D39798

TUBE

- valve to lift cylinder, rod end

1шт.

5

D39788

TUBE

- intermediate, valve to right hand lift cylinder, closed end

1шт.

6

D39790

TUBE

- intermediate, valve to right hand lift cylinder, rod end

1шт.

7

D39792

TUBE

- intermediate, valve to left hand lift cylinder, closed end

1шт.

8

D39794

TUBE

- intermediate, valve to left hand lift cylinder, rod end

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

D40236

CLAMP

- tube

2шт.

11

D36040

BUSHING

SPACER - tube clamp

2шт.

12

D39782

BUSHING

SPACER - tube clamp

2шт.

13

195-25

WASHER,3/8"

- 3/8 in

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC

2шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

16

D40236

CLAMP

- tube

2шт.

17

D36040

BUSHING

SPACER - tube clamp

2шт.

18

195-25

WASHER,3/8"

- 3/8 in

2шт.

19

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC

2шт.

20

D39783

HOSE

- lift cylinders, 22 in

4шт.

21

D39786

TUBE

- lift cylinder, closed end

2шт.

22

D39784

TUBE

- lift cylinder, rod end

2шт.

23

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube to cylinder

2шт.

24

R24703

SUPPORT

SADDLE - tube

2шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Tube, straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

4шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

'O'RING

1шт.

27

G32690

CYLINDER

- lift, right hand see Figure J13-1

1шт.

28

NLS

NO LONGER SERVICED

CYLINDER - lift, left hand see Figure J13-1

1шт.
