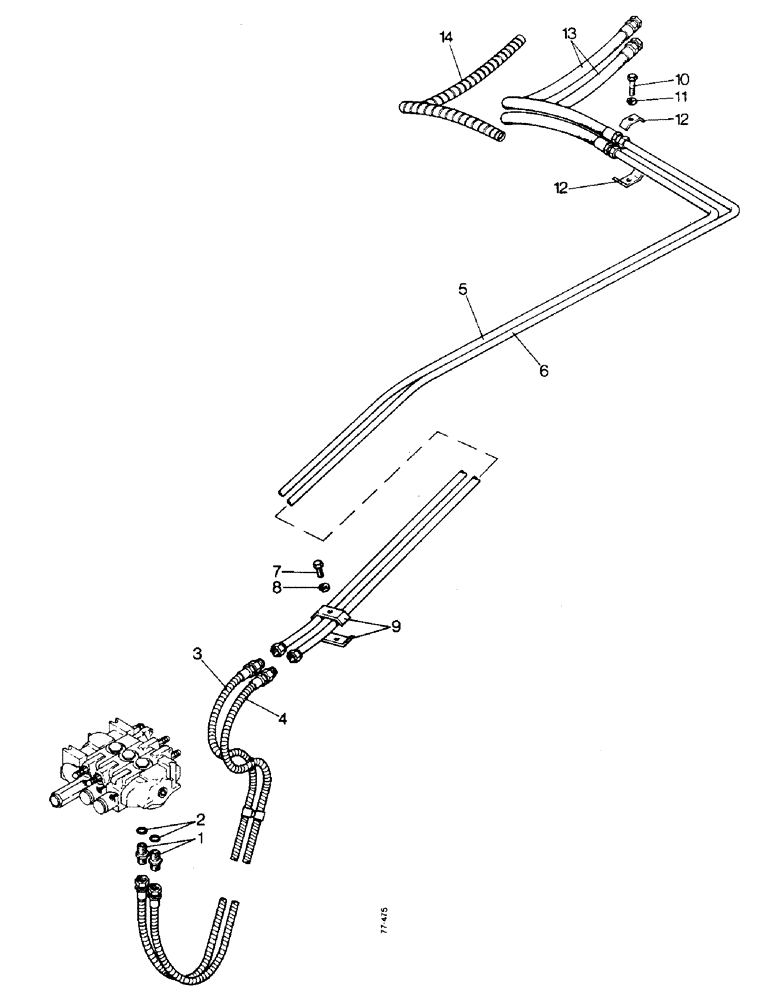

Запчасти Case 850 (J06-1) - 4-IN-1 BUCKET HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

'O'RING

1шт.

3

D42512

HOSE

- rear port to clam cylinder closed end, 76.1/2 in

1шт.

4

D42511

HOSE

- front port to clam cylinder rod end, 72 in

1шт.

5

D42508

TUBE

- valve to clam cylinder, closed end

1шт.

6

D42506

TUBE

- valve to clam cylinder, rod end

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D42504

CLAMP

- tube

2шт.

10

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

D42504

CLAMP

- tube

2шт.

13

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- to clam cylinder

2шт.

14

E89127

ARMOUR - hose

2шт.
