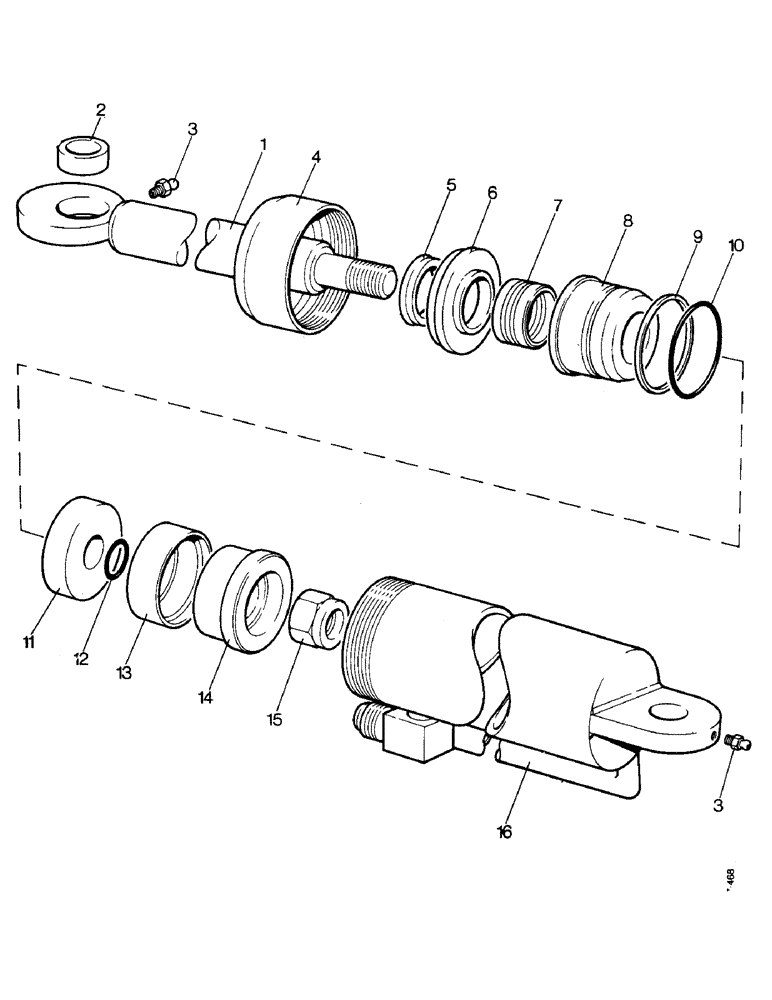

Запчасти Case 850 (J05-1) - 4-IN-1 BUCKET CYLINDER (07) - HYDRAULIC SYSTEM

E86177

CYLINDER

ASSEMBLY

2шт.

1

E87796

ROD

PISTON ROD

1шт.

2

E86179

BUSHING

BUSH

1шт.

3

E86180

FITTING

- grease

2шт.

4

E86181

BUSHING

BUSH - retainer

1шт.

5

E86182

SEAL

RING - scraper, part of seal kit E86359

1шт.

6

E86183

RETAINER

- gland packing

1шт.

7

E87797

CYLINDER

PACKING - chevron, part of seal kit E86359

1шт.

8

E86185

BUSHING

BUSH - gland

1шт.

9

E86186

RING

WASHER - back up, part of seal kit E86359

1шт.

10

E86187

O-RING

'O'RING - part of seal kit E86359

1шт.

11

E86188

PISTON

- half

1шт.

12

E86189

O-RING

'O'RING - part of seal kit E86359

1шт.

13

E86190

SEAL

- double acting, part of seal kit E86359

1шт.

14

E86191

PISTON

- half

1шт.

15

E86192

NUT

- nyloc

1шт.

16

E86193

TUBE

CYLINDER - tube assembly

1шт.

E86359

SEAL

CYLINDER SEAL KIT

1шт.
