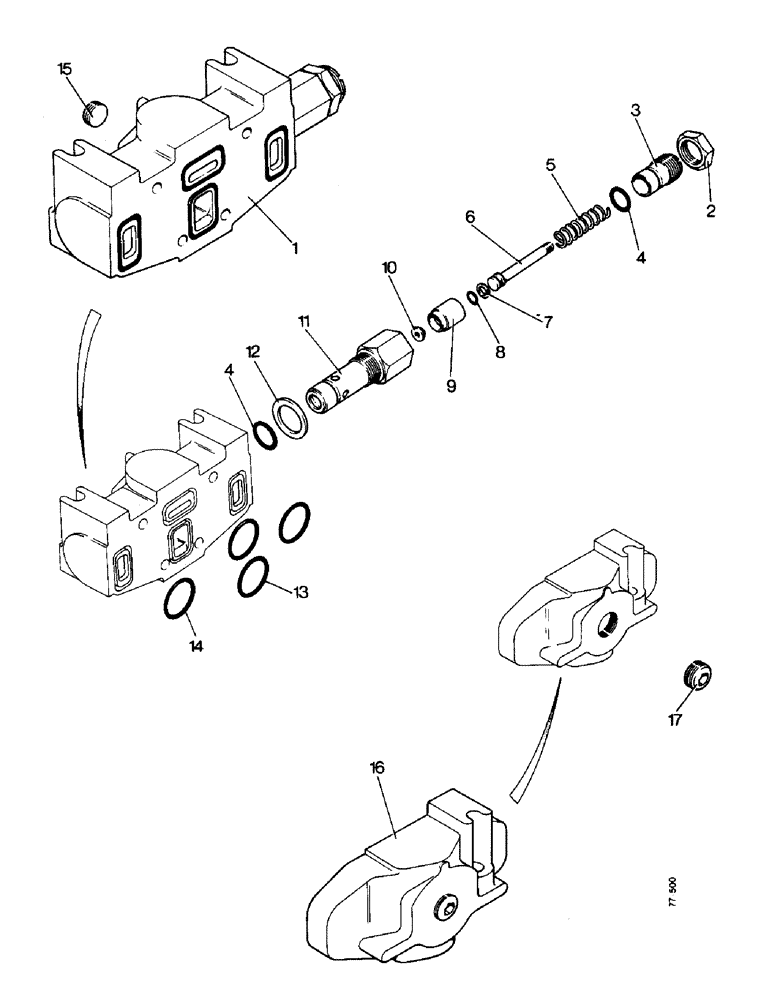

Запчасти Case 850 (H14-1) - CONTROL VALVE INLET AND OUTLET SECTIONS (07) - HYDRAULIC SYSTEM

1

D41796

VALVE

INLET SECTION - control valve, Loader and Dozer 3 or 4 spool

1шт.

D32126

FILTER

CARTRIDGE - relief

1шт.

2

R12507

LOCK NUT

- lock, adjusting screw

1шт.

3

R21364

SCREW

- spring adjusting

1шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' RING

2шт.

5

D32476

SPRING

- compression

1шт.

6

R16125

PLUNGER

- displacement

1шт.

7

R12509

RING

- back up

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

'O' RING

1шт.

9

R12510

SEAT

- floating

1шт.

10

R16123

WASHER, THRUST

SNUBBER - check valve

1шт.

11

D39700

KIT

SHELL ASSEMBLY - cartridge

1шт.

12

D40822

WASHER

- gasket

1шт.

13

L32985

GASKET

- quad ring

1шт.

14

L35522

O-RING

SEAL - quad ring

3шт.

15

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4 NPT

1шт.

16

D38360

VALVE

OUTLET SECTION - control valve, Loader and Dozer 3 or 4 spool

1шт.

17

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1 in NPT

1шт.
