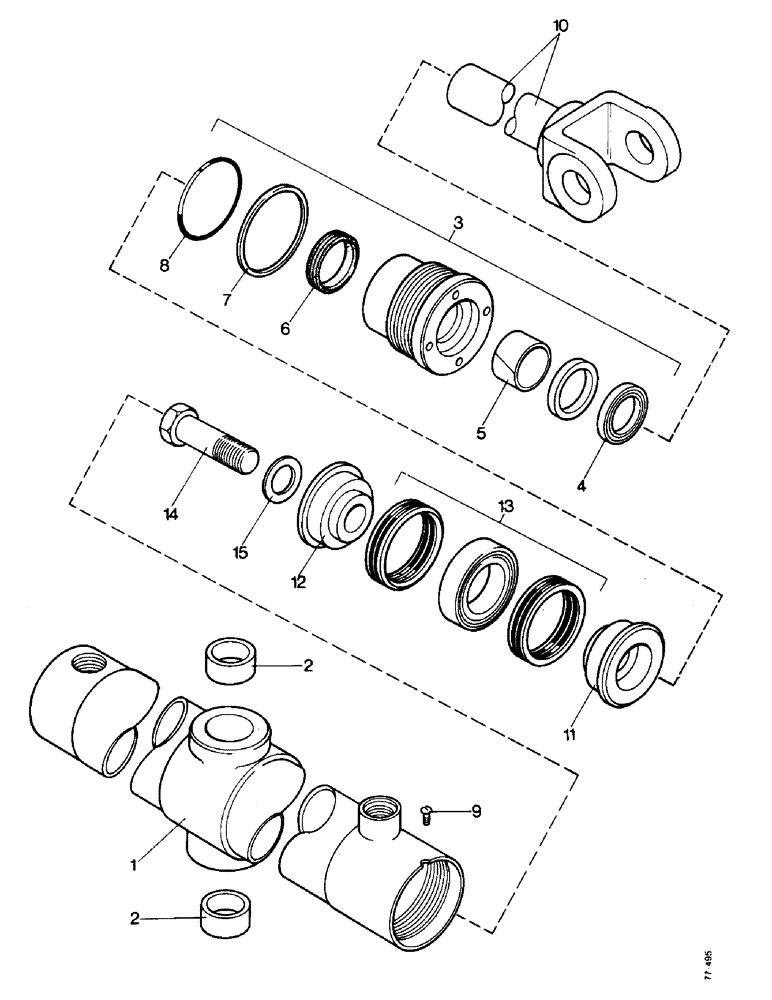

Запчасти Case 850 (H09-1) - DOZER LIFT CYLINDER - 3 IN DIA X 31 IN STROKE (07) - HYDRAULIC SYSTEM

G33738

CYLINDER

ASSEMBLY - lift

2шт.

1

D48059

TUBE

ASSEMBLY - cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

3

G34328

GLAND

ASSEMBLY - with centre bearing

1шт.

G33485

GLAND

ASSEMBLY - no centre bearing

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer, part of seal kit G32292

1шт.

5

G34302

BEARING

- centre, part of G34328 and seal kit G32292

1шт.

6

D36969

CUP

SEAL - piston rod, part of seal kit G32292

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- 'O' ring back up, part of seal kit G32292

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING - gland, part of seal kit G32292

1шт.

D27706

WIPER SEAL

WIPER - piston rod, inner, part of G33485 and seal kit G32292

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 UNC x 1/4 in

1шт.

10

G33734

ROD

- piston

1шт.

11

G33150

PISTON

- split, rod end

1шт.

12

D28366

PISTON

- split, bolt end

1шт.

13

G33151

PACKING

ASSEMBLY - piston, part of seal kit G32292

2шт.

14

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

Piston Hex, 3/4-16 x 2 1/2", G8

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

G32292

KIT

SEAL KIT - cylinder repair

1шт.
