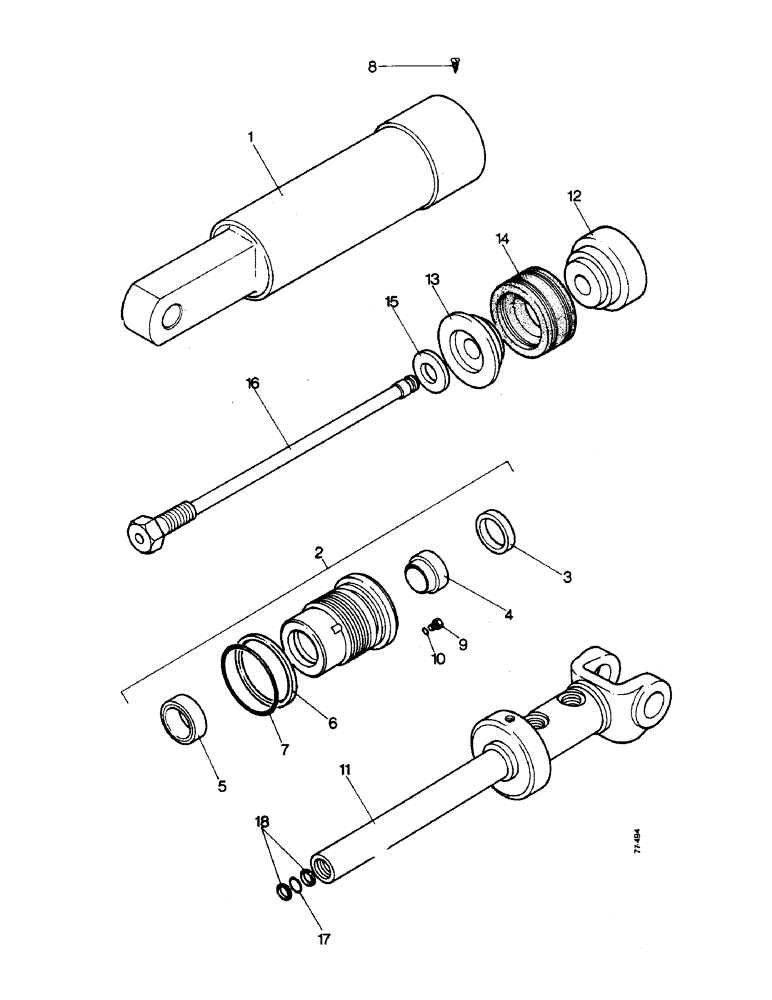

Запчасти Case 850 (H08-1) - DOZER TILT & PITCH CYLINDER - 3.1/2 IN DIA X 6 IN STROKE (07) - HYDRAULIC SYSTEM

G34281

CYLINDER

ASSEMBLY - tilt and pitch

2шт.

1

D46827

CYLINDER

TUBE - cylinder

1шт.

2

GLAND ASSEMBLY

1шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

4

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

WIPER - rod, inner

1шт.

5

D36970

CUP

SEAL - piston rod

1шт.

6

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- 'O' ring back up

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

'O' RING

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 UNC x 1/4 in

1шт.

9

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

ASSEMBLY - bleed

1шт.

10

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, plug

1шт.

11

G34282

ROD

- piston

1шт.

12

G34287

PISTON ASSY.

PISTON - split, rod end

1шт.

13

D28367

PISTON

- split, bolt end

1шт.

14

G33237

PACKING

ASSEMBLY - piston

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

16

G34288

TUBE

- piston rod, inner

1шт.

17

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

'O' RING - tube

1шт.

18

G32626

RING

- 'O' ring back up

2шт.
