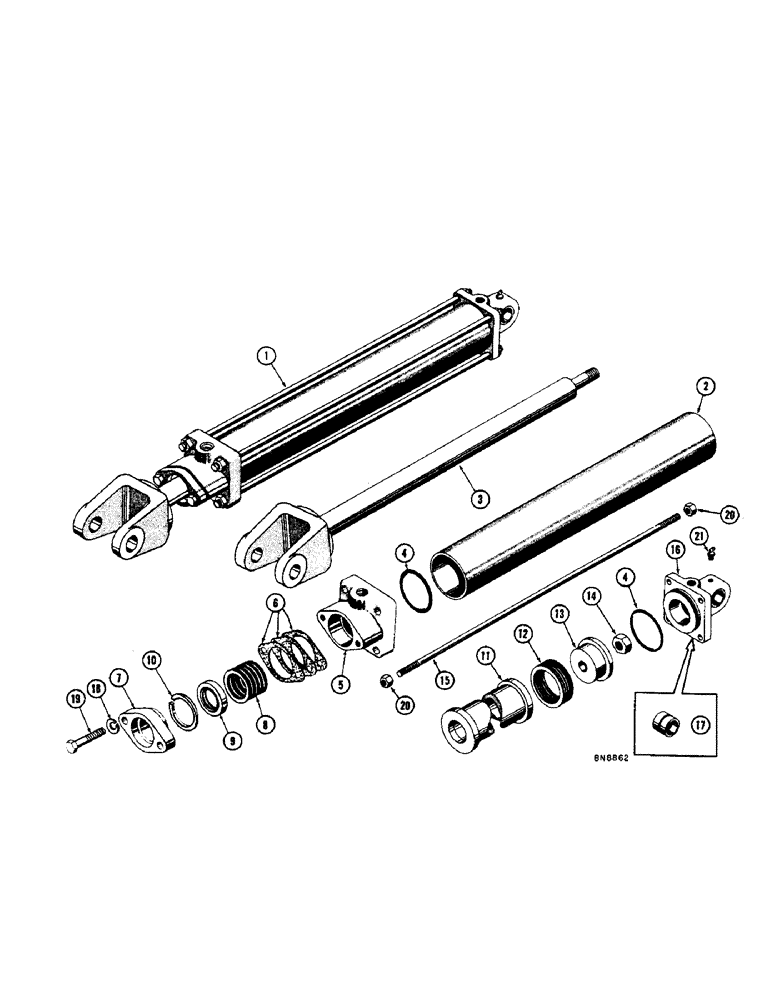

Запчасти Case 800 (234[1]) - 70449 BULLDOZER TILT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

70449

CYLINDER ASS'Y - hydraulic

1шт.

2

70680

TUBE - hydraulic cylinder

1шт.

3

70448

DRAWBAR

ROD & CLEVIS ASS'Y - piston

1шт.

4

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

5

70356

CAP - end

1шт.

6

70364

SHIM

- packing retainer

8шт.

7

70366

RETAINER - packing

1шт.

8

30568

PACKING

- rod

1шт.

9

70363

WIPER SEAL

- wiper

1шт.

10

70742

WASHER

2.50", Int, #250

1шт.

11

70446

PISTON ASS'Y

1шт.

12

17578

PACKING

- piston

1шт.

13

R14107

BLOCK - piston

1шт.

14

R12336

LOCK NUT

- lock (1 - 14 NF)

1шт.

15

71896

ROD - tie

4шт.

16

73236

WASHER

END ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

17

71897

BUSHING

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 mt'g.) Hex, 1/2"-13 x 2", G5

2шт.

20

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

8шт.

21

77081

FITTING

- 45 degree grease, 1/8 NPT

1шт.
